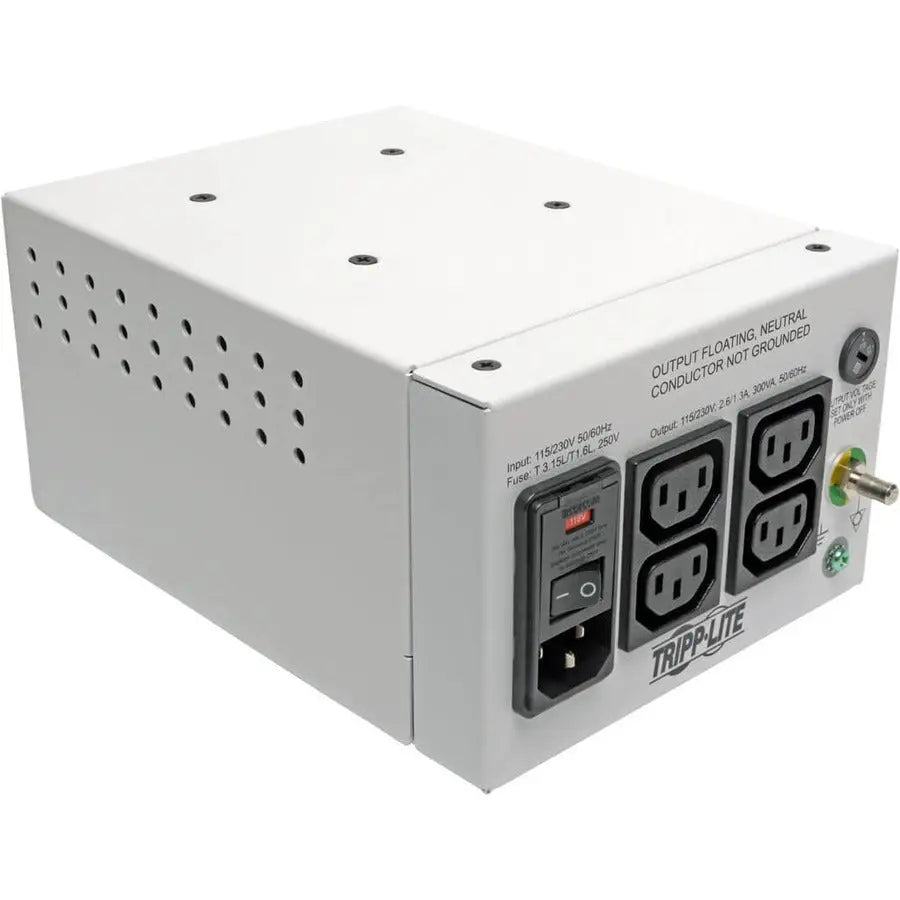

Eaton Tripp Lite Series IS300HGDV Isolation Transformer - Dual Voltage 115/230V, 300W, Medical-Grade Power Protection

Eaton Tripp Lite Series Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer, C14 Inlet, 4 C13 Outlets

The Eaton Tripp Lite Series IS300HGDV Isolation Transformer is designed to safeguard sensitive electronic equipment in medical, industrial, and network environments. This 300-watt transformer supports dual-voltage operation at 115V and 230V, providing flexible voltage configurations to meet various application needs. Its full CAN/ES/IEC/EN 60601-1 medical-grade certification ensures compliance with stringent health and safety standards, making it ideal for patient-care settings and critical electronic systems. The unit features a rugged all-metal cabinet housing, suitable for demanding environments, and connects through four C13 outlets with fuse overload protection for added safety.

Built to deliver continuous line noise filtering, this transformer reduces EMI/RFI interference, ensuring stable power supply and optimal performance of connected devices. Its internal low-impedance isolation transformer provides 100% isolation from the input mains AC line, preventing ground loops and reducing the risk of electrical faults. The Faraday shield minimizes leakage current to less than 50 microamps, significantly lowering the potential for electrical shock and interference. The transformer also offers surge protection rated at 240 joules, effectively suppressing voltage spikes from lightning or utility surges, which could otherwise damage sensitive electronics.

Additional features include automatic shutdown of all outlets during overload conditions, enhancing equipment safety. The unit's filtering capabilities effectively reduce IEEE 587 Category A and B ring wave and combination wave surges to safe levels, protecting connected devices from transient voltage spikes. Included with the transformer are two fuse sets for 115V and 230V operation, an input/output cable selector data sheet, and an owner's manual. This model complies with RoHS environmental standards and is manufactured in Taiwan by Eaton Corporation, ensuring high quality and durability. Ideal for use in hospitals, laboratories, network facilities, and audio/video setups, the IS300HGDV provides reliable, professional-grade power isolation and surge protection for critical electronic systems.

Features:

• Supports dual-voltage configuration at 115V and 230V for versatile application

• Offers complete isolation from input AC mains power to prevent ground loops

• Automatically shuts down all outlets in case of overload for safety

• Provides continuous EMI/RFI line noise filtering to ensure stable operation

• Cumulative leakage current less than 50 microamps to reduce electrical shock risk

• Surge protection rated at 240 joules to guard against voltage spikes

• Constructed with a rugged all-metal cabinet suitable for industrial, medical, and network environments

• Connects via four C13 outlets with fuse overload protection

• Certified to meet CAN/ES/IEC/EN 60601-1 standards for medical-grade applications

• Includes two fuse sets, input/output cable selector data sheet, and owner's manual
