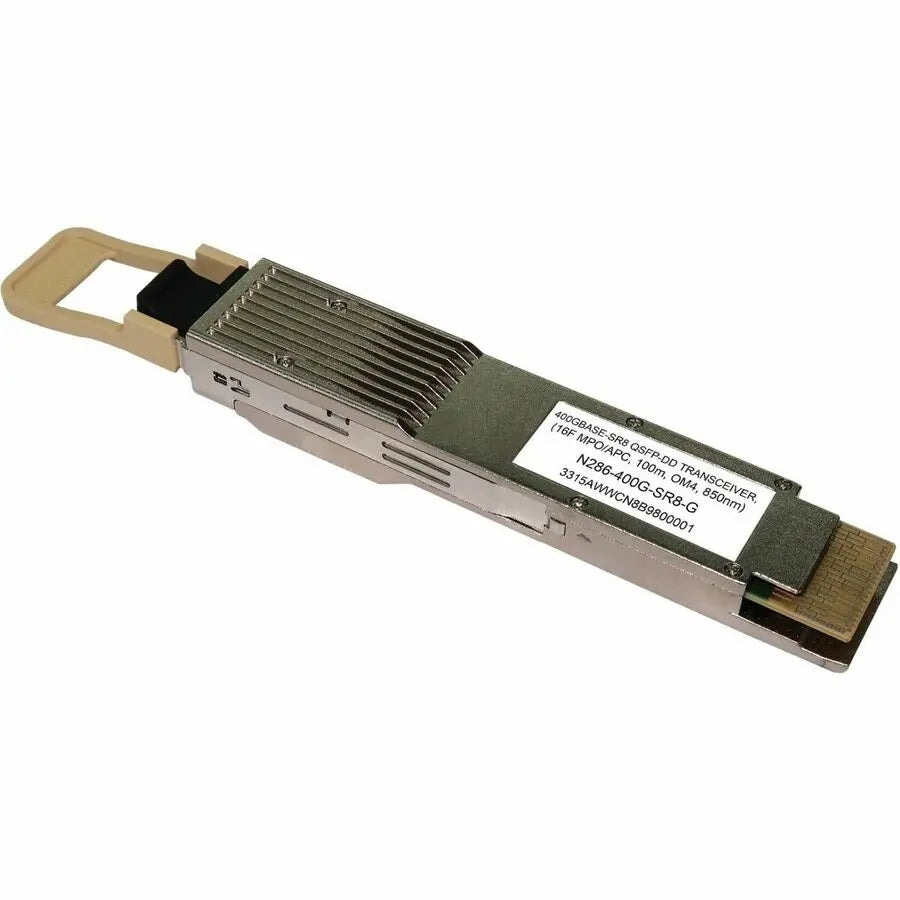

Eaton Tripp Lite Series N286-400G-SR8-G QSFP-DD Transceiver Module for 400G Ethernet Networking

Eaton Tripp Lite Series QSFP-DD Transceiver - 400GBase-SR8, MPO/APC MMF, 400 Gbps, 850 nm, 100 m (328 ft.)

The Eaton Tripp Lite Series N286-400G-SR8-G QSFP-DD transceiver module is designed for high-performance networking applications requiring 400 Gbps data transfer over multimode fiber optic cables. This module seamlessly connects your network switch, router, or server to multimode fiber, supporting a maximum reach of 100 meters (328 feet) at 850 nm wavelength. Its robust zinc housing offers effective electromagnetic interference (EMI) shielding and manages power dissipation efficiently, ensuring reliable operation in demanding data center environments.

Fully compliant with Multi-Source Agreement (MSA) standards, the N286-400G-SR8-G functions equivalently to 400GBASE-SR8 transceiver modules, providing compatibility across a wide range of networking hardware. This compatibility allows you to upgrade or expand your existing infrastructure without concern for interoperability issues. The module's hot-swappable design enables quick installation or removal without interrupting network operations, minimizing downtime and maintenance costs. Its push/pull MPO/APC connector ensures secure and straightforward fiber optic connections, making it suitable for high-density data center setups where space and ease of access are critical.

One of the key features of this transceiver is its support for Digital Diagnostic Monitoring (DDM). DDM provides real-time insights into operating parameters such as temperature, supply voltage, and power levels, allowing for proactive network management and troubleshooting. This capability enhances overall system reliability and helps maintain optimal performance. Constructed in accordance with RoHS environmental standards, the module is environmentally friendly and manufactured in China by Eaton Corporation, a trusted name in network connectivity solutions. Backed by a three-year limited warranty, the N286-400G-SR8-G is a dependable choice for enterprise-grade fiber optic networking needs.

• Provides 400 Gbps throughput up to 100 meters (328 feet) via multimode fiber
• MSA-compliant and fully compatible with 400GBASE-SR8 modules
• Supports 850 nm wavelength with 16-strand MPO/APC connector for high-density fiber connections
• Hot-swappable design allows installation and removal without network downtime
• Includes Digital Diagnostic Monitoring (DDM) for real-time operational parameter tracking

Features:

• QSFP-DD transceiver module 100% compatible with 400GBase-SR8 modules

• Provides 400 Gbps throughput up to 100 meters via multimode fiber cabling

• 16-strand MPO/APC connector supports 400GBase-SR8 signal at 850 nm wavelength

• Hot-swappable interface lets you install and uninstall without shutting down

• Supports DDM for monitoring temperature and other real-time operating parameters
