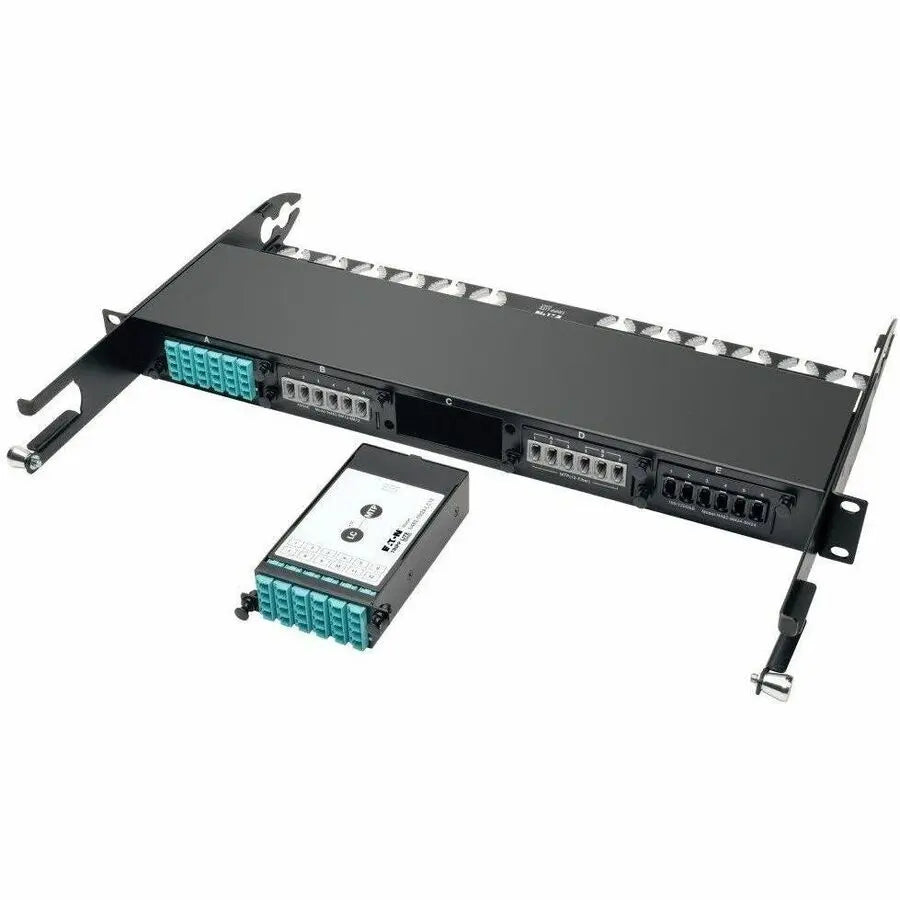

Eaton Tripp Lite Series N482-1M24-LC12 100Gb/120Gb to 10Gb High Density Fiber Breakout Cassette with 24-Fiber MTP/MPO to (x12) LC Connections

Eaton Tripp Lite Series 100Gb/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

The Eaton Tripp Lite Series N482-1M24-LC12 is a high-performance fiber optic breakout cassette designed for advanced data center and enterprise network applications. This module features a 24-Fiber MTP/MPO port compatible with 100GBASE-SR10, CFP, CXP, and parallel optics, providing a reliable solution for high-speed fiber connectivity. Crafted with a heavy-duty steel housing, this cassette ensures durability and long-term performance in demanding environments. Its internal OM4 wiring optimizes signal integrity and reduces insertion loss, which is critical for maintaining high data transmission quality over extended distances. The factory-terminated connectors streamline installation, significantly reducing setup time and labor costs, while push/pull tabs allow for tool-free insertion or removal from compatible high-density fiber enclosures such as the N482-01U and N482-02U. This design guarantees compatibility with Tripp Lite's recommended cabling series, including N820, N821, and N846 cables, ensuring seamless integration into existing infrastructure. Certified to meet IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) standards, the cassette maintains a maximum insertion loss of only 0.35dB, well below the channel loss threshold of 25dB, which helps preserve signal strength and network reliability. Its environmentally friendly RoHS compliance, sleek black finish, and lifetime warranty make it suitable for mission-critical deployments. Ideal for high-density fiber applications, this module supports multi-gigabit data rates and is built for easy installation, minimal maintenance, and robust performance in data centers and enterprise networks. Whether upgrading existing infrastructure or deploying new high-speed links, the N482-1M24-LC12 provides a dependable, standards-compliant fiber optic solution for demanding network environments.

Features:

• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB

• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

• Factory terminated connectors reduce the time and labor required of field connector terminations

• Internal OM4 wiring enhances signal performance and reduces attenuation

• Designed specifically for use with Tripp Lite cables, including N820-, N821-, and N846-Series cables

• Guaranteed compatibility when used with recommended Tripp Lite cabling

• 24-Fiber MTP port optimized for 100GBASE-SR10, CFP, CXP, and parallel optics connectivity

• Breakout cassette with (x12) LC connections to a 24-Fiber MTP/MPO connection (Male with Pins)

• High-density fiber cassette suitable for use with Tripp Lite N482 series high-density fiber enclosures
