SKU:N48K-15M8L60S-B

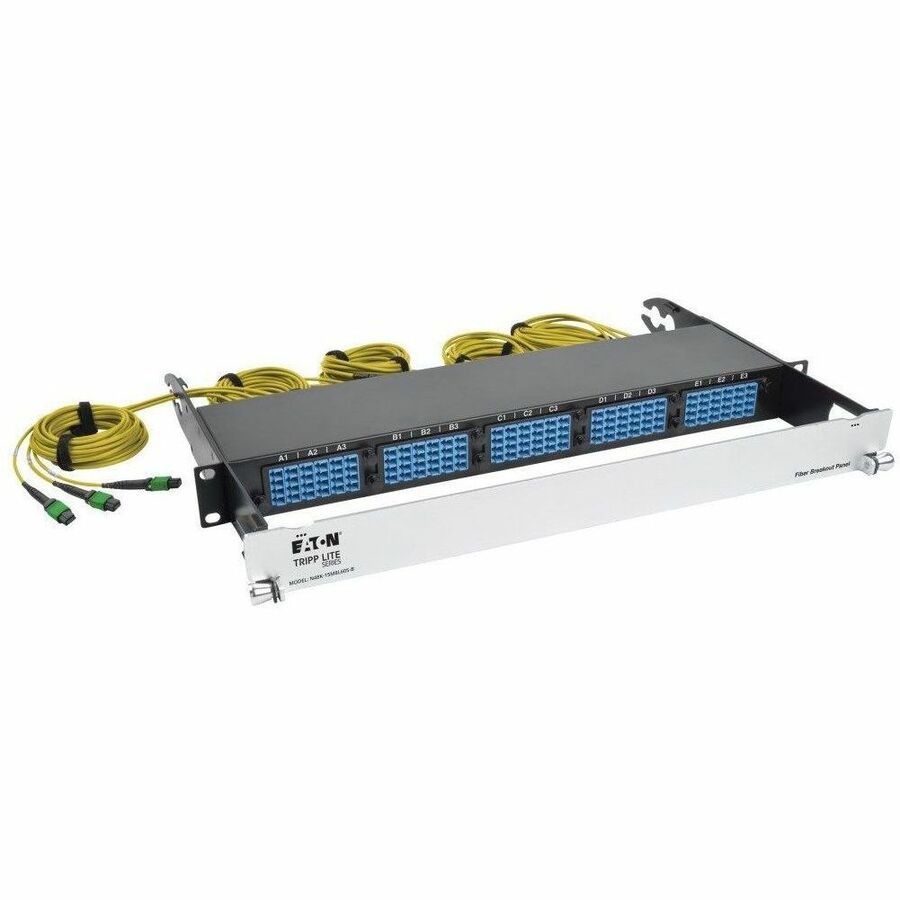

The Eaton Tripp Lite Series N48K-15M8L60S-B 9/125 Breakout Fiber Patch Panel is designed to support high-speed network connections with flexibility for future upgrades to 100G and 400G speeds. This 1U rack-mountable panel features five breakout cassettes, each equipped with 12 LC duplex ports and three built-in two-meter MTP singlemode cables, providing a total of 15 QSFP fiber switch ports that break out into 60 LC ports. The all-fiber design ensures maximum throughput and minimal signal loss, making it suitable for data centers and high-performance network environments. The panel's streamlined 1:1 port mapping and Base8 wiring configuration eliminate dead ports, optimizing space and performance while reducing link attenuation by up to 50 percent. This configuration also simplifies cable deployment and harness mapping, resulting in a cleaner setup and easier maintenance. The hardwired cassettes contribute to a 30-percent improvement in insertion loss, extending duplex link distances and enhancing overall network reliability. The front panel folds down to protect the LC patch cords and provides clear wire mapping by matching each cassette's labeled MTP cables to their respective LC clusters. Inside, writing space allows for custom port labels, and serial numbers enable access to insertion loss data for detailed network documentation. The color-coded yellow singlemode cables facilitate easy identification in crowded switch environments, reducing the risk of misconnection. Compatible with standard 19-inch racks, this patch panel maximizes rack space and link performance in high-density deployments. For further details and specifications, visit the Eaton website. This environmentally friendly, RoHS-compliant unit is manufactured in China and backed by a lifetime warranty, ensuring long-term durability and serviceability in demanding network infrastructures.
Features:
