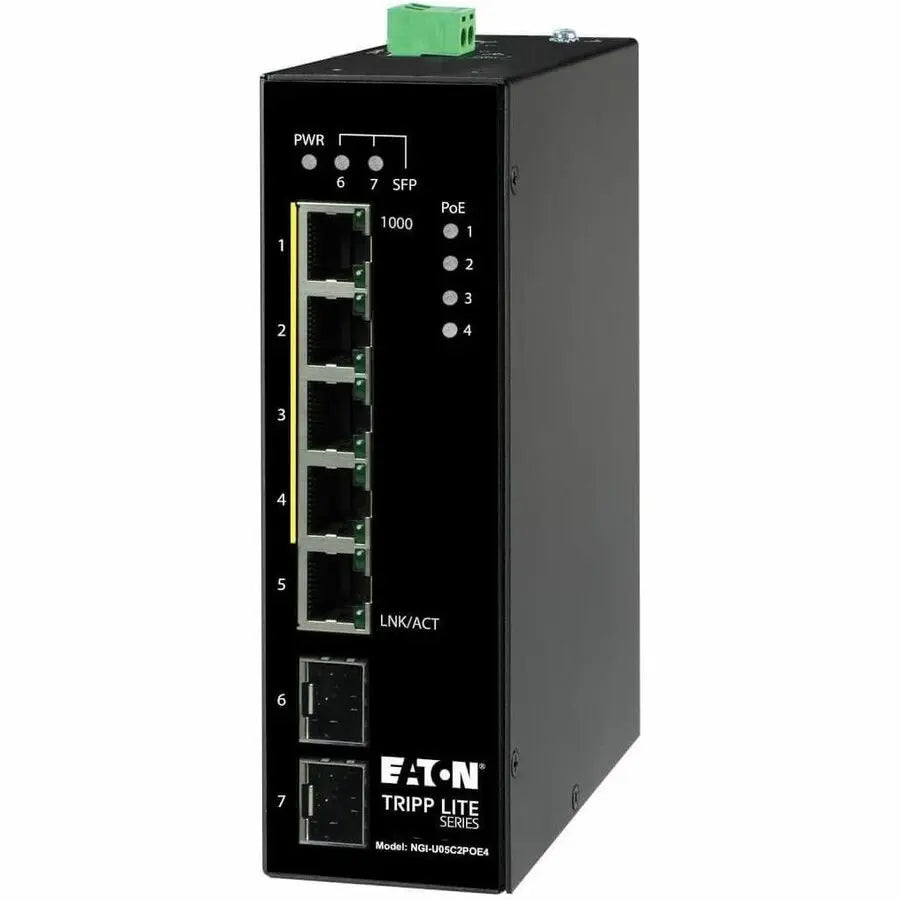

Eaton Tripp Lite Series NGI-U05C2POE4 Industrial 5-Port Gigabit Ethernet Switch with PoE+ and DIN Rail Mounting

Eaton Tripp Lite Series 5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, -10° to 60°C, 2 GbE SFP Slots, DIN Mount, TAA

The Eaton Tripp Lite Series NGI-U05C2POE4 is an industrial-grade unmanaged Ethernet switch designed for demanding environments such as factory floors and warehouse operations. Featuring five auto-negotiating 10/100/1000 Mbps RJ45 ports and two Gigabit SFP slots, this compact switch facilitates efficient network connectivity across your industrial setup. Its design allows seamless integration with existing network infrastructure, supporting high-speed data transfer and flexible uplink options via optical fiber or copper connections.

Equipped with four PoE+ ports, the NGI-U05C2POE4 can deliver up to 30W of power to compatible devices like security cameras, sensors, digital signage, and wireless access points. This eliminates the need for separate power sources and simplifies installation, especially in environments where power outlets are limited. With a total PoE power budget of 120W, it efficiently manages multiple powered devices, ensuring reliable operation without overloading the system.

Built to withstand harsh industrial conditions, this switch features a rugged metal housing that endures vibration, shock, and accidental drops. It operates reliably within an extensive temperature range from 14°F to 140°F, making it suitable for extreme environments. The device supports plug-and-play deployment, requiring minimal setup, thanks to auto-MAC address learning, auto-aging, and MDI/MDI-X crossover detection, which simplifies network configuration. Additionally, IEEE 802.3x flow control ensures smooth data transmission, even during large file transfers.

Designed for flexible installation, the NGI-U05C2POE4 includes a pre-installed DIN rail clip, allowing secure mounting on standard 35mm DIN rails. Its power input via a 2-pin 24-57VDC terminal block ensures uninterrupted operation during power dips or failures. This switch is compliant with the Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule and federal procurement, and it includes a three-year limited warranty for added peace of mind. Whether expanding your industrial network or upgrading existing infrastructure, this Ethernet switch offers reliable, high-performance connectivity with straightforward installation and management.

Features:

• Five auto-negotiable RJ45 and two GbE SFP ports connect devices over a LAN

• Four PoE+ ports deliver up to 30W each with a combined PoE budget of 120W

• Industrial-grade construction supports operation in temperatures from 14°F to 140°F

• Plug-and-play design requires no software or configuration for quick setup

• DIN rail mountable with pre-installed clip for flexible industrial installation

• Compliant with TAA for GSA Schedule and federal procurement eligibility

• Rugged metal housing withstands vibration, shock, and falls

• Supports auto-MDIX crossover detection for simplified network connections

• LED indicators display power status and port activity for easy monitoring

• Includes power input terminal block for reliable operation during power fluctuations
