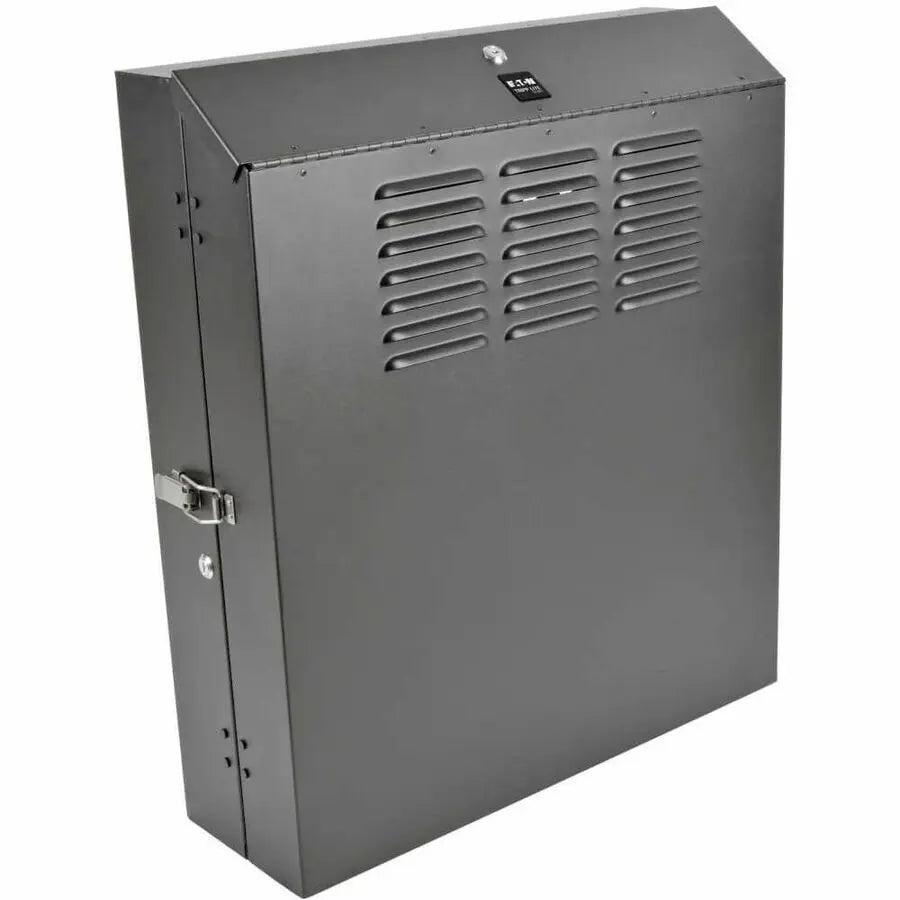

Eaton Tripp Lite Series SmartRack SRWF4U Wall Mount Rack Cabinet - 4U Low-Profile Steel Enclosure

Tripp Lite by Eaton SmartRack 4U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

The Eaton Tripp Lite Series SmartRack SRWF4U is a versatile 4U wall-mount rack cabinet designed to optimize space and enhance security for network equipment. Constructed from heavy-duty steel with a durable black powder-coated finish, this enclosure provides a reliable solution for environments such as wiring closets, retail spaces, classrooms, and back offices where space is limited but organization is essential. Its low-profile design extends only 8 inches from the wall, yet it can house equipment up to 20 inches deep, including network switches and patch panels. The cabinet's thoughtful design includes a slide-out 2U mounting bracket at the top, facilitating easy installation and maintenance of patch panels up to 2.5 inches deep. The maximum load capacity of 150 pounds ensures it can support most standard networking gear securely.

Security is a key feature of the SRWF4U, with a lockable front door that can be opened from either side to suit installation needs. The top panel and front door locks help prevent tampering or theft, and the front latch accommodates a user-supplied padlock for added security. Ventilation is incorporated through vented panels that promote airflow, preventing overheating during operation. Cable management is simplified with accessible ports at the top and bottom, featuring removable covers for easy routing of cables. The enclosure ships fully assembled, enabling quick installation, and includes threaded mounting holes compatible with M6 or 12-24 hardware. With mounting holes spaced 16 inches apart, it aligns with standard wall stud placements, making installation straightforward.

Designed to meet industry standards, including PCI DSS compliance, the SRWF4U offers both physical security and media protection. It features adjustable rails that can be repositioned to fit different equipment depths, and rack spaces are clearly marked for easy reference. Its environmentally friendly RoHS compliance underscores its dedication to sustainable manufacturing. With a weight of approximately 29 pounds, this steel enclosure is built for durability, security, and ease of use, making it an ideal choice for secure network setup in space-constrained environments.

Features:

• Ships fully assembled for quick installation

• Includes additional 2U of space for patch panels

• Secures 4U of 19-inch rack equipment up to 20 inches deep

• Locking steel cabinet vented to keep equipment cool

• Maximum load capacity of 150 pounds

• Low-profile wall mount design extends only 8 inches from the wall

• Reversible front door for flexible opening options

• Secure locks with padlock compatibility for enhanced security

• Vented panels promote optimal airflow

• Cable routing ports at top and bottom with removable covers

• Adjustable mounting rails support M6 or 12-24 hardware

• Standard 16-inch wall stud mounting spacing

• Constructed from durable steel with a black powder-coated finish

• Meets PCI DSS security standards

• Environmentally compliant with RoHS

• Includes mounting hardware and keys for security
