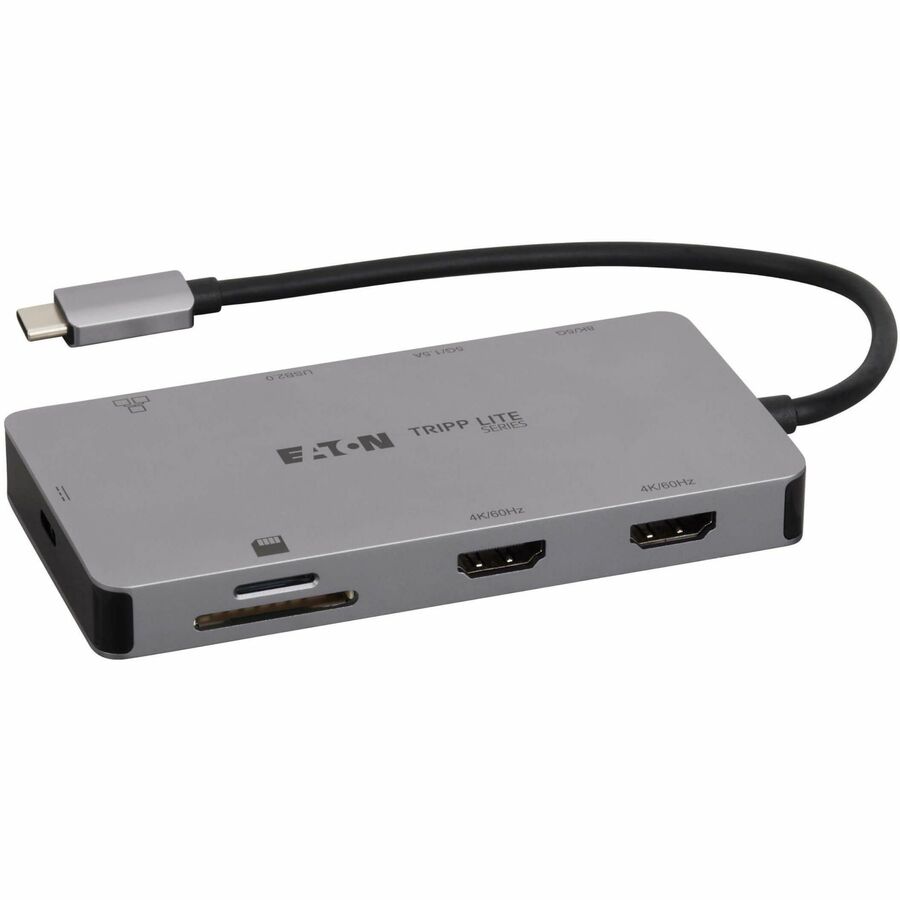

Eaton Tripp Lite Series U442-DOCK8G-GG2 USB-C Travel Docking Station with Triple Display Support

Tripp Lite series U442-DOCK8G-GG2 Docking Station

Expand Your USB-C Laptop into a Multi-Display Workstation

The Eaton Tripp Lite Series U442-DOCK8G-GG2 USB-C docking station adds versatile connectivity to compatible MacBook Pro, Windows laptop, Chromebook, smartphone and PC devices with a USB-C or Thunderbolt 3, 4 or 5 port. This travel-friendly dock supports multiple displays, USB peripherals, wired networking, memory cards and Power Delivery charging through one compact connection. It is well suited for home offices, business travel, classrooms and work-from-anywhere setups that require flexible connectivity without additional software.

High-Resolution Video for Triple-Display Productivity

When connected to a host device supporting USB DisplayPort Alternate Mode 1.4 and Display Stream Compression, the U442-DOCK8G-GG2 can deliver 4K video at 60 Hz through its USB-C display output and 4K video at 30 Hz through two HDMI outputs simultaneously. The USB-C video port supports up to 8K at 30 Hz or 4K at 144 Hz when used independently. All video ports support 4:4:4 chroma subsampling, 36-bit Deep Color and HDCP 2.3 for detailed images and digital content compatibility. Video capabilities depend on the host device, operating system and connected displays.

Flexible Expansion, Charging and Networking

Two USB-A ports connect keyboards, mice, flash drives, printers and other accessories, with one supporting USB 3.2 Gen 1 transfer rates up to 5 Gbps and the other supporting USB 2.0 speeds up to 480 Mbps. The USB-C port also supports USB 3.2 Gen 1 data when not being used for video. The USB-C Power Delivery port accepts up to 100W of power input from a compatible AC adapter to charge the connected host device, while Fast Role Swap helps maintain the connection when power is removed. An RJ45 port provides wired Gigabit Ethernet access for stable network performance, and dedicated SD/MMC and MicroSD card slots allow simultaneous memory card access. Plug-and-play operation requires no drivers or external dock power, and the dock is backed by a 3-year limited warranty.

Features:

• Supports up to 8K video through USB-C and dual 4K video through HDMI for expanded multi-monitor workspaces
• USB-C Power Delivery supports up to 100W of power input for charging a compatible host device
• USB-A ports connect flash drives, keyboards, mice, printers and other USB peripherals
• RJ45 Gigabit Ethernet port provides a stable wired network connection when Wi-Fi is unavailable or unreliable
• SD/MMC and MicroSD card slots support convenient external memory access and simultaneous card use
• Plug-and-play operation requires no additional software or external dock power
• Compatible with devices featuring USB-C or Thunderbolt 3, 4 or 5 ports, subject to host capabilities
• Backed by a 3-year limited warranty
