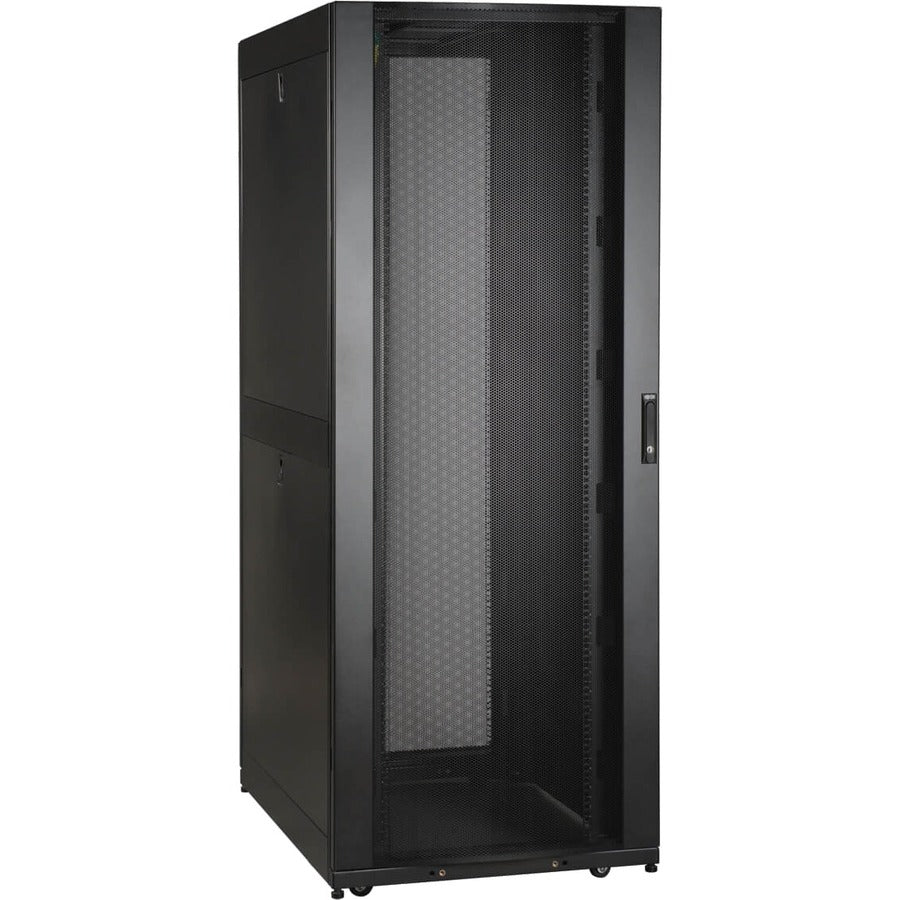

Eaton Tripp Lite SmartRack SR45UBWD 45U Wide Server Rack Enclosure with Doors and Side Panels

Tripp Lite by Eaton 45U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with doors & side panels

The Eaton Tripp Lite SmartRack SR45UBWD is a wide 45U server rack enclosure designed for high-density data center, server room, and network equipment installations. Its extra-wide cabinet design provides additional side space for cable management and power distribution unit mounting, helping keep cables and PDUs away from equipment airflow paths for improved cooling. The enclosure supports standard 19-inch rack equipment and offers a 3,000 lb stationary load capacity or a 2,250 lb rolling load capacity.

Built for efficient thermal management, the SR45UBWD provides extensive front-to-rear ventilation to meet or exceed server manufacturer requirements. The vented top panel supports convection-based heat removal and includes cable-routing ports for simplified installation. The top panel can be removed without tools, while the open bottom provides additional cable access. The enclosure is compatible with hot-aisle/cold-aisle layouts and includes integrated baying tabs for joining multiple cabinets in organized equipment rows.

Equipment security and service access are supported by locking, removable, reversible front and rear doors and locking, removable half-size side panels. The split rear-door design allows the enclosure to be positioned closer to a wall while maintaining access for service. Preinstalled casters assist with minor positioning adjustments, and integrated levelers help secure the cabinet in its final location. All enclosure components are grounded to the frame, with front and rear grounding points and quick-release ground wires on the doors.

The SR45UBWD ships fully assembled and includes mounting hardware, M6 screws, cage nuts, washers, keys, side panel locks, and a stabilizing bracket. It is RoHS compliant and backed by a 5-year limited warranty. As part of the SmartRack family, this Eaton Tripp Lite Series enclosure is compatible with a broad selection of rackmount accessories for flexible infrastructure deployment.

Features:

• Locking, removable, reversible front and rear doors
• Locking, removable half-size side panels
• Supports up to 3,000 lb stationary or 2,250 lb rolling equipment load
• Ships fully assembled for faster deployment
• Extensive front-to-rear ventilation for high-density equipment
• Wide cabinet design provides additional space for cable management and PDU mounting
• Vented, tool-free removable top panel with cable-routing ports
• Open-bottom design simplifies cable access
• Four interior vertical mounting posts with unthreaded square-hole openings
• Integrated baying tabs support multi-cabinet row configurations
• Compatible with hot-aisle/cold-aisle data center layouts
• Split rear doors support placement closer to walls
• Preinstalled casters and levelers assist with positioning and stabilization
• Grounding points and quick-release door ground wires support facility grounding
• Compatible with SmartRack rackmount accessories
• RoHS compliant with a 5-year limited warranty
