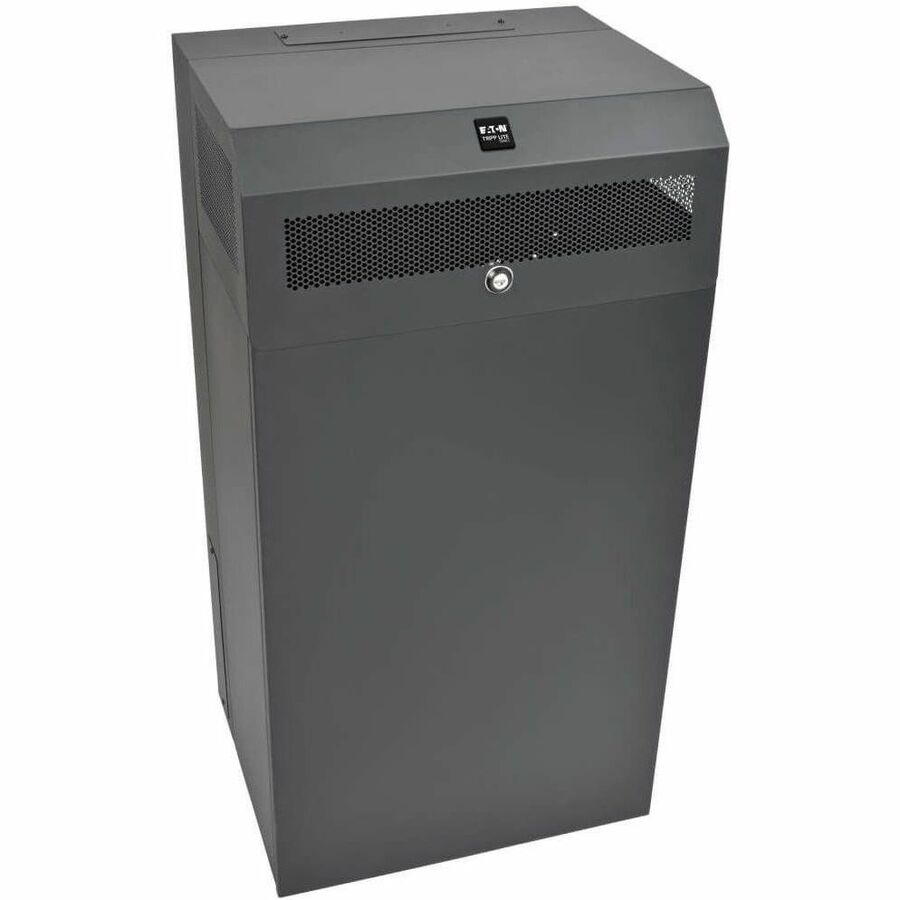

Eaton Tripp Lite SmartRack SRWF12U38 12U Wall-Mount Server-Depth Rack Enclosure

Tripp Lite by Eaton SmartRack 12U Low-Profile Vertical-Mount Wall-Mount Small Server Rack Enclosure

The Eaton Tripp Lite SmartRack SRWF12U38 is a secure, space-saving wall-mount rack enclosure designed to organize and protect EIA-standard 19-inch network, server, power, and telecommunications equipment. Its low-profile vertical-mount design is well suited for network closets, retail locations, classrooms, back offices, two-post racks, and other areas where floor space is limited. The heavy-duty steel cabinet features a durable black powder-coated finish and supports a maximum equipment load of 400 pounds.
The SRWF12U38 provides 8U of primary rack space for equipment such as 1U servers, UPS systems, battery packs, and network switches, plus an additional 4U mounting area at the top for patch panels. The enclosure accommodates equipment up to 35 inches deep while extending only 16 inches from the wall. Threaded mounting holes support 12-24 equipment mounting, and clearly marked rack spaces simplify installation and equipment placement.
Designed for convenient maintenance and secure operation, the SmartRack SRWF12U38 includes a removable top cover and front panel for quick equipment access. The locking cover helps prevent unauthorized access, tampering, damage, and theft. Vented steel construction promotes airflow to help keep installed equipment operating at suitable temperatures, while removable cable-port covers on the top, bottom, and sides provide flexible cable routing options. The modular cabinet can be disassembled and assembled efficiently, and wall-mounting holes are spaced to align with standard 16-inch wall studs when installed with user-supplied hardware.
The Eaton Tripp Lite SmartRack SRWF12U38 also supports physical equipment and media security requirements associated with PCI DSS compliance. The enclosure includes two keys and an owner’s manual, and its RoHS-compliant construction supports environmentally responsible deployments. With its combination of secure storage, efficient cable management, flexible installation, and server-depth capacity, this 12U rack cabinet is a practical choice for organizing critical equipment in compact commercial and professional environments.

Features:

• 8U of primary rack space for EIA-standard 19-inch equipment

• Additional 4U mounting space for patch panels

• Supports equipment up to 35 inches deep

• Maximum load capacity of 400 pounds

• Low-profile vertical wall-mount design for space-constrained installations

• Locking steel cabinet helps protect equipment from tampering and theft

• Vented construction promotes airflow around installed equipment

• Removable top cover and front panel provide convenient equipment access

• Cable-routing ports with removable covers are located on the top, bottom, and sides

• Modular design supports efficient disassembly and assembly

• Wall-mounting holes align with standard 16-inch wall stud placement

• Threaded mounting holes support 12-24 equipment installation

• Rack spaces are marked for easier installation and reference

• Supports physical security requirements associated with PCI DSS compliance

• RoHS-compliant construction with a durable black steel finish
