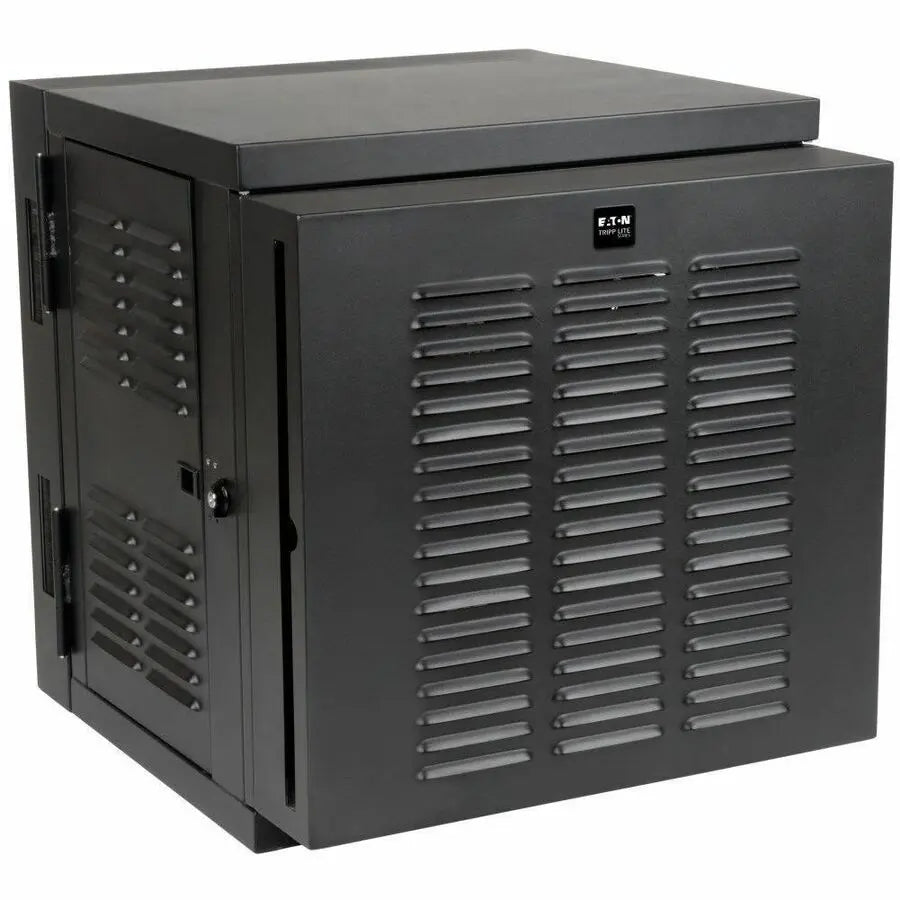

Eaton Tripp Lite SRWX12USNEMA SmartRack 12U Wall-Mount Enclosure Cabinet with IP54 Protection

Eaton Tripp Lite Series SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments, Hinged Back, 230V

The Eaton Tripp Lite SRWX12USNEMA SmartRack enclosure offers a robust solution for housing standard 19-inch rack equipment in challenging environments such as factories, utility plants, and warehouses. Crafted from heavy-duty steel with a durable black powder-coated finish, this wall-mountable cabinet supports up to 200 pounds, providing a secure and organized space for your critical network and equipment components. Its compact 12U size and adjustable vertical rails accommodate equipment up to 20.5 inches deep, making it suitable for switches, patch panels, and other rack-mounted devices.

Designed with environmental protection in mind, the SRWX12USNEMA features an IP54 (NEMA 12) rating, safeguarding sensitive equipment against dirt, dust, lint, oil, drips, and splashes. Built-in air filters, louvered vents on the front door and side panels, sealed gasket around the door frames, and brush strips around cable access points work in concert to prevent contaminants from entering the enclosure. The removable air filters can be replaced with standard furnace filters, ensuring easy maintenance. Four high-performance intake fans integrated into the front door actively pull filtered air through the cabinet, maintaining optimal internal temperatures and preventing overheating of equipment.

The enclosure's hinged design allows it to swing away from the wall for easy back-door access during installation and maintenance. Reversible doors can open either left or right, accommodating various installation preferences. Secure locking mechanisms on doors and side panels help prevent tampering, theft, or damage. Convenient ports on the back door facilitate cable routing, with removable covers and protective brush strips ensuring dust and moisture resistance. Fully assembled upon delivery, the cabinet simplifies installation with standard wall-mounting holes spaced for typical wall studs, and the numbered rack spaces streamline equipment setup. The enclosure's sturdy construction and thoughtful features make it ideal for industrial, utility, and transportation settings where equipment protection and accessibility are critical.

Features:

• Locking steel cabinet with built-in ventilation fans

• Secures 12U of 19-inch rack equipment up to 20.5 inches deep

• Swings away from wall on hinge for easy back-door access

• Maximum load capacity of 200 pounds

• Protects against dirt, dust, drips, and splashes

• IP54 (NEMA 12) rated for environmental protection

• Removable air filter can be replaced with standard furnace filters

• Built-in high-performance intake fans with C13 outlet for power connections

• Sealed cable ports for dust and moisture resistance

• Reversible doors for flexible installation

• Fully assembled for quick wall-mount installation

• Adjustable vertical mounting rails support equipment up to 20.5 inches deep

• Supports standard square-hole mounting with numbered rack spaces
