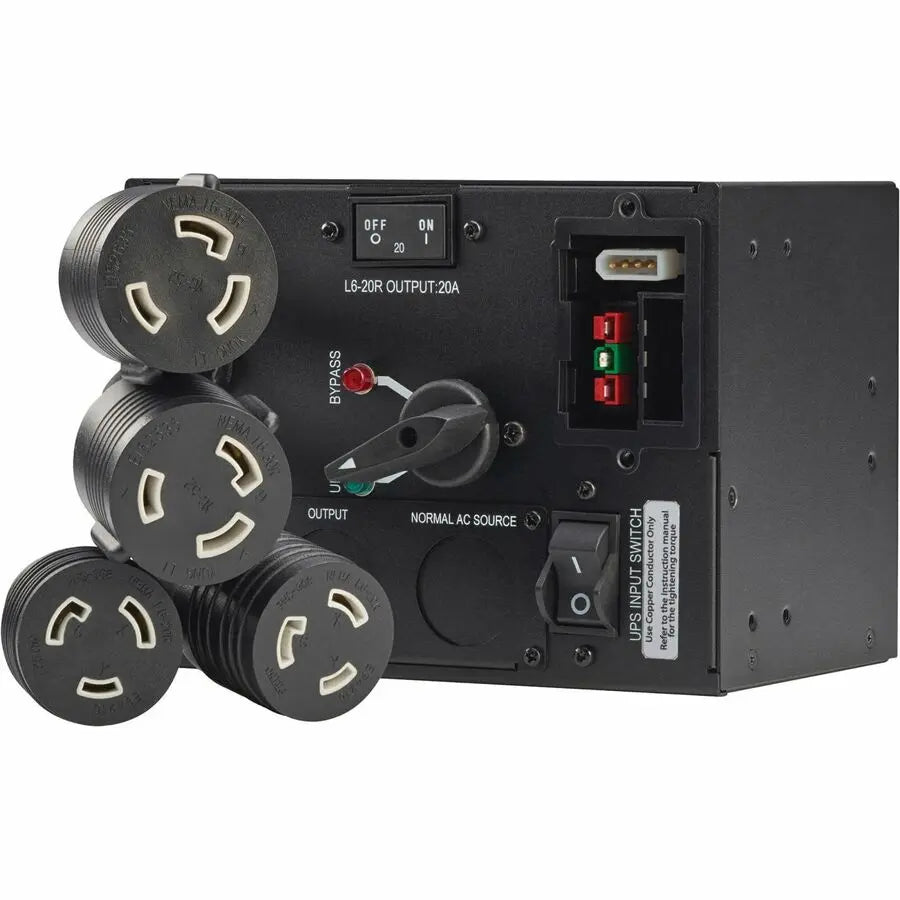

Eaton Tripp Lite SUPDMBP6K Bypass Panel for SmartOnline UPS Systems

Eaton Tripp Lite Series SmartOnline Maintenance Bypass for Select 5kVA to 6kVA SmartOnline UPS Systems, 2 L6-30R and 2 L6-20R Outlets, 0U, TAA

The Eaton Tripp Lite SUPDMBP6K Bypass Panel is designed specifically for select SmartOnline uninterruptible power supply (UPS) systems, including models SU5000RT, SU5000RTF, SU6000RT, and SU6000RTF. This essential accessory allows for seamless maintenance by isolating the UPS from connected loads without shutting down connected equipment, thereby preventing costly downtime and ensuring continuous operation. The bypass panel features a robust design that supports 0U mounting, saving valuable rack space while promoting optimal airflow in crowded server racks. Its versatile mounting options include rackmount, tower, and wall-mount configurations, making it adaptable to various installation environments. The SUPDMBP6K comes with an input/output cable set, cable glands, mounting hardware, and a quick start guide, streamlining installation and setup processes.

Equipped with two NEMA L6-20R and two NEMA L6-30R outlets, this bypass panel facilitates load connections with ease. The AC input connection options include a terminal block for hardwire connections or a NEMA L6-30P cord (a 10-foot cord is included with compatible UPS units), providing flexibility for different power setups. Its environmental design adheres to RoHS standards, ensuring environmentally friendly operation. With a weight of approximately 12.15 pounds, the SUPDMBP6K is a durable and reliable component manufactured in Taiwan by Eaton Corporation, under the trusted Tripp Lite series brand.

This bypass panel not only enhances maintenance efficiency but also helps maintain optimal airflow and rack organization. It is backed by a two-year limited warranty, reflecting Eaton’s commitment to quality and customer support. Whether used in data centers, server rooms, or other critical IT environments, the SUPDMBP6K provides a practical solution for managing power infrastructure with minimal disruption.

Features:

• Isolates UPS from connected loads for maintenance without powering down equipment

• Designed for 0U mounting to save space and increase airflow in a crowded rack

• Compatible with SmartOnline SU5000RT and SU6000RT Series UPS systems

• Includes input/output UPS cable set, cable glands, mounting hardware, and quick start guide

• Supports dual NEMA L6-20R and NEMA L6-30R outlets for load connection

• Flexible AC input options with terminal block or NEMA L6-30P cord (included with compatible units)

• Built with environmentally friendly RoHS compliance standards

• Manufactured in Taiwan with durable construction and a 2-year limited warranty
