Echonautics BT70D600CW-00 600w 50/200kHz 0d Tilted Element Bronze TH

Echonautics BT70D600CW-00: Advanced Ultrasonic Transducer Technology

Echonautics BT70D600CW-00 600w 50/200kHz 0d Tilted Element Bronze TH

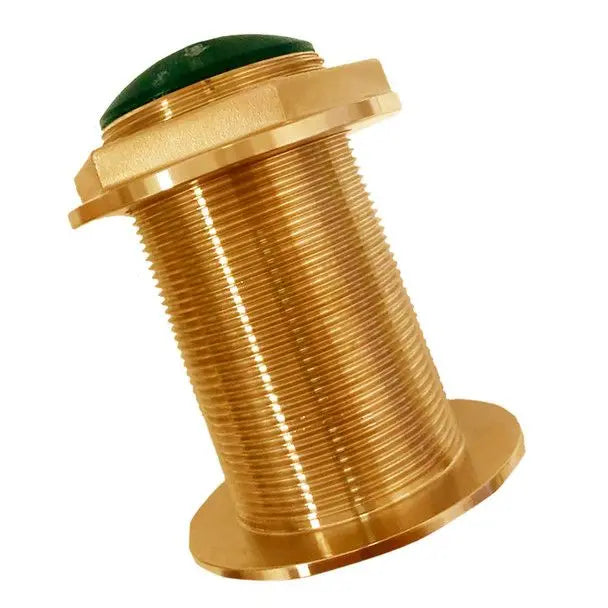

Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 0 degree Tilted Element

Model: BT70D600-00

Get target detail in shallow water and good deep-water botoom tracking.

this series is designed to minimiz drag and to perform at high speeds.

Specifications

Function
Depth and temperature

Frequency
50/200kHz

Mount type
Thru-hull

Tilt/deadrise
0° tilte for 0° to 7° hull deadrises

Material
Bronze

RMS Power
600 watts

Beamwidth
42° / 11° -3db

Depth
Max@50kHz = 1200ft
Max at 200kHz = 700ft

Temp sensor
NTC

Acoustic window
Urethane

Weight
54oz

Cable length
27ft

Hole diameter
2.38"

Overview of Echonautics BT70D600CW-00 Features

The Echonautics BT70D600CW-00 ultrasonic transducer is engineered for efficiency and precision. This high-performance device operates at dual frequencies of 50kHz and 200kHz, delivering up to 600 watts of power. It includes a unique 0-degree tilted element design housed in a robust bronze casing, ensuring durability and prolonged service life. The transducer is ideal for applications requiring reliable ultrasonic energy transmission with minimal signal loss and consistent output, making it a top choice for industrial ultrasonic cleaning and other specialized uses.

Performance Benefits of Echonautics Ultrasonic Technology

With the Echonautics BT70D600CW-00, users gain the advantage of versatile frequency operation, allowing effective cleaning or processing at multiple depths and materials. The 0-degree tilted element promotes accurate ultrasonic wave propagation, improving energy transfer efficiency. The bronze housing enhances corrosion resistance and mechanical strength, ensuring the transducer withstands demanding environments. This combination of power, frequency range, and material design offers superior performance compared to conventional transducers, making it an essential component in advanced ultrasonic systems.

Application and Durability of the Echonautics BT70D600CW-00

The Echonautics BT70D600CW-00 is widely used in industrial cleaning, medical device sterilization, and precision manufacturing due to its robust build and reliable performance. Its bronze construction not only resists wear but also provides excellent acoustic properties for transmitting ultrasonic energy without degradation. The 600w output power enables effective treatment of both delicate and heavy-duty items, supporting a range of industrial applications. Its design reduces the risk of mechanical failure and extends operational life, making it a cost-effective solution for long-term ultrasonic applications.
