SKU:ECHBT70MA60000
Echonautics BT70MA600-00 600w 80-130kHz Medium CHIRP 0d Tilted Element Bronze TH
Echonautics BT70MA600 80-130kHz Medium CHIRP 600watts 0° Tilted Element
Model: BT70MA600-00

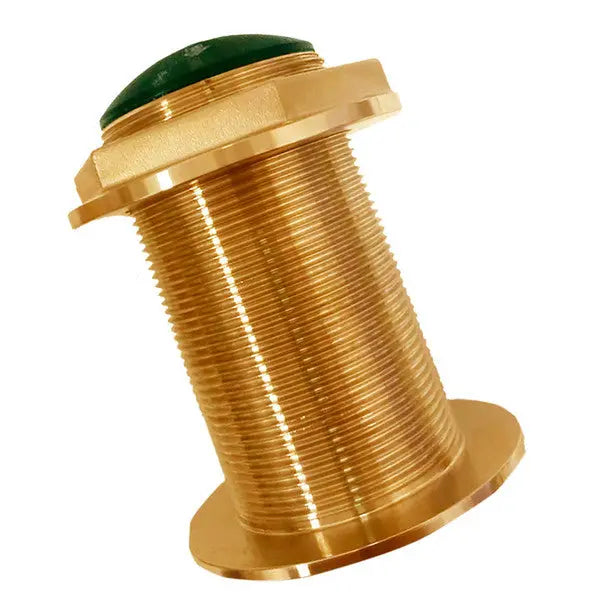

A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.
Designed to minimize drag and to perform at high speeds
Specifications
Function
Depth and Temperature
frequency
CHIRP 80-130kHz
Mount style
Thru Hull
Tilt/deadrise
0° tilted element ; for 0° to 7° hull deadrise
Material
Bronze
RMS Power
600 watts
Beamwidth
24° to 17° @3db
Depth
max 900ft
Temperature sensor
NTC
Accoustic window
Urethane
Cable length
27ft
Hole diameter
2.38 in
The Echonautics BT70MA600-00 delivers a robust 600w power output, ensuring strong and reliable signal transmission underwater. This capability enhances sonar clarity and range, making it an excellent choice for diverse marine environments. Whether you’re conducting detailed seabed mapping or general underwater surveillance, the 600w output maximizes your sonar efficiency with consistent, high-quality performance.
The 80-130kHz medium CHIRP frequency range of the Echonautics sonar transducer offers remarkable versatility. This frequency band provides an optimal balance between depth penetration and resolution, ideal for both shallow and deeper waters. It supports detailed target detection and identification, making it suitable for a variety of applications from commercial fishing to scientific research.
Constructed with a bronze tilted element, the Echonautics BT70MA600-00 is built for durability and long-term use in harsh marine conditions. The tilted element design improves signal directionality and reduces noise interference, enhancing overall sonar accuracy. This material choice also provides excellent corrosion resistance, ensuring the transducer maintains peak performance over time.
