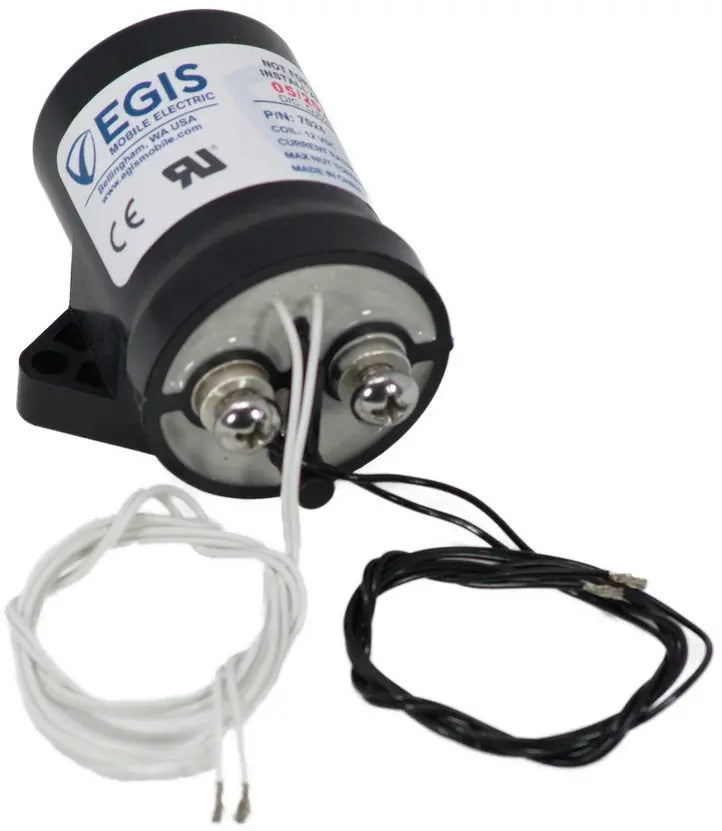

EGIS 100A 12 Contactor with Auxiliary Contacts Side Mount

EGIS 100A 12 Contactor with Auxiliary Contacts Side Mount

• SEALED ENCLOSURE: Sealed against dust and moisture penetration. High temp rated for all installation locations.


• 18-8 STAINLESS STEEL SELF LOCKING HARDWARE: Resists corrosion and ensure long term connection reliability with premium hardware.


• EASY MOUNTING: Reinforced mounting holes provide secure installation and easy attachment for the installer.


• REMOTE STATUS SUPPORT: Optional auxiliary contacts that support remote status indication.

Ignition Protected safe for installation in closed compartments with potential explosive gases

High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V

High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)

Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.

4 Year Industry Leading Warranty

CONTINUOUS CURRENT (AMPS)
100

OPERATION CONTROL VOLTAGE
8-16 Vdc

INGRESS PROTECTION
IP67 / IP69K

IGNITION PROTECTION
ISO-8846 / UL 1500

MIN OPERATE TEMP (DEG C)
-40

MAX OPERATE TEMP (DEG C)
85
