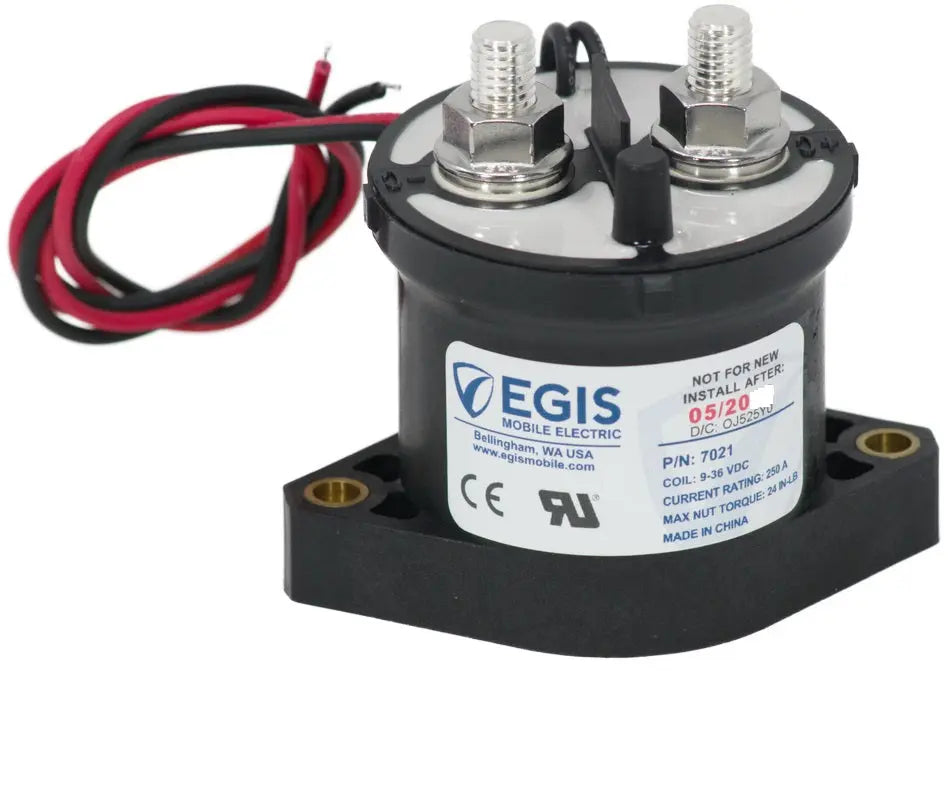

EGIS 250A 12/24v Contactor

EGIS 250A 12/24v Contactor

• Sealed Enclosure: Hermetically sealed against dust and moisture penetration. High temp rated for all installation locations.


• 18-8 Stainless Steel Self Locking Hardware: Resists corrosion and ensure long term connection reliability with premium hardware.


• High Interrupt Capability: Safely able to open in a locked starter situation up to 1,500 A @14 Vdc.


• Easy Mounting: Reinforced mounting holes provide secure installation and easy attachment for the installer.

Ignition Protected safe for installation in closed compartments with potential explosive gases

High Electrical Switching Endurance delivers 6,000 cycles at 250A / 450V, 100,000 cycles at 250A / 14V

High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc)

Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.

4 Year Industry Leading Warranty

CONTINUOUS CURRENT (AMPS)
250/500

OPERATION CONTROL VOLTAGE
9-36 Vdc

INGRESS PROTECTION
IP67 / IP69K

IGNITION PROTECTION
ISO-8846 / UL 1500

MIN OPERATE TEMP (DEG C)
-40

MAX OPERATE TEMP (DEG C)
85
