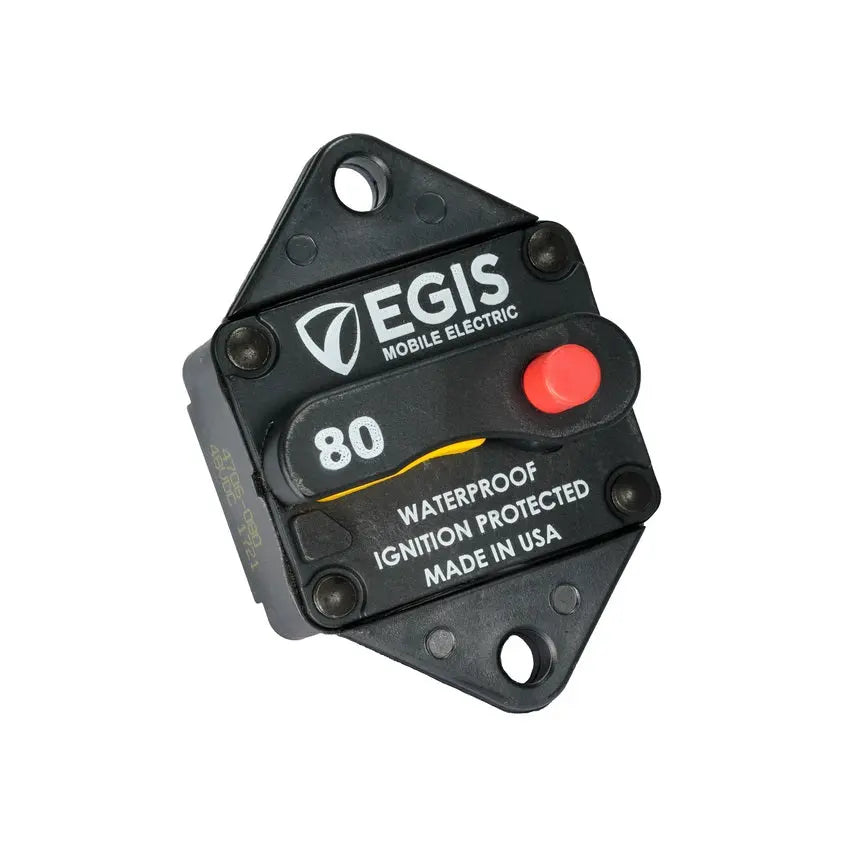

EGIS 285-Series 80 Amp Circuit Breaker Panel Mount

EGIS 285-Series 80 Amp Circuit Breaker Panel Mount

• ON/OFF HIGH VISIBILITY CONTROLS Sealed against dust and moisture penetration. High temp rated for all installation locations.


• PANEL MOUNT FLANGE Provides Rear / Front panel installation options


• STAINLESS HARDWARE / SERRATED FLANGE NUTS Corrosion and vibration resistant for harsh environment applications.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

CONTINUOUS CURRENT (AMPS)
80

Max Voltage (vdc)
48

cycling ENDURANCE
6,000

Interrupt Current @ 16 Vdc (Amps)
5,000

INTERRUPT CURRENT @ 28 VDC (AMPS)
3,000

ingress protection rating
IP67
