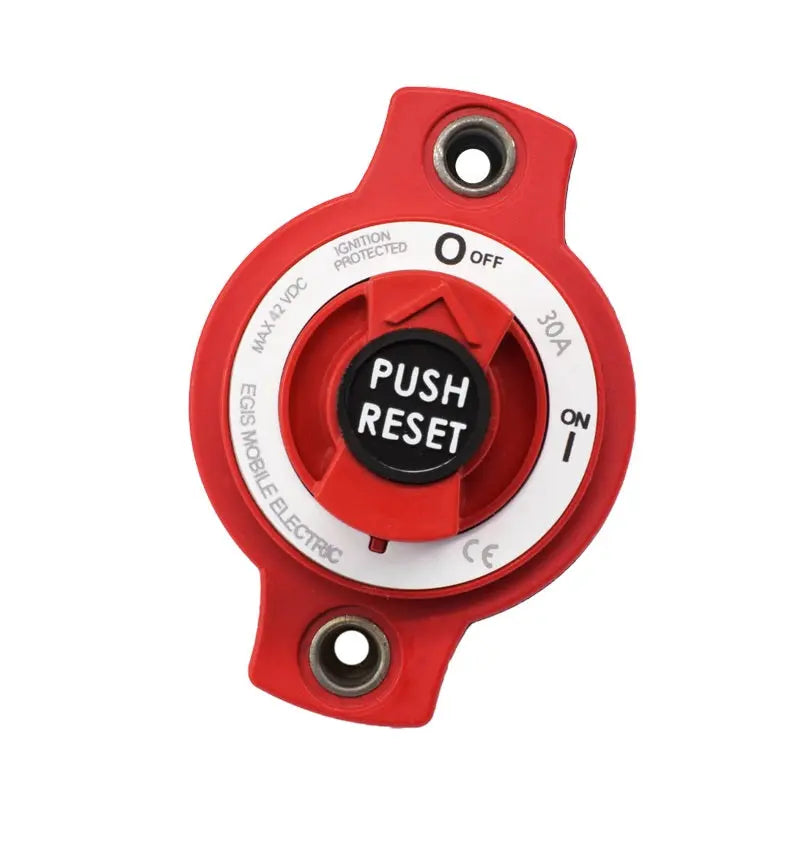

EGIS 30A Mini Breaker Disconnect Switch Panel Mount

EGIS 30A Mini Breaker Disconnect Switch Panel Mount

• Easy ON/OFF Rotary Switch Easy to operate and visually recognize switch position.


• Stainless Steel Self- Locking Hardware Corrosion and vibration resistant for harsh environment applications.


• Weatherproof Construction Sealed against dust and moisture penetration. High temp rated for all installation locations.


• Compact Size Fit more circuit switching / protection on a smaller panel!


• Made in the USA of high quality components.


• Ignition Protected Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

42 Vdc Rating: easily supports 12, 24 and 36Vdc applications. Ideal for trolling motor switching applications.

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

CONTINUOUS CURRENT (AMPS)
30

MAX VOLTAGE (VDC)
42

INTERRUPT CURRENT @ 14 VDC (AMPS)
3,000

Cycle Switching Endurance
4,000

INGRESS PROTECTION RATING
IP66
