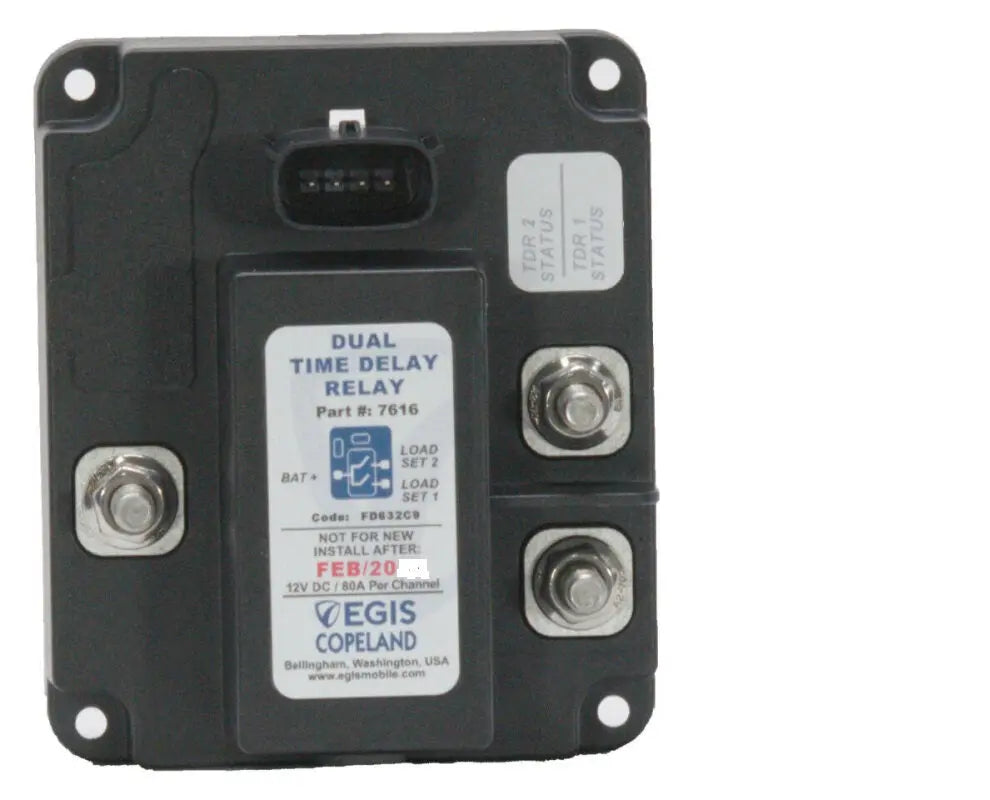

EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v

EGIS 7616 TDR Series Dual Output Time Delay Relay Features and Benefits

EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v

Model: 7616

• TOP SIDE DIP SWITCHES: Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
• STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
• INTEGRAL I/O CONNECTOR: Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
• STANDARD AND OPTIONAL HARNESSES: Mating plug with 2 feet of ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths available
• EASY INTEGRATION WITH CT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
• EASY INTEGRATION WITH RT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
• LED DIAGNOSTICS: Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.

Specifications

Maximum current
Continuous: 80 Amps DC per Output (160 A Total) Intermittent: 120 Amps DC (5 Minutes) per Output

Off State Current Draw
1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by)

Operating Specifications
Voltage: 12 Vdc Nominal (8 - 18 Vdc) Temperature: -40 to 85 Deg C

Product Warranty
4 Years from date of manufacturer

Time Delay Options
5 Sec through 4 hours via Dip Switches

Environment Protection Standards
Waterproof to IP66 . IP6K9K Ignition Protected to ISO 8846

Optional Features
Optional Features

Reliable Dual Output Design for Enhanced Control

The EGIS 7616 TDR Series time delay relay features a dual output design that offers two 80A outputs, allowing precise electrical control across dual circuits. This makes it an ideal component for applications requiring simultaneous or sequential switching operations. The dual output capability ensures versatility and improved system efficiency, delivering dependable performance even under high load conditions. Its compact size and robust build ensure it fits seamlessly into various automotive, industrial, and electrical setups.

Accurate Time Delay Functionality for Smooth Operation

The time delay function integrated into the EGIS relay provides precise timing capabilities that protect electrical circuits from sudden surges and operational faults. With adjustable delay settings, users can customize the relay to match specific application requirements, preventing unnecessary wear and tear on connected components. This accurate timing functionality helps maintain system stability and prolongs equipment lifespan, making the EGIS 7616 an essential tool for safeguarding complex electrical networks.

Durable 12V Operation with High Current Capacity

Designed to operate reliably at 12 volts, the EGIS 7616 TDR relay supports high current loads of up to 2x80 amperes, ensuring it can handle demanding electrical environments. Its robust electrical contacts and casing provide excellent durability and resistance to harsh conditions, including vibration and temperature variations. This makes the relay perfectly suited for automotive, industrial machinery, and other applications that require dependable high-current switching in a compact time delay relay design.
