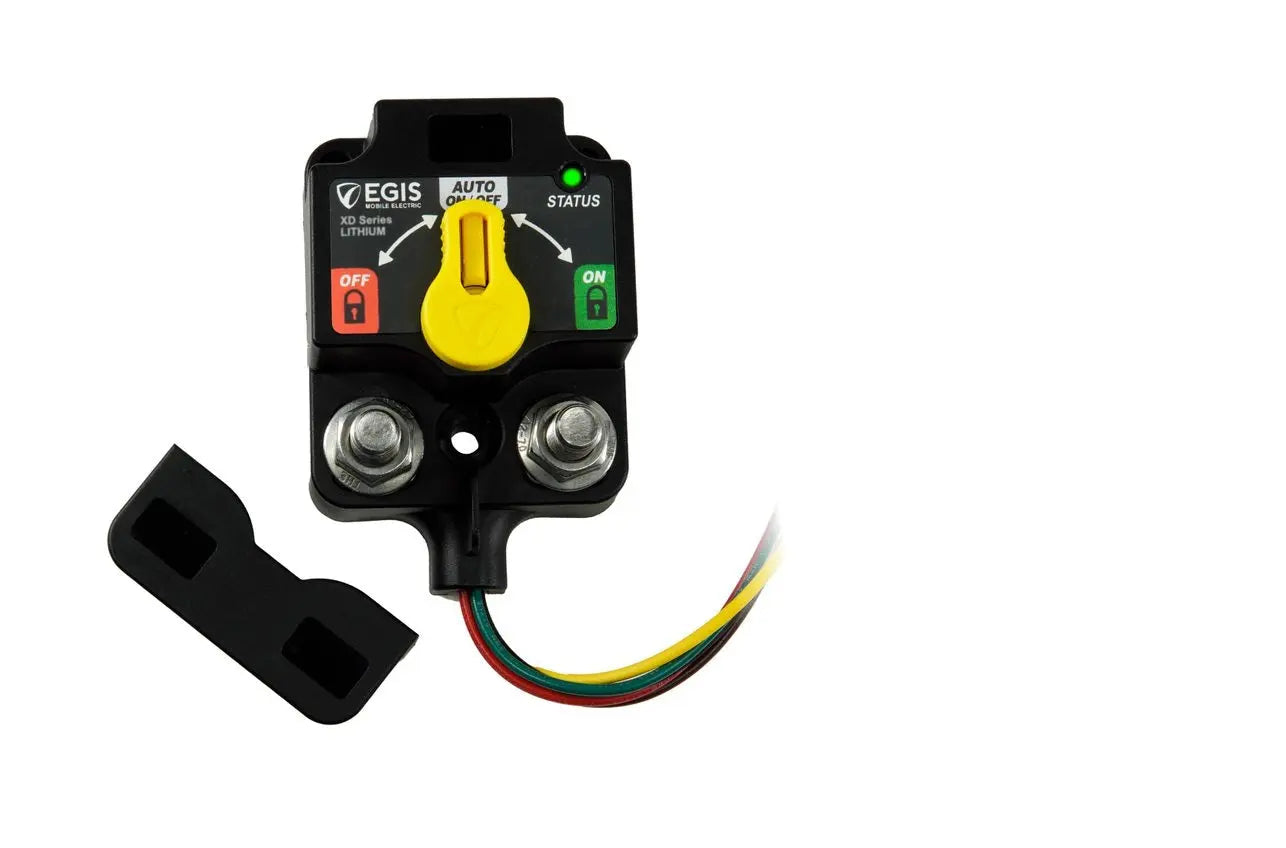

EGIS 8510-1300 XD Single Flex2 L-ion Programmable VSR Automatic Charging Relay

• Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries.


• LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED


• 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.


• 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.


• Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.


• Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.


• Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.


• Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)

Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.

90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

TOTAL CONTINUOUS CURRENT (AMPS)
500

MAX CRANKING CURRENT (AMPS)
1500

MECHANICAL SWITCHING LIFE
1,000,000 Cycles

VOLTAGE RANGE (V DC)
8 - 36

OFF-STATE CURRENT DRAW (mA)
1.3

STATE CHANGE CURRENT
5A @ 12 Vdc 3A @ 24 Vdc
