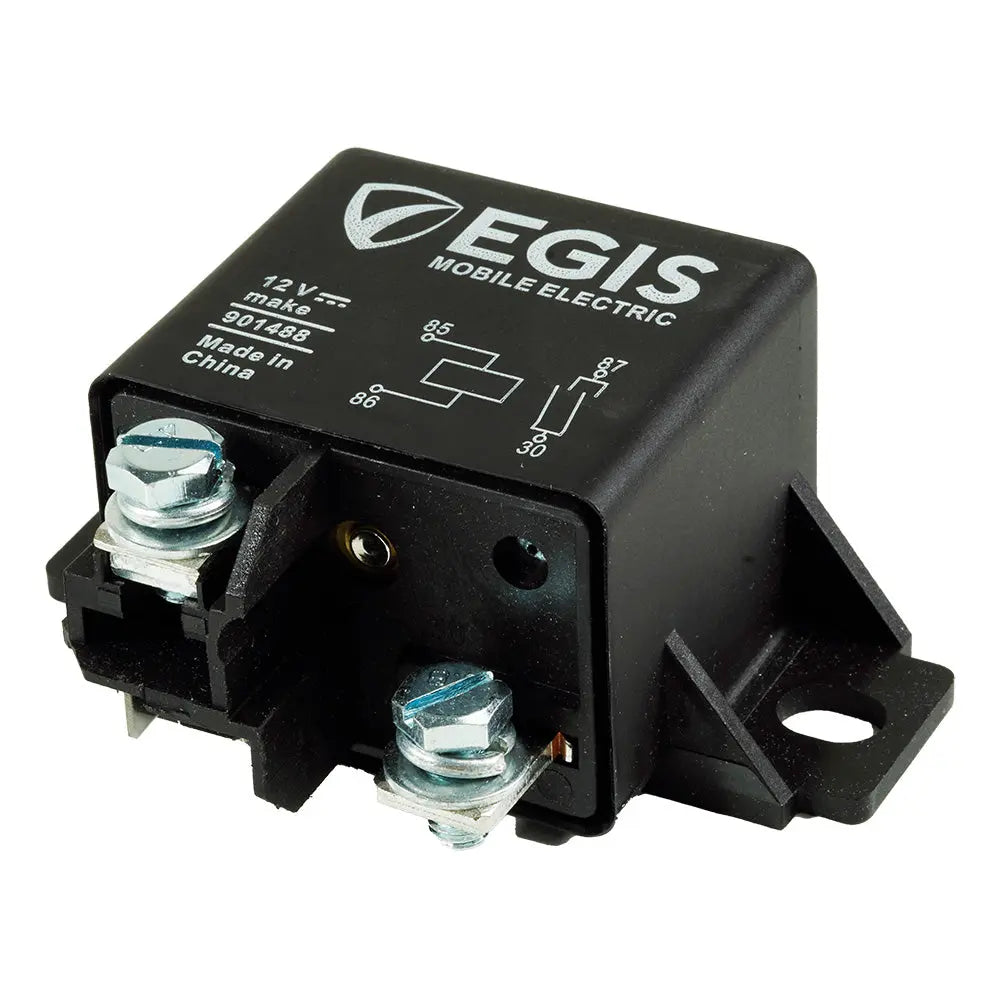

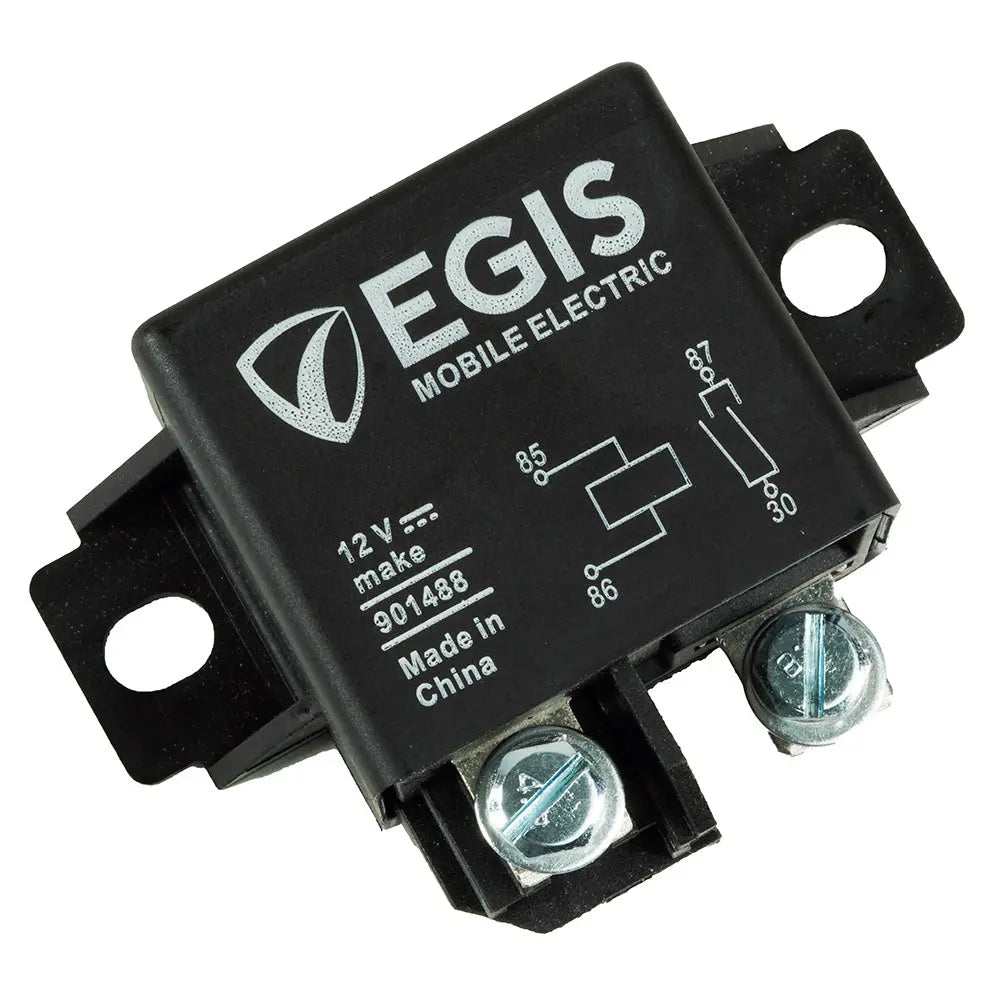

Egis Mobile Electric 12V 75A Automotive Relay (Part #901488)

Relay 12V, 75A

This 12V, 75-amp relay is great for automotive applications. Bi-furcated contacts ensure long-term reliability and increased operating efficiency.

Applications:

• Bi-furcated contact reduces contact bounce and increases long-term reliability. This enables the relay to conduct electrical switching more efficiently, reducing unnecessary heat buildup and contact wear.
• The high intermittent amperage rating of 150 amps for up to 3 seconds, makes this relay great for temporary high-equipment start-up amp draw applications.
• Offset input/output terminals and an integrated divider design help prevent accidental contact shorts
• A high-temperature rating of 125 degrees C/257 degrees F makes this a great relay for high-temperature installation environments like engine bays and other low-ventilation spaces.

Features:

• Bullet-proof construction - Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting
• Dual mounting holes on either side for easy mounting with -20/M6 1.25 bolts or screws up to #14 screw
• Incorporate the highest quality materials for superior performance and have a high 100,000 electrical switching cycle capacity
• Enhanced vibration and shock protection ensures enhanced reliability, a long service life, and the operational readiness of the electrical system

Specifications:

• Intermittent Current @ 3 SEC (Amps): 150
• Ambient Temp. Rating (Low/High) (Celsius): -50/125 C
• Max Continuous Current (Amps): 75 @23 degrees C
• Electrical Endurance Rating (Cycles): 100,000
• Initial Contact Resistance (6VDC) 50 mOhm
• Operating Voltage Range: 8.8-16VDC

Focal Features:

Long-Term Reliability

Built from high-quality materials, this relay offers superior electrical switching performance for long-term use in applications.

Locking Hardware

Zinc-plated M5-size input/output terminal screws with held-in-place nuts keep connections secure and allow easy tightening of wire terminations.

Automotive Grade

Wide operational temperature ratings and shock/vibration resistance make this a great relay for an automotive electrical system. Meets or exceeds IEC 60068-2-27 and IEC 60068-2-6, IP54, and IEC 60068-2-2 ratings.

Varied Fastener Sizes

6mm x 8.7mm elongated holes accommodate up to 1/4-20" or M6x1.25 bolts or up to #14/1/4" sized screws and allow for centering adjustment when installing relays.

Reinforced Mounting

Robust mounting tabs with strengthening gussets ensure the relay stays mounted securely, even through vibration, heat, and wire tension.

Compact Size

A small mounting footprint is great for confined installation spaces where space is at a premium.

Flat Blade Connectors

Shielded dual 6.3 x.03 mm flat male terminal connectors allow for quick, secure, and easy control wire connections.

Offset Terminals

Integrated divider tab design and varied mounting height input/output pads protect accidental contact shorts.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 12V 75A relay is engineered for reliable performance in automotive electrical systems. Designed with bi-furcated contacts, this relay ensures long-term durability by reducing contact bounce and wear, resulting in more efficient electrical switching and decreased heat buildup. Its high intermittent amperage rating of up to 150 amps for short durations makes it suitable for applications requiring temporary high-startup currents, such as engine ignition or auxiliary systems. The integrated divider design and offset input/output terminals help prevent accidental contact shorts, enhancing safety and operational dependability.
Constructed with automotive-grade materials, the Egis relay features IP54 ingress protection and reinforced mounting tabs, making it resistant to dust, moisture, and vibrations commonly encountered in engine bays and low-ventilation environments. The rugged design includes dual mounting holes compatible with a variety of fasteners, including M6x1.25 bolts and #14 screws, allowing flexible installation options. Its high-temperature rating of 125°C (257°F) ensures reliable operation even under extreme heat conditions, while the compact size facilitates installation in confined spaces. Flat blade connectors provide quick and secure wiring connections, and offset terminals with an integrated divider help prevent accidental shorts during installation.
This relay boasts an impressive electrical endurance of 100,000 cycles, making it suitable for demanding automotive applications. Zinc-plated M5 input/output screws with held-in-place nuts secure wiring connections, maintaining consistent contact over time. Shock and vibration resistance further enhance service life, ensuring the relay remains operational through harsh driving conditions. Designed to meet or exceed industry standards such as IEC 60068-2-27 and IEC 60068-2-6, this relay is a dependable choice for vehicle electrical systems. Its small footprint makes it ideal for tight spaces, while shielded terminal connectors simplify wiring. Overall, the Egis 12V 75A relay offers a combination of durability, safety features, and ease of installation, making it a valuable component for automotive electrical projects.

Features:

• Bi-furcated contacts reduce contact bounce and wear, increasing reliability

• High intermittent amperage rating of 150 amps for short-term high-current applications

• Integrated divider and offset terminals prevent accidental shorts

• Automotive-grade construction with IP54 ingress protection for durability

• Reinforced mounting tabs with gussets ensure secure installation

• Dual mounting holes compatible with various fasteners for flexible mounting

• High-temperature tolerance up to 125°C (257°F) for harsh environments

• Electrical endurance rated for 100,000 cycles for long-term use

• Compact size suitable for limited space installations

• Shielded flat blade connectors for quick and secure wiring

• Zinc-plated mounting screws with nuts for reliable electrical connections

• Shock and vibration resistant for demanding conditions
