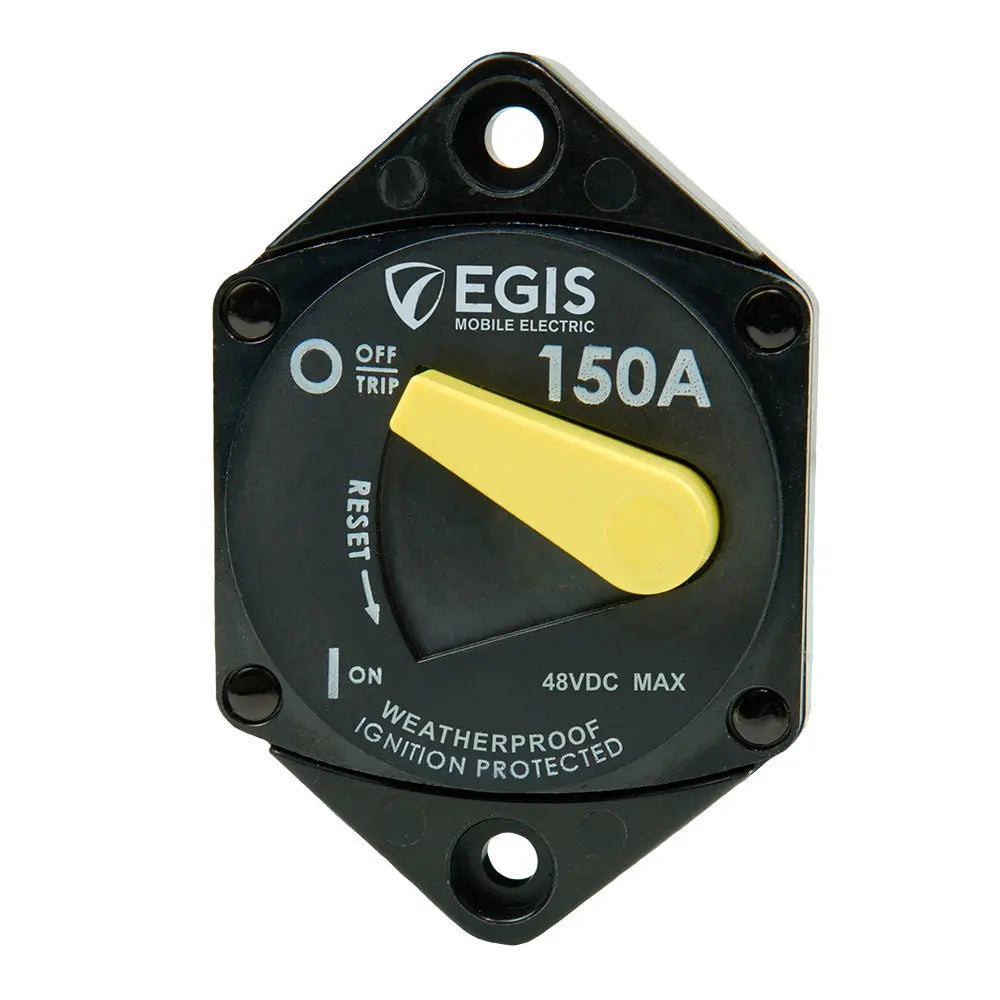

150A Panel Mount 87 Series Circuit Breaker
This 150A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.
Applications:
- Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
- Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
- High electrical and manual switching endurance delivers 2,000 cycles at full current
- High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-year warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 150
- Max Voltage: 48
- Cycling Endurance: 2,000
- Interrupt Current @14 VDC (Amps): 5,000
- Interrupt Current @28 VDC (Amps): 3,000
- Ingress Protection Rating: IP66
Focal Features
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
Circular Design
Compatible with circular cutout enables easy panel installation.
Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 150A Panel Mount 87 Series Circuit Breaker offers reliable protection for electrical systems in demanding environments. Designed with a weatherproof IP66 sealed case, this circuit breaker safeguards against dust and water intrusion, ensuring long-term durability and dependable operation in harsh conditions. Its high voltage (48 Vdc) rating supports 12, 24, 36, and 48 Vdc applications, making it suitable for a wide range of electric vehicle, marine, and stationary power systems.
Features:
- IP66 sealed enclosure ensures dust and water resistance for reliable operation in outdoor and challenging environments
- High voltage (48 Vdc) rating supports multiple DC voltage applications including 12, 24, 36, and 48 volts
- High electrical and manual switching endurance with 2,000 cycles at full current for extended use
- Interrupt current capacity of up to 5,000 amps at 14 VDC and 3,000 amps at 28 VDC provides protection for large battery banks
- Convenient round cutout design allows for easy installation into panel systems
- ON/OFF high visibility controls facilitate quick and safe circuit operation
- Corrosion-resistant stainless steel hardware and serrated flange nuts ensure durability in vibration-prone and corrosive environments
- Made in the USA with high-quality components, backed by a 4-year warranty
