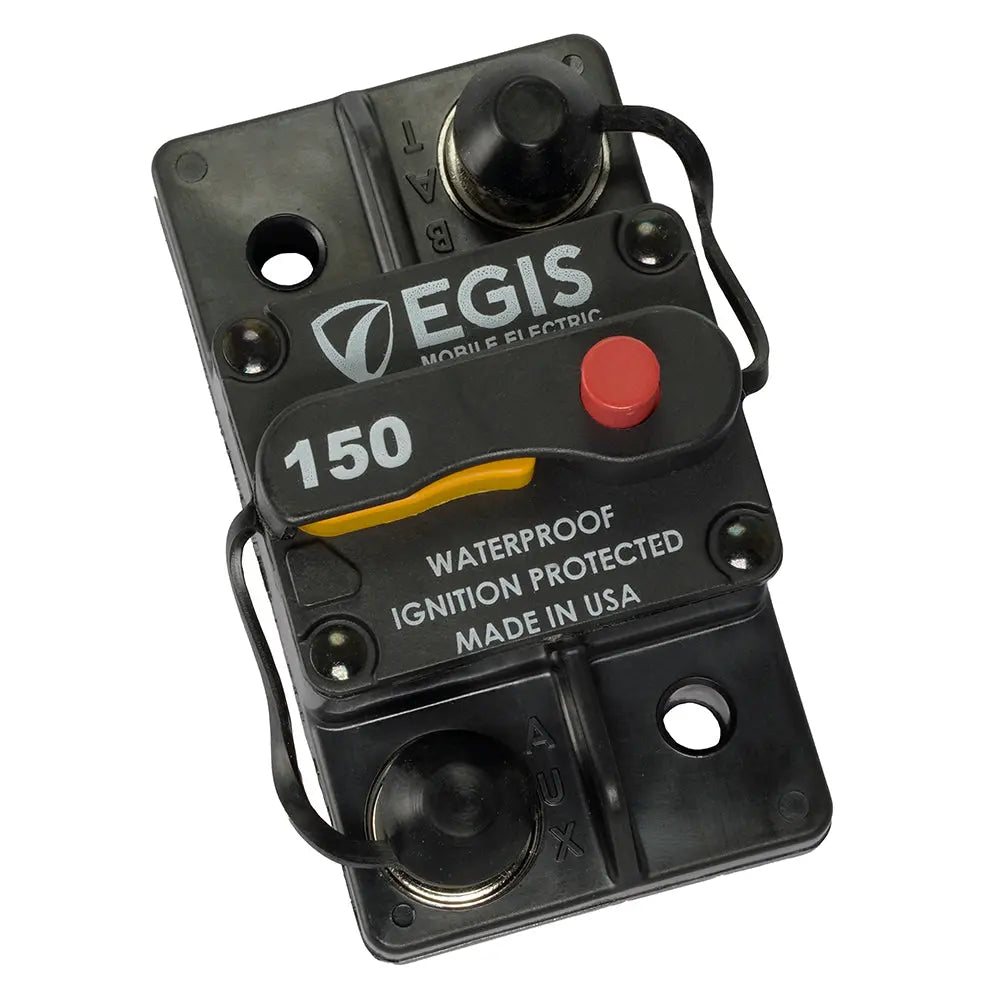

Egis Mobile Electric 150A Surface Mount Circuit Breaker - 285 Series

150A Surface Mount Circuit Breaker - 285 Series

This 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its products ability to meet the users needs

Specifications:

• Continuous Current Amps: 150
• Max Voltage: 48
• Cycling Endurance: 100
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Integrated Terminal Insulators

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

The Egis Mobile Electric 150A Surface Mount Circuit Breaker from the 285 Series offers reliable protection for electrical systems operating at up to 48 volts DC. Designed for easy integration, this circuit breaker combines automatic circuit protection with manual on/off switching, making it ideal for applications requiring quick circuit isolation and maintenance. Its compact, sealed design ensures protection against dust and water ingress, rated at IP67, which guarantees long-lasting performance in demanding environments. The high electrical switching endurance of 6,000 cycles at full current ensures durability and consistent operation over the lifespan of the system. Whether used in battery banks, renewable energy systems, or industrial applications, this breaker's high interrupt current capacity provides safe protection for large parallel battery setups and high-energy circuits.
