Egis Mobile Electric 20A Panel Mount Mini Circuit Breaker with IP66 Sealed Protection

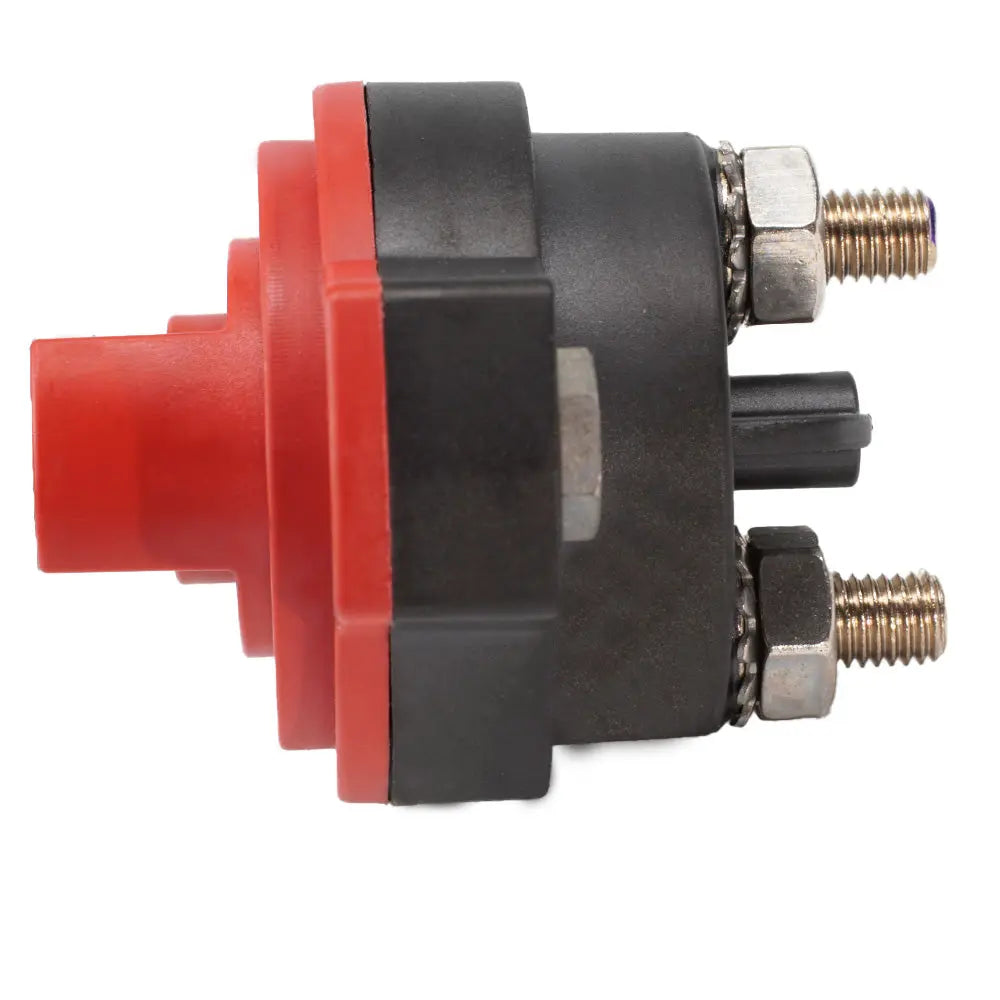

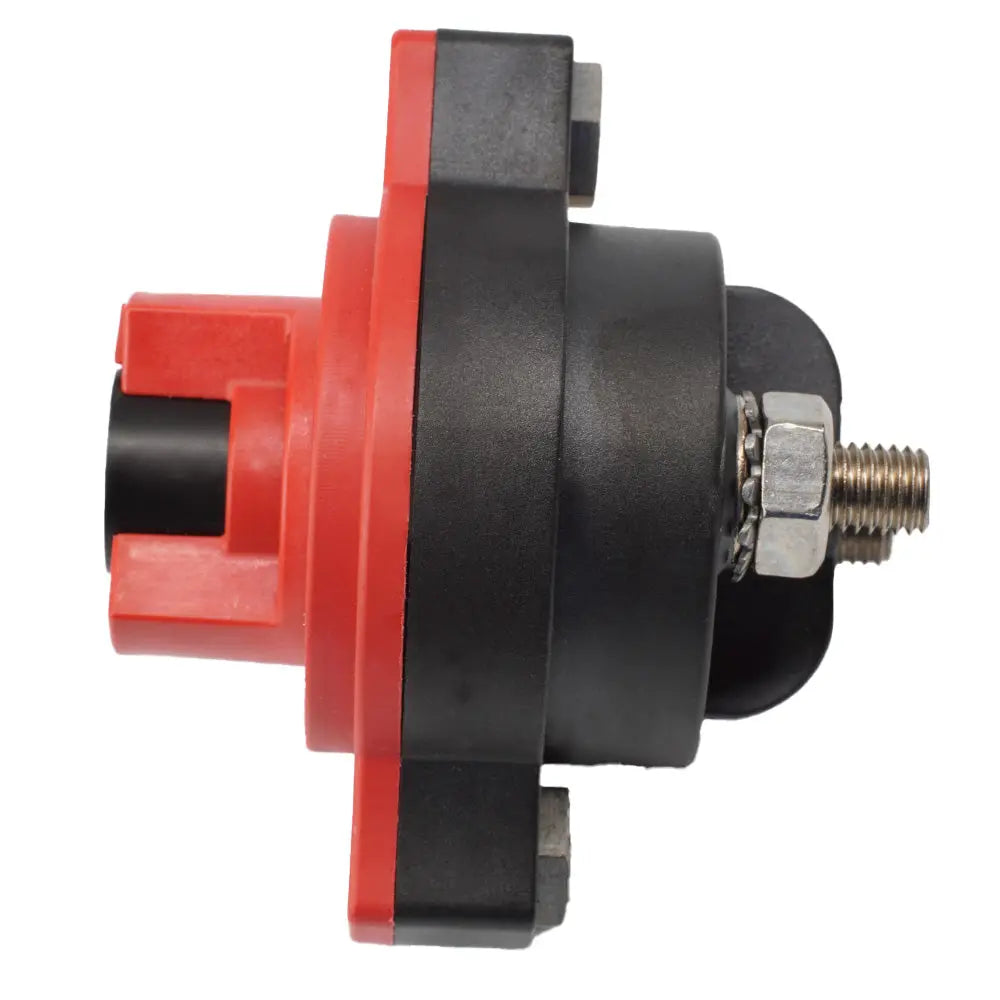

20A Panel Mount Mini Circuit Breaker

This 20A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 20
• Max Voltage: 42
• CE Marked: Yes
• Interrupt Current @14 VDC (Amps): 3,000
• Cycle Switching Endurance: 5,000
• Ingress Protection Rating: IP66

Focal Features

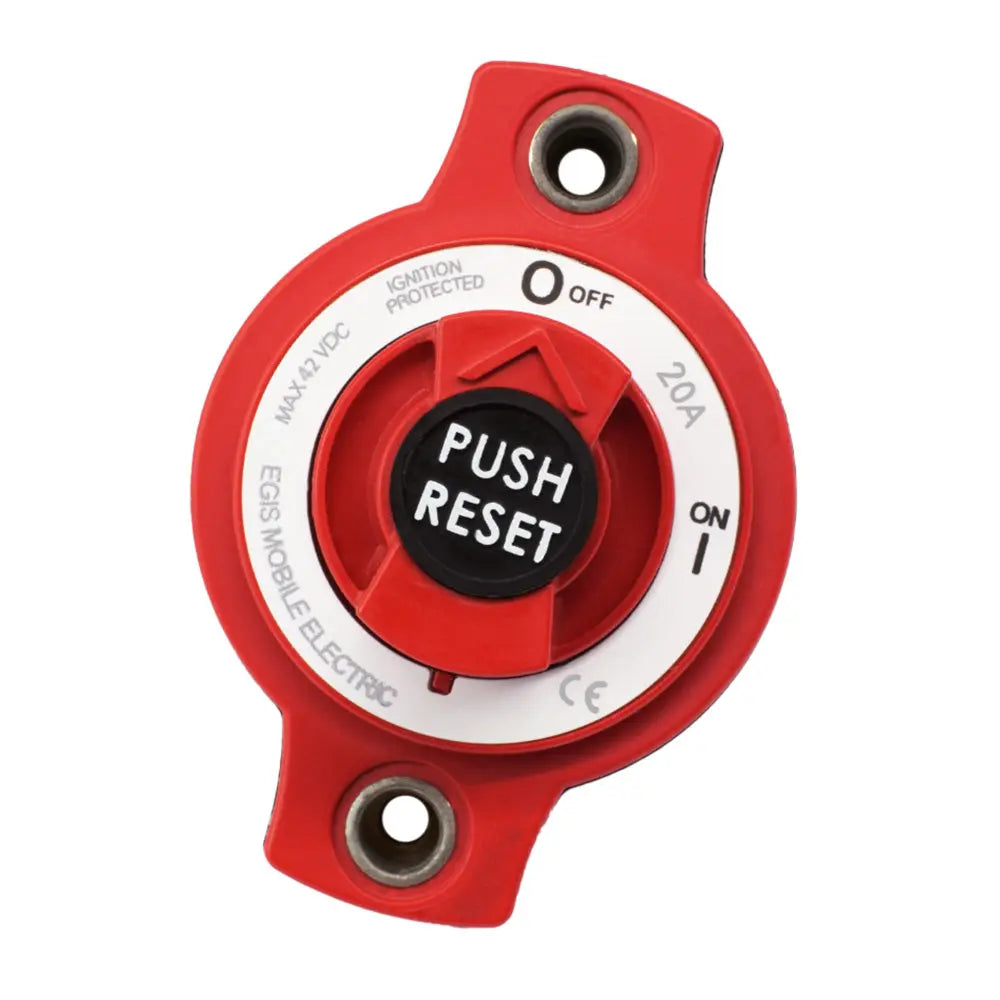

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

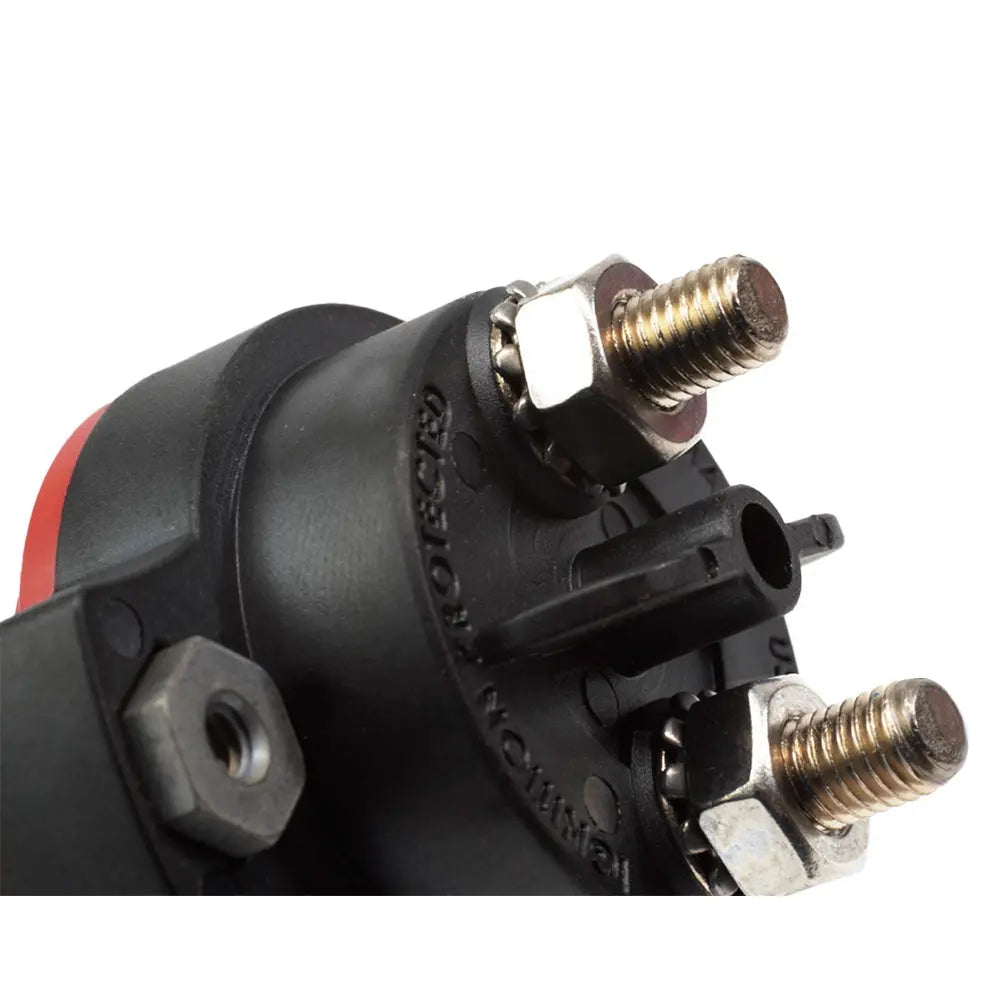

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.

Compact Size

Fit more circuit switching/protection on a smaller panel!

Proudly Made in the USA

Made in the USA of high-quality components.

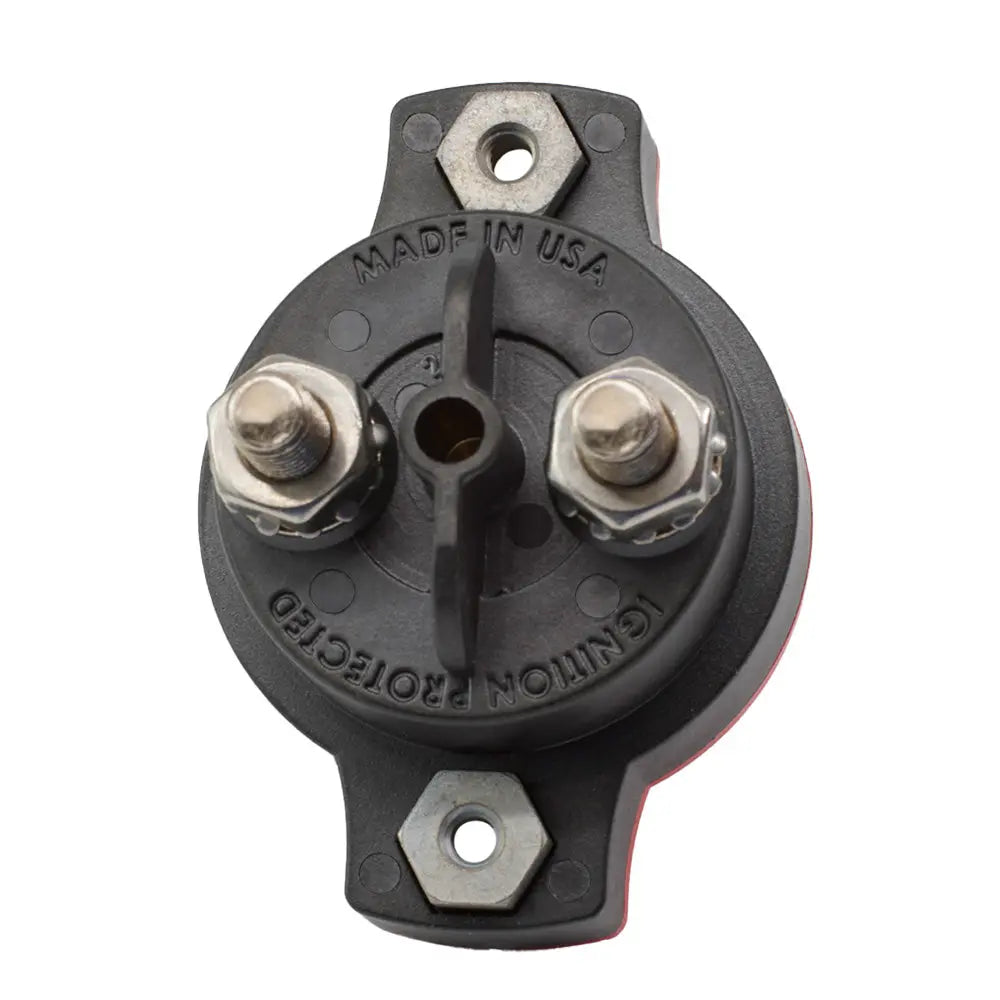

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 20A Panel Mount Mini Circuit Breaker (Part Number: 4701-20) offers a reliable and compact solution for circuit protection and switching in marine and vehicle applications. Designed with a dual-functionality feature, this circuit breaker combines automatic circuit protection with manual ON/OFF switching, making it ideal for trolling motor systems and other DC applications. Its robust construction ensures long-term durability and dependable performance, even in harsh environments. The IP66-rated sealing provides excellent protection against dust and water ingress, safeguarding the internal components from environmental contaminants to ensure consistent operation over the system's lifespan.

This circuit breaker supports a 42 VDC rating, making it suitable for 12, 24, and 36V DC systems commonly used in marine, RV, and off-road vehicles. It boasts a high electrical switching endurance of up to 2,000 cycles at full current, along with a high interrupt current capacity capable of safely managing large battery banks with substantial power. The device's high-current interrupt capability prevents potential damage during short circuits or overload events, providing peace of mind and system safety. Additionally, the breaker is CE marked and features a cycle switching endurance of 5,000 cycles, demonstrating its reliability and longevity.

Installation is straightforward thanks to the easy-to-operate rotary ON/OFF switch, which offers clear visual recognition of the switch position. The stainless steel self-locking hardware ensures resistance to corrosion and vibrations, making it suitable for demanding environments. Its weatherproof construction protects internal components from moisture and dust, while its compact size allows for more circuit switching and protection on smaller panels. Proudly manufactured in the USA with high-quality components, this circuit breaker is also ignition protected, reducing the risk of shorts from positive terminals to grounded surfaces. The Egis 20A Panel Mount Mini Circuit Breaker is a versatile, durable, and essential component for safe and efficient electrical system management in marine and vehicle applications.

Features:

• IP66 sealed against dust and water intrusion for reliable circuit protection

• Supports 42 VDC, suitable for 12, 24, and 36V DC systems

• High electrical and manual switching endurance: 2,000 cycles at full current

• High interrupt current capacity for large battery bank protection

• 4-year warranty backed by Egis Mobile Electric

• Easy-to-use rotary ON/OFF switch for clear operation

• Corrosion and vibration resistant stainless steel hardware

• Weatherproof construction withstands harsh environments

• Compact design for space-efficient circuit protection

• Made in the USA with high-quality components

• Ignition protected to prevent shorts from positive terminals to grounded surfaces
