Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes

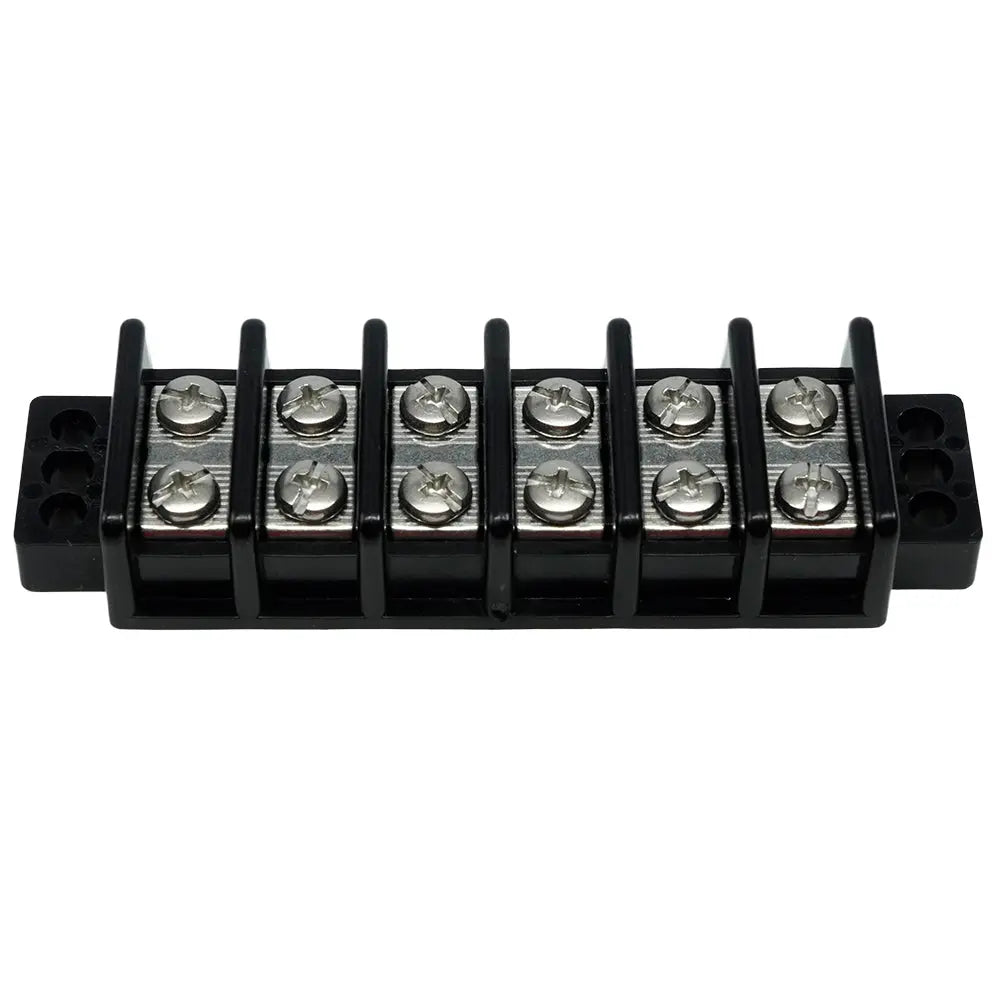

The Egis Mobile Electric 2230-06 terminal block is designed for reliable electrical connections in demanding marine and harsh environment applications. Its robust construction features marine-grade tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials, ensuring long-lasting performance even under challenging conditions. This 6-circuit terminal block supports continuous currents up to 30 amps and is rated for up to 250 volts AC or DC, making it suitable for a wide range of electrical systems including 12, 24, 36, and 48 Vdc configurations as well as standard 120/240 Vac systems. Its design incorporates screw terminal connection pairs where each input and output screw is connected to separate copper alloy bus bars, facilitating secure and organized wiring connections. The inclusion of anti-rotation ribs on conductor strips minimizes wire terminal rotation, especially beneficial when strain relief distances are extended, enhancing overall connection integrity. Additionally, high insulation walls protect ring terminal splices from shorting to adjacent circuits or ground, ensuring safety and reliability. The terminal block’s dielectric strength exceeds 2000Vac, and it is CE marked and RoHS compliant, reflecting quality standards and environmental considerations. Built to withstand harsh marine environments, this terminal block is backed by a 4-year warranty, providing confidence in its durability and performance. Its compact design makes it suitable for various electrical installation needs where durability and reliable connectivity are critical.
Features:
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
Marine-grade materials including tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation ensure long-lasting reliability in harsh environments
Supports 125 Volt AC or DC systems, compatible with 12, 24, 36, and 48 Vdc applications, as well as standard 120/240 Vac systems
Anti-rotation ribs on conductor strips reduce the risk of wire terminal rotation under strain relief conditions
High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground
Constructed with high-temperature insulation, tin-plated copper alloy conductors, and stainless steel hardware for durability
CE marked and RoHS compliant, meeting safety and environmental standards
Backed by a 4-year warranty for added peace of mind
