Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes

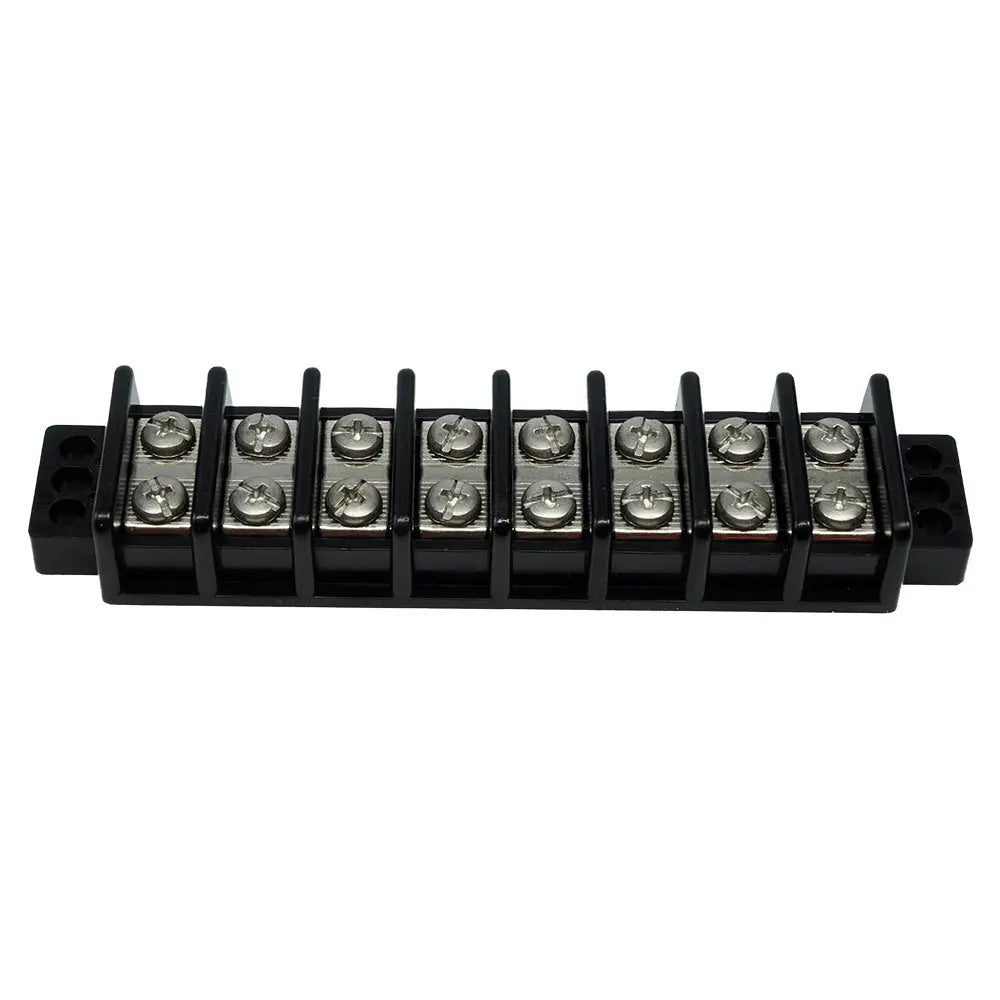

The Egis Mobile Electric 2230-08 terminal block offers a reliable and durable solution for complex electrical wiring in harsh environments. Designed with marine-grade materials, this 30 Amp, 8-circuit terminal block ensures long-lasting performance and safety across various applications. The robust construction includes tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation, providing resistance to corrosion, vibration, and extreme conditions. Its design features screw terminal connection pairs, each with one input and one output screw connected to separate copper alloy bus bars, facilitating secure and organized wiring. This configuration supports multiple connection configurations, making it versatile for both marine and industrial use. The product is rated for 125 Volt AC or DC, supporting systems with voltages of 12, 24, 36, and 48 Vdc, as well as standard 120/240 Vac applications, ensuring compatibility with a wide range of electrical systems. Anti-rotation ribs on the conductor strips help prevent wire terminal rotation, especially in long strain relief setups, enhancing connection integrity. Additionally, high insulation walls protect ring terminal splices from shorting to adjacent circuits or ground, enhancing safety and reliability. The bullet-proof construction, combined with a 4-year warranty, underscores the product's durability and Egis Mobile Electric’s confidence in its performance. This terminal block features a dielectric strength of 2000Vac and a maximum voltage rating of 250 Vac/DC, making it suitable for demanding electrical environments. With CE marking and RoHS compliance, this terminal block meets rigorous safety and environmental standards. Its compact design and high-quality materials make it ideal for marine, industrial, and renewable energy applications where reliable, corrosion-resistant electrical connections are essential.
Features:
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.
Marine-grade materials, including tin-plated copper alloy conductors and stainless steel hardware, ensure long-lasting reliability in harsh environments.
Supports 125 Volt AC or DC systems, suitable for 12, 24, 36, and 48 Vdc applications, as well as 120/240 Vac systems.
Anti-rotation ribs on conductor strips reduce the risk of wire terminal rotation in long strain relief setups.
High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
Constructed with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware for durability.
Rated for continuous currents up to 30 amps with a maximum voltage of 250 volts AC/DC.
Meets safety and environmental standards with CE marking and RoHS compliance, backed by a 4-year warranty.
