Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes

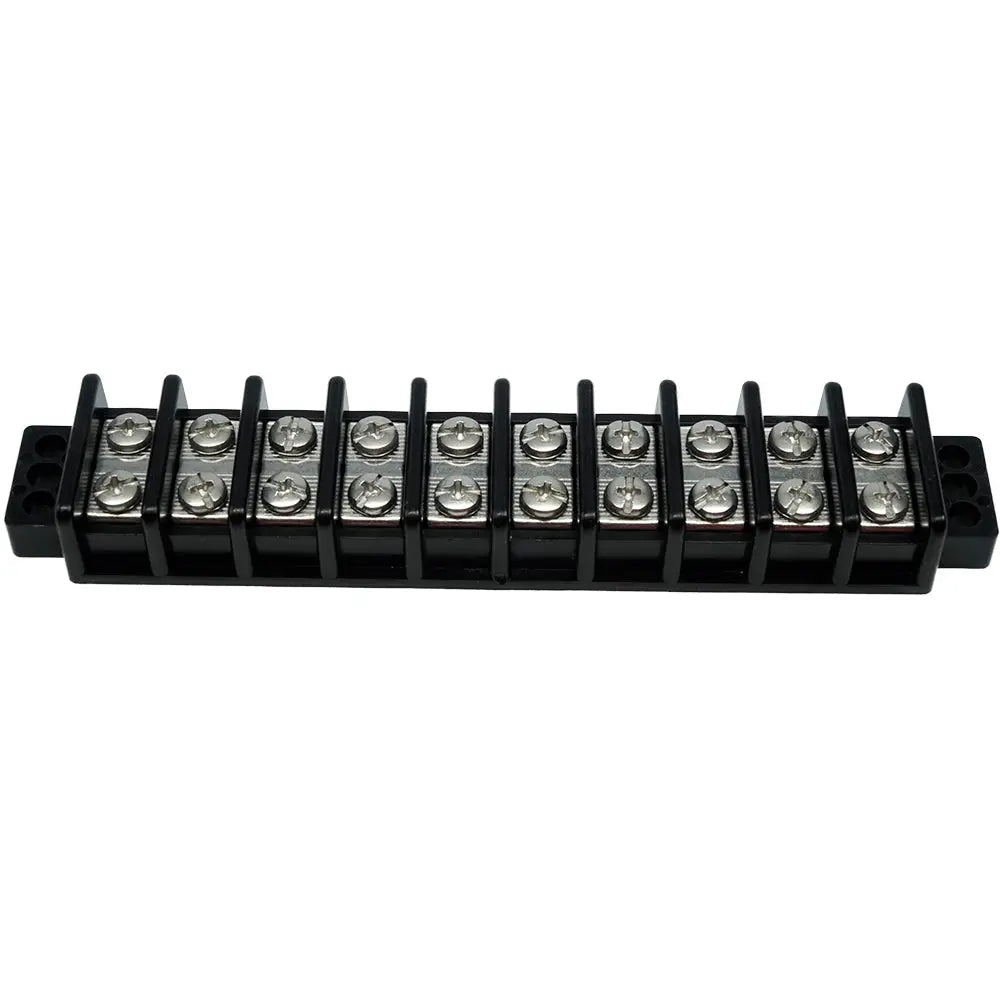

The Egis Mobile Electric 2230-10 terminal block is designed for reliable electrical connections in demanding marine and industrial environments. Constructed with marine-grade materials, this terminal block ensures long-lasting performance even under harsh conditions. Its robust tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials provide durability and resistance to corrosion and thermal stress. Suitable for both AC and DC applications, it supports systems operating at 12, 24, 36, and 48 volts DC, as well as standard 120/240-volt AC systems, making it versatile for various electrical configurations. The terminal block features screw terminal connection pairs, where each pair consists of one input and one output screw connected to separate copper alloy bus bars, enabling secure and organized wiring connections. The design includes anti-rotation ribs on the conductor strips to reduce the likelihood of wire terminal rotation during installation or strain, ensuring a stable connection. Additionally, high insulation walls protect ring terminal splices from shorting to adjacent circuits or ground, enhancing electrical safety. Built with high-temperature insulation and stainless steel hardware, this terminal block is engineered for durability and long service life. It is CE marked and RoHS compliant, meeting rigorous industry standards. With a 4-year warranty, Egis Mobile Electric provides confidence in the product’s quality and reliability. This terminal block is ideal for marine, RV, and industrial electrical systems requiring secure, corrosion-resistant, and versatile wiring solutions.
Features:
Screw terminal connection pairs: each pair has one input and one output screw connected to separate copper alloy bus bars
