Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 30
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes

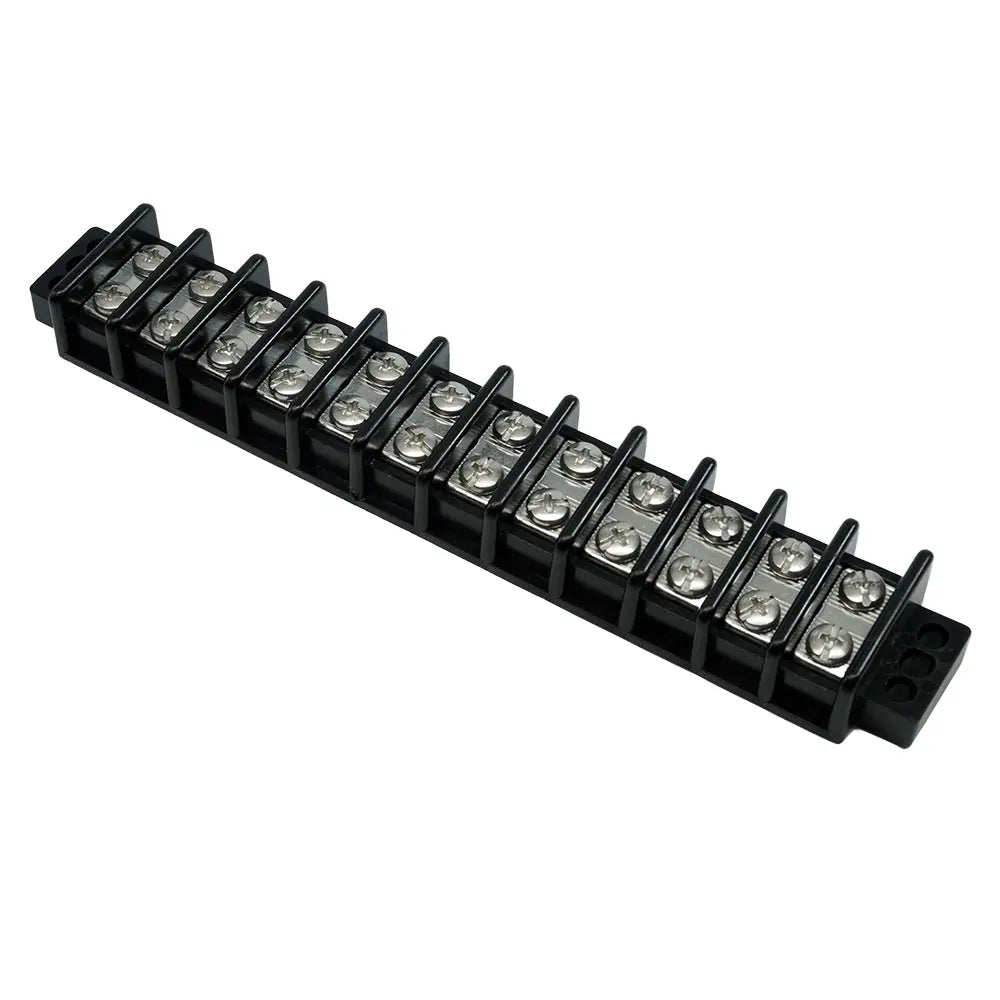

The Egis Mobile Electric 2230-12 terminal block offers reliable power distribution for harsh environments, making it ideal for marine, industrial, and RV applications. Constructed with marine-grade materials, this terminal block ensures long-lasting durability even in challenging conditions. Its high-temperature insulation, tin-plated copper alloy conductors, and stainless steel hardware provide a robust solution for both AC and DC systems. Designed to support 12, 24, 36, and 48 Volt DC systems, as well as 120/240 Volt AC applications, this product offers versatile connectivity for various electrical setups. Each terminal features screw terminal connection pairs that provide one input and one output screw connected to separate copper alloy bus bars, ensuring secure and reliable connections. The anti-rotation ribs on the conductor strips help prevent wire terminal rotation in installations with long strain relief distances, maintaining consistent electrical contact. Additionally, high insulation walls protect ring terminal splices from shorting to adjacent circuits or ground, enhancing safety and performance. The Egis 2230-12 terminal block is CE marked and RoHS compliant, confirming adherence to international standards. This terminal block is engineered for high performance, with a dielectric strength of 2000Vac and a continuous current capacity of 30 amps. Its bullet-proof construction, combined with stainless steel hardware, ensures resilience and longevity in demanding environments. Backed by a 4-year warranty, it provides peace of mind for critical electrical installations. Whether for marine, RV, or industrial projects, the Egis 2230-12 terminal block delivers dependable, safe, and versatile power distribution capabilities with ease of installation and maintenance.
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
