Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 65
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes

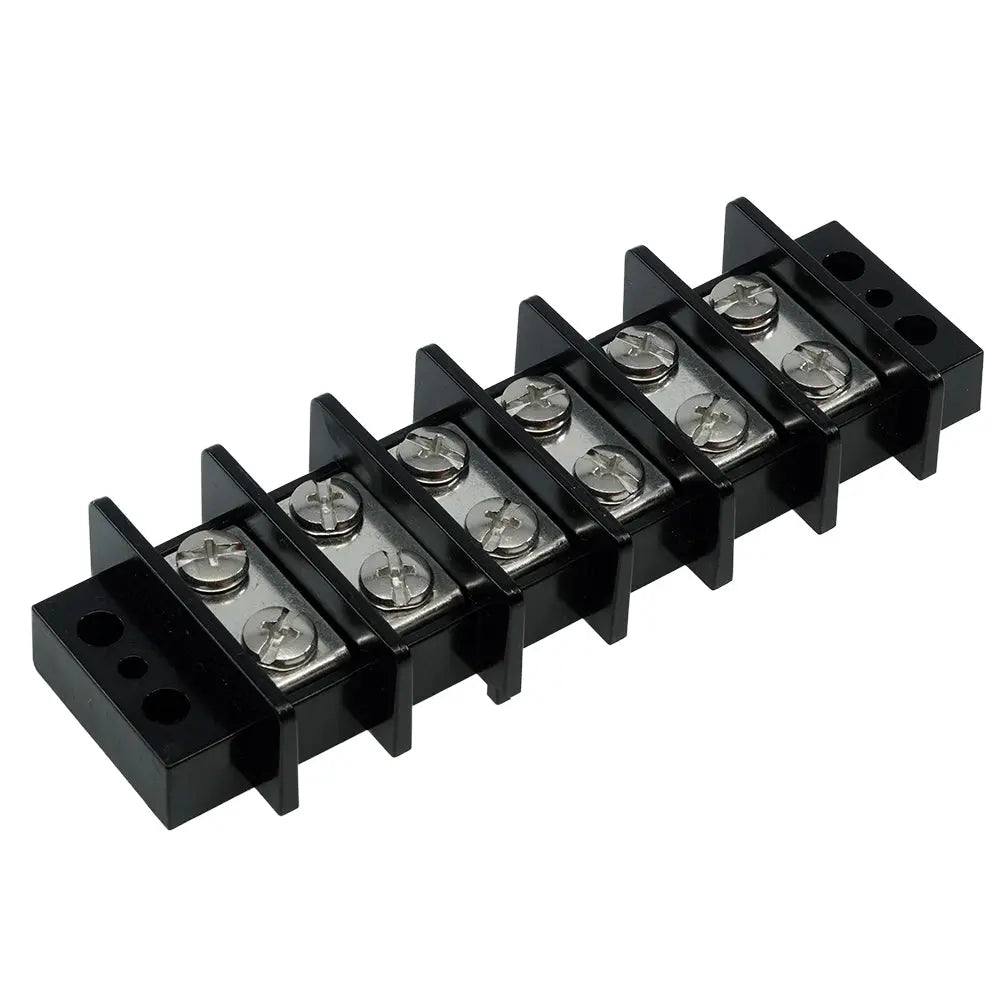

The Egis Mobile Electric 2265-06 terminal block offers reliable performance for demanding electrical applications. Designed with marine-grade materials, this 30-amp, 6-circuit terminal block ensures long-lasting durability in harsh environments, making it ideal for marine, industrial, and automotive projects. Its construction features tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation, providing a robust and corrosion-resistant solution. The terminal block supports both AC and DC systems, rated at 125 volts, accommodating 12, 24, 36, and 48 Vdc setups, as well as standard 120/240 Vac applications, offering versatile compatibility for various electrical configurations. The screw terminal connection pairs are designed to connect one input and one output screw to separate copper alloy bus bars, ensuring secure and reliable electrical connections. Anti-rotation ribs on conductor strips help prevent wire terminal rotation, especially in long strain relief runs, enhancing safety and connection integrity. High insulation walls protect ring terminal splices from short circuits to adjacent circuits or ground, further increasing safety. Built with bullet-proof construction, this terminal block features high-temperature insulation materials, stainless steel hardware, and tin-plated conductors, ensuring durability over time. It is CE marked and RoHS compliant, meeting international safety and environmental standards. With a continuous current capacity of 65 amps and a maximum voltage of 250 volts, it is suitable for a wide range of power distribution needs. The Egis 2265-06 terminal block also includes features like dielectric strength of 2000Vac, ensuring reliable insulation and performance. Backed by a 4-year warranty, this terminal block provides a dependable solution for demanding electrical installations, whether in marine, industrial, or automotive environments. Its compact design and rugged construction make it an excellent choice for applications requiring secure, high-current connections in challenging conditions.
Features:
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
Marine-grade materials such as tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation ensure long-lasting reliability in harsh environments
Supports 125 Volt AC or DC systems, compatible with 12, 24, 36, and 48 Vdc applications, as well as 120/240 Vac systems
Anti-rotation ribs on conductor strips reduce wire terminal rotation risk in long strain relief applications
High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground
Constructed with high-temperature insulation, stainless steel hardware, and tin-plated conductors for durability
Rated for continuous current of 65 amps with a maximum voltage of 250 volts
Dielectric strength of 2000Vac for reliable insulation and safety standards
CE marked and RoHS compliant to meet international safety and environmental regulations
Backed by a 4-year warranty, offering dependable performance in demanding environments
