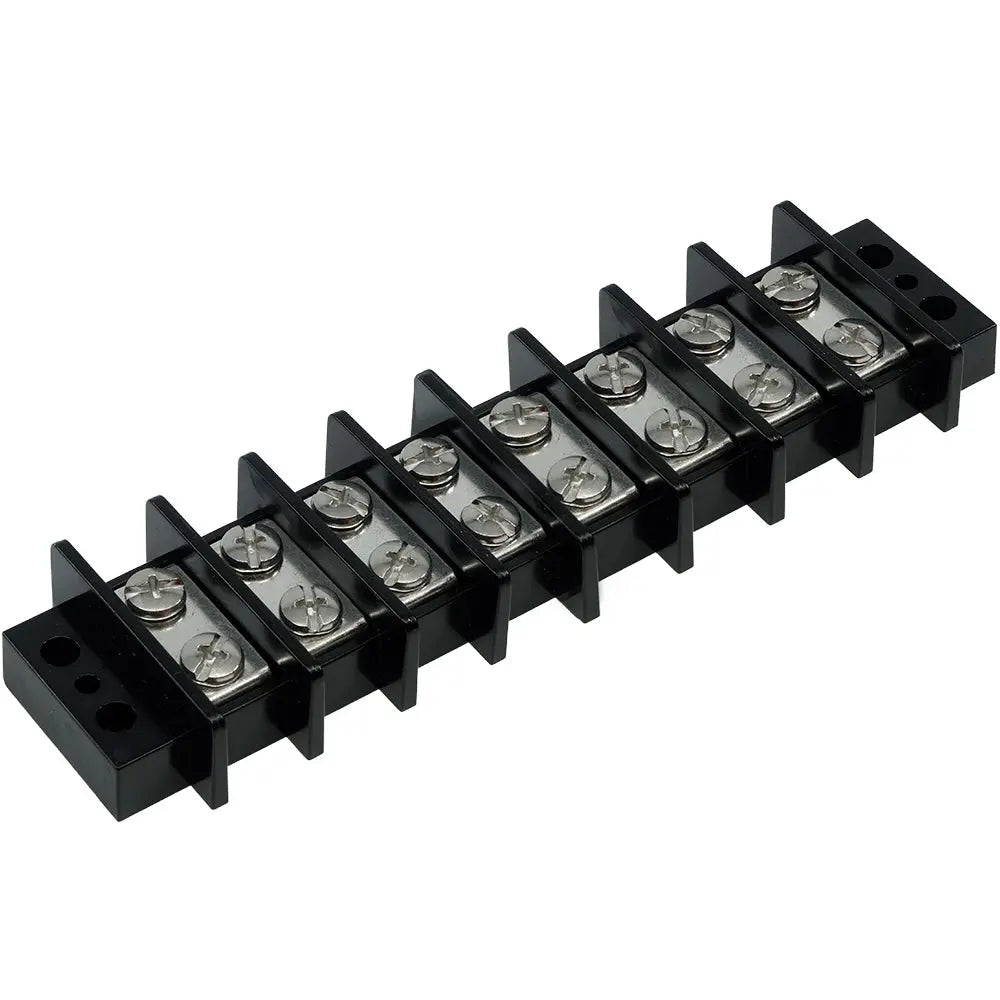

Egis Mobile Electric 2265-08 Marine-Grade 65 Amp 8-Circuit Terminal Block

Terminal Block - 65 Amp - 8 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications
• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
• Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 65
• Max Voltage (Vac/Vdc): 250
• Dielectric Strength: 2000Vac
• Hardware Material: Stainless Steel
• CE Marked: Yes
• ROHS Compliant: Yes

The Egis Mobile Electric 2265-08 terminal block is designed for reliable electrical connections in demanding environments. Made with marine-grade materials, this 8-circuit terminal block ensures long-lasting performance and durability in harsh conditions. Its construction features tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials, providing a robust and corrosion-resistant solution for various applications. The terminal block supports both AC and DC systems, rated at 125 volts, making it suitable for 12, 24, 36, and 48-volt DC systems, as well as standard 120/240-volt AC applications, offering versatility across different electrical setups. The screw terminal connection pairs facilitate easy wiring, with each pair comprising one input and one output screw connected to separate copper alloy bus bars, enhancing circuit organization and safety.

Features:

• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair

• Marine-grade materials including tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation ensure long-lasting reliability

• Supports 125 Volt AC or DC systems, suitable for 12, 24, 36, and 48 Vdc applications, as well as 120/240 Vac systems

• Anti-rotation ribs on conductor strips help prevent wire terminal rotation during installation or strain relief

• High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground

• Bullet-proof construction with high-temperature insulation, corrosion-resistant conductors, and durable hardware

• Includes a 4-year warranty to ensure product dependability and performance
