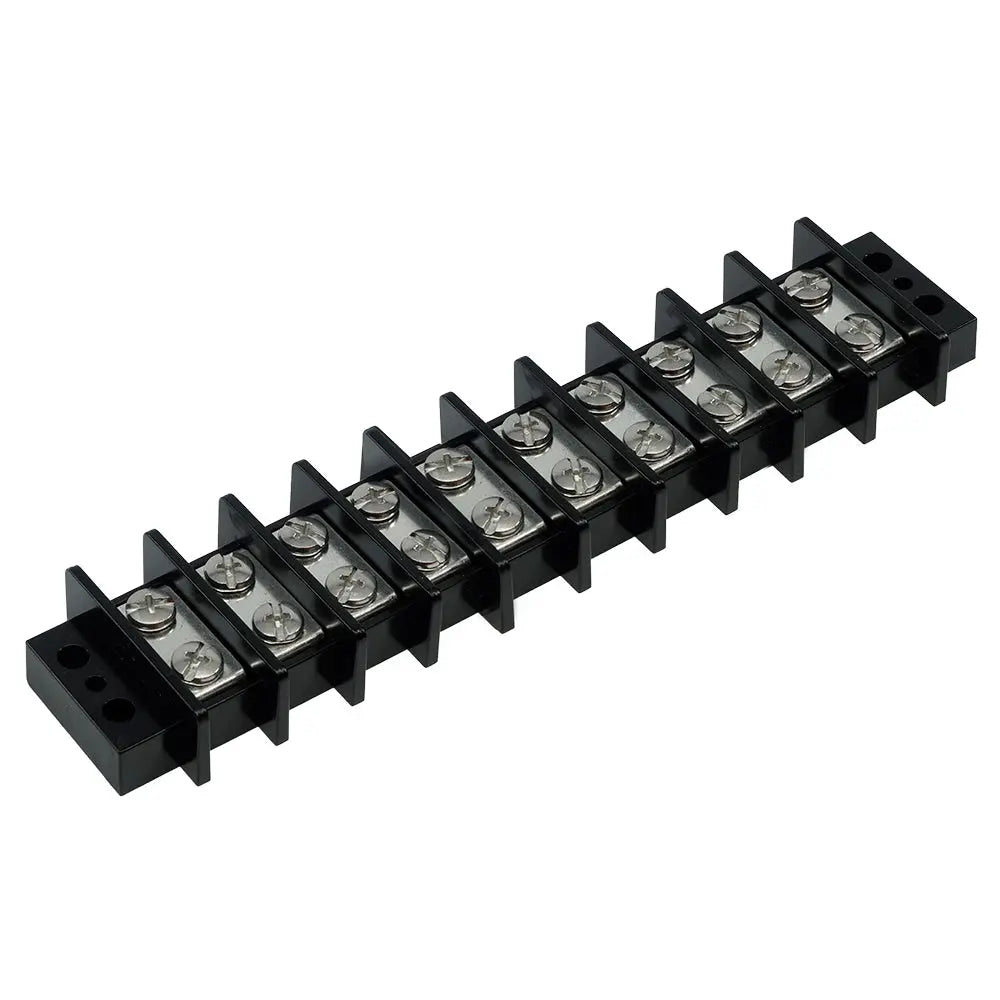

Terminal Block - 65 Amp - 10 Circuit
- Marine-grade materials ensure long-lasting reliability in harsh environment applications
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
- 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
- Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
- Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
- 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
- Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
- Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
- 4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
- Continuous Current (Amps): 65
- Max Voltage (Vac/Vdc): 250
- Dielectric Strength: 2000Vac
- Hardware Material: Stainless Steel
- CE Marked: Yes
- ROHS Compliant: Yes
The Egis Mobile Electric 2265-10 terminal block offers a robust solution for electrical connections in demanding environments. Designed with marine-grade materials, this terminal block ensures long-lasting reliability even in harsh conditions, making it ideal for marine, industrial, and outdoor applications. Its construction features tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials, providing durability and corrosion resistance. This high-capacity terminal block supports continuous currents of up to 65 amps and is rated for voltages up to 250 volts AC or DC, making it versatile for various electrical systems including 12, 24, 36, and 48 Vdc as well as 120 or 240 Vac setups.
Featuring screw terminal connection pairs, each input and output screw is connected to separate copper alloy bus bars for secure and reliable wiring. The terminal block includes anti-rotation ribs on conductor strips to prevent wire terminal rotation during installation, especially when strain relief distances are long. High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground, ensuring safety and system integrity. The Egis 2265-10 is CE marked and RoHS compliant, meeting rigorous safety and environmental standards. This unit is built with bullet-proof construction for high-temperature environments and comes with a 4-year warranty, reflecting the manufacturer’s confidence in its durability and performance.
Ideal for complex wiring systems requiring multiple circuits, this terminal block is available in configurations supporting 2, 4, 6, 8, 10, or 12 connection pairs. Its versatile design simplifies installation and maintenance in challenging environments, providing a reliable connection point that reduces downtime and enhances system longevity.
Features:
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connection.
- Marine-grade materials including tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation ensure durability in harsh environments.
- Supports 125 Volt AC or DC systems, accommodating 12, 24, 36, and 48 Vdc as well as 120/240 Vac applications.
- Anti-rotation ribs on conductor strips reduce the risk of wire terminal rotation, enhancing installation stability.
- High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
- Bullet-proof construction with high-temperature insulation, corrosion-resistant conductors, and stainless steel hardware for long-term reliability.
- 4-year warranty providing confidence in product durability and performance.
