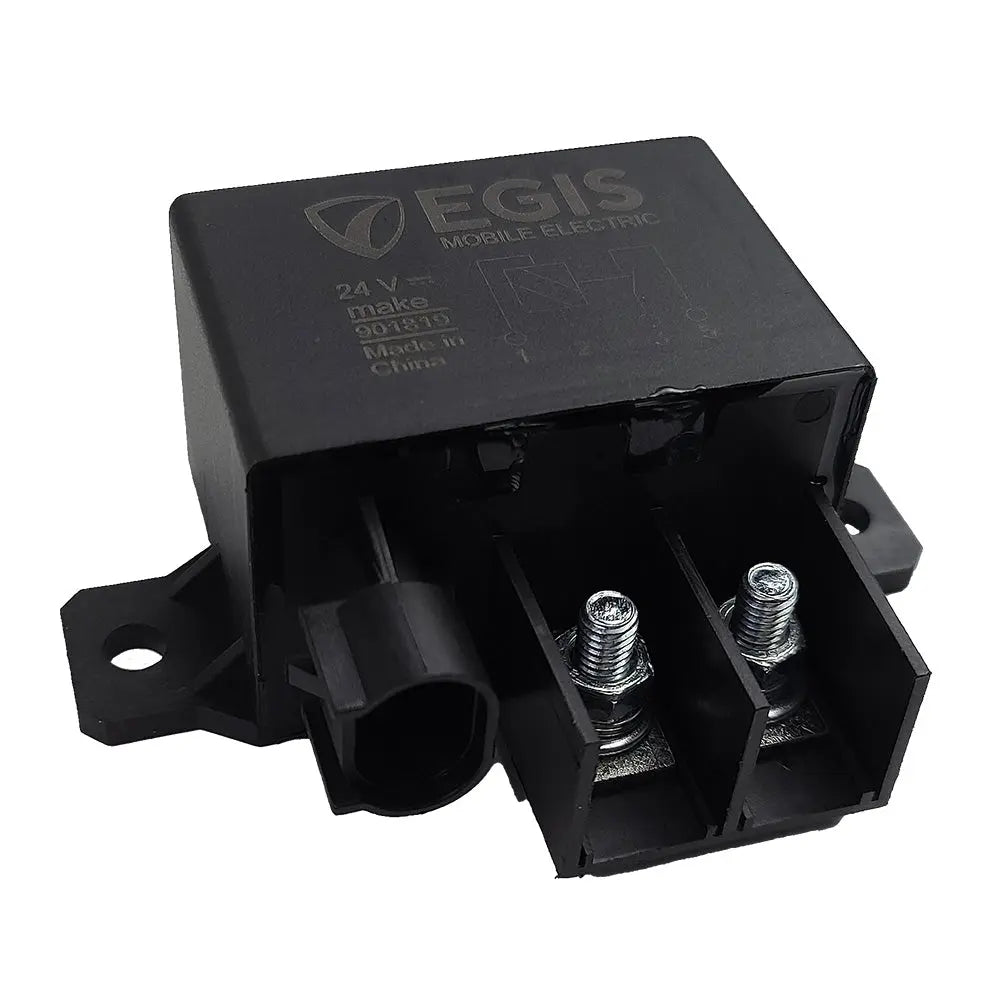

Egis Mobile Electric 24V 150A Automotive Relay with Resistor - Heavy-Duty Switch for High-Temp Environments

Relay 24V, 150A with Resistor

This is a 24V automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.

Applications:

• Resistor circuit protection ensures flyback voltage does not affect control signal circuitry. A great option for sensitive electrical systems.
• High intermittent amp rating of 300 amps for up to 3 seconds, making this relay great for temporary high-equipment start-up amp draw applications.
• Automotive-grade connectors ensure moisture and dust intrusion are kept from the control circuitry.
• The high-temperature rating of 125C/257F makes this a great relay for high-temperature installation environments like engine bays and other low-ventilation spaces.

Features:

• Bullet-proof Construction - Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting
• Dual mounting holes on either side for easy mounting with -20/M6 1.25 bolts or screws up to #14 screw
• Incorporate the highest quality materials for superior performance and have a high 100,000 electrical switching cycle capacity
• Enhanced vibration and shock protection ensures enhanced reliability, a long service life, and the operational readiness of the electrical system

Specifications:

• Intermittent Current @ 3 SEC (Amps): 300
• Ambient Temp. Rating (Low/High) (Celsius): -40/125 C
• Max Continuous Current (Amps): 180 @23 degrees C
• Electrical Endurance Rating (Cycles): 1,000,000
• On State Current Draw @ 24 VDC: 163 mA
• Operating Voltage Range: 17.6-32VDC

Focal Features:

Sealed Housing

IP67-rated housing keeps out moisture and ensures long-term reliability.

Reinforced Mounting

Robust mounting tabs with strengthening gussets ensure the relay stays mounted securely, even through vibration, heat, and wire tension.

Terminal Protection

Shielded dual M6x1.0 terminals ensure protection from accidental contact shorts.

Delphi Metripak Connector

Automotive-grade sealed control wire connectors keep moisture out of the control circuit.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 24V 150A relay with resistor is designed for demanding automotive and industrial applications where reliability and high current capacity are essential. This relay serves as a robust drop-in replacement for Tyco and Amp components, offering seamless integration into existing systems. Equipped with a resistor circuit protection, it safeguards control circuitry from flyback voltage, making it ideal for sensitive electrical systems. Its high intermittent amperage rating of up to 300 amps for short durations ensures it can handle temporary high-startup currents from equipment or accessories, providing dependable performance during peak loads.

Constructed with durable automotive-grade materials, this relay features an IP54 ingress protection rating, reinforced mounting tabs, and a sealed housing rated IP67 for moisture and dust resistance. The high-temperature rating of 125°C (257°F) allows installation in challenging environments such as engine bays or low-ventilation spaces. With dual mounting holes compatible with bolts or screws, installation is straightforward and secure, even under vibration or heat stress. The relay’s high electrical endurance of one million cycles guarantees longevity, while its enhanced shock and vibration resistance ensures operational reliability over time.

Designed with safety and ease of use in mind, the Egis relay incorporates shielded dual M6x1.0 terminals to prevent accidental shorts and features automotive-grade sealed control connectors to keep moisture out of the control circuit. Its robust construction and high-quality materials provide a dependable solution for controlling high-current circuits in vehicles or industrial systems. Whether used for temporary high-current applications or continuous operation, this relay delivers consistent performance in demanding environments, supporting long-term electrical system reliability and safety.

Features:

• Bullet-proof construction with IP54 ingress protection and reinforced mounting tabs for secure installation

• Dual mounting holes compatible with -20/M6 1.25 bolts or #14 screws for flexible mounting options

• High-quality materials designed for durability and a high electrical switching cycle capacity of 100,000 cycles

• Enhanced vibration and shock resistance to ensure long-term reliability and operational readiness

• Sealed housing rated IP67 to prevent moisture and dust ingress, suitable for harsh environments

• Shielded dual M6x1.0 terminals to prevent accidental shorts

• Automotive-grade sealed control wire connectors to keep moisture out of control circuits

• High-temperature rating of 125°C (257°F) for use in engine bays and other high-heat areas

• Intermittent current capacity of 300 amps for up to 3 seconds, ideal for high-startup currents

• Operating voltage range of 17.6-32VDC, suitable for most automotive electrical systems
