This 250A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
IP66-sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High electrical and manual switching endurance delivers 2,000 cycles at full current
High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
4-year warranty - Egis stands behind its products ability to meet the users needs
Specifications:
Continuous Current Amps: 250
Max Voltage: 48
Cycling Endurance: 2,000
Interrupt Current @14 VDC (Amps): 5,000
Interrupt Current @28 VDC (Amps): 3,000
Ingress Protection Rating: IP66
Focal Features
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
Reinforced Mounting
Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.
Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

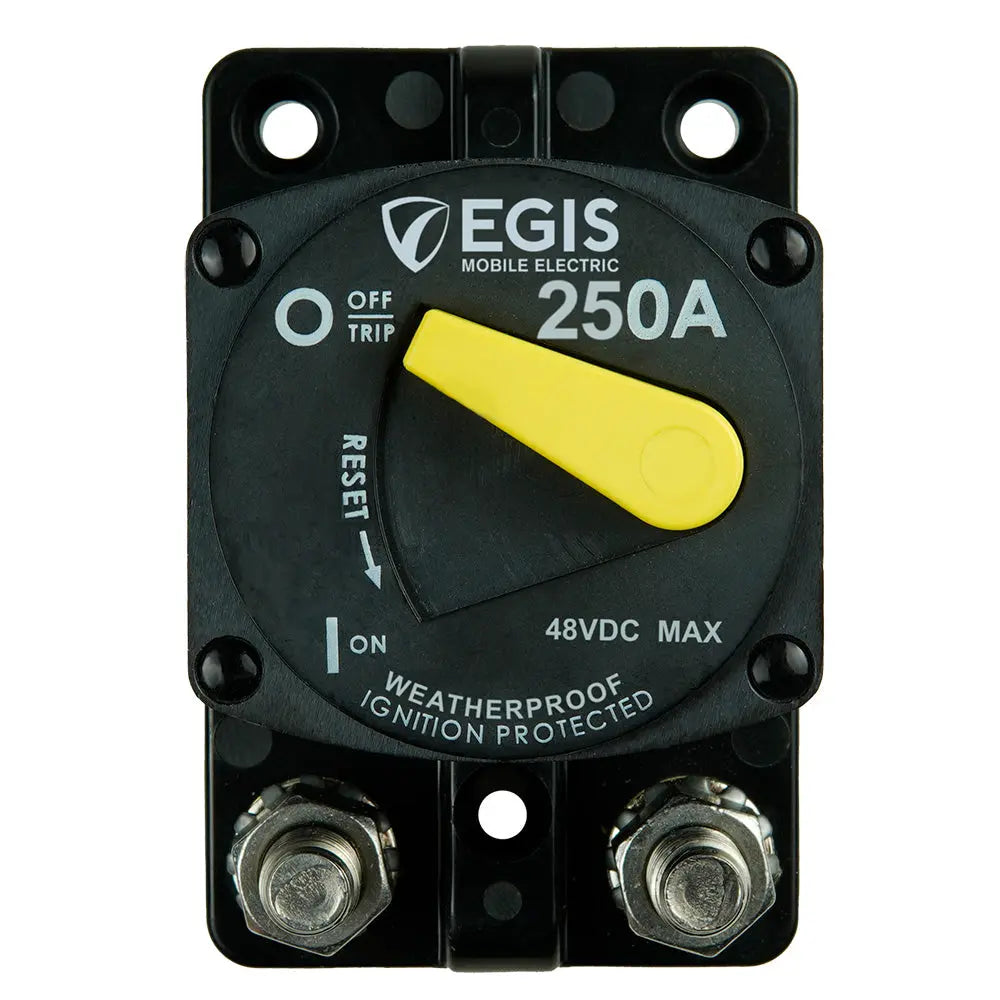

The Egis Mobile Electric 250A Surface Mount 87 Series Circuit Breaker (Part Number: 4704-250) is a high-capacity electrical protection device designed for demanding DC power applications. Engineered to safeguard batteries and wiring against short circuits and over-current conditions, this circuit breaker helps prevent wire insulation damage and potential system failures. Its compact, surface-mount design allows for flexible installation near battery banks or load centers, making maintenance and circuit isolation straightforward for technicians. The breaker’s robust construction and high interrupt current capacity enable it to handle large paralleled battery systems safely and reliably, ensuring your electrical system remains protected under various load conditions.
Features:
IP66-sealed against dust and water intrusion to ensure reliable operation in harsh environments
High voltage (48 Vdc) rating supports 12V, 24V, 36V, and 48V systems with advanced protection capabilities
Electrical and manual switching endurance of 2,000 cycles at full current for long-term durability
High interrupt current ratings of 5,000 amps at 14 VDC and 3,000 amps at 28 VDC allow safe disconnection of large power loads
Reinforced mounting tabs and stainless steel hardware provide corrosion resistance and vibration durability
High-temperature rated, sealed against dust and moisture, suitable for diverse installation environments
High visibility ON/OFF controls facilitate easy operation and circuit management
Made in the USA with high-quality components, ensuring reliability and compliance
