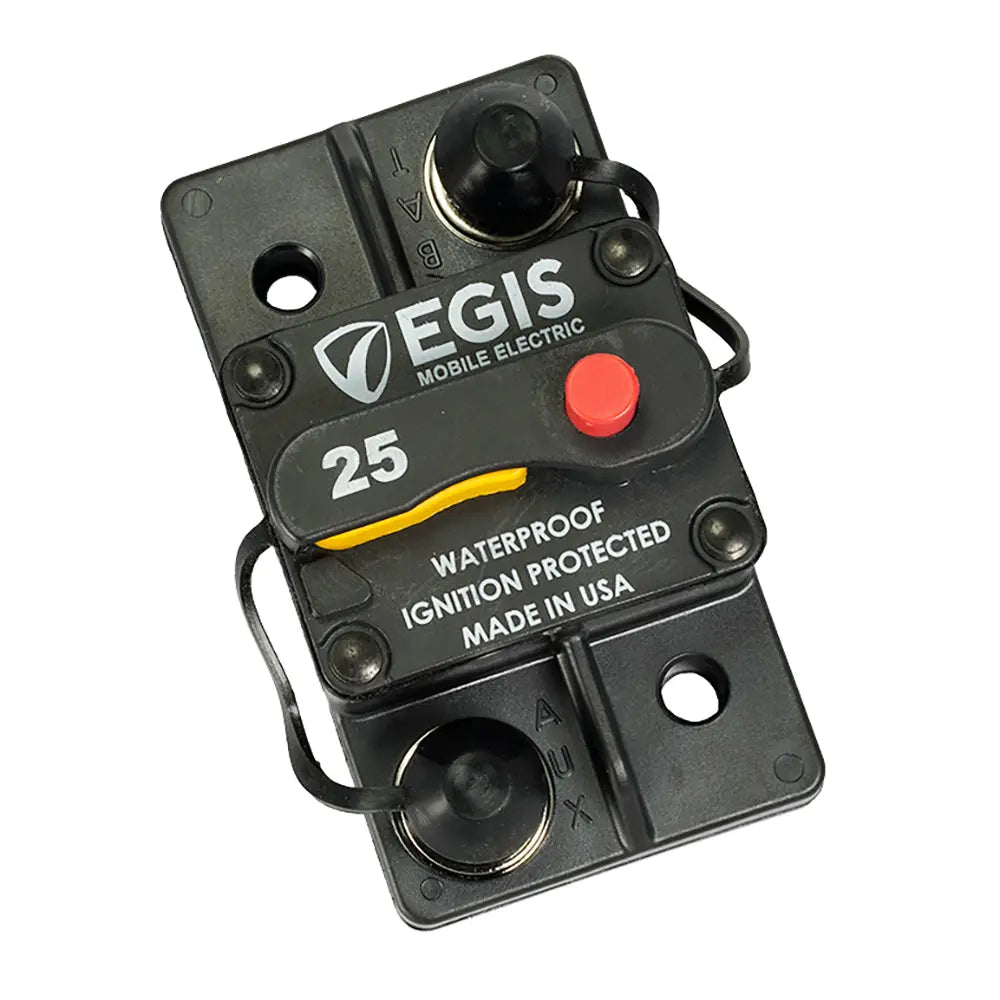

25A Surface Mount Circuit Breaker - 285 Series
This 25A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
- High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty - Egis stands behind its products ability to meet the users needs
Specifications:
- Continuous Current Amps: 25
- Max Voltage: 48
- Cycling Endurance: 100
- Interrupt Current @16 VDC (Amps): 3,000
- Interrupt Current @28 VDC (Amps): 1,500
- Ingress Protection Rating: IP67
Focal Features:
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
Integrated Terminal Insulators
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.
The Egis Mobile Electric 25A Surface Mount Circuit Breaker from the 285 Series offers reliable circuit protection and manual switching for electrical systems operating at 12V, 24V, 36V, and 48V DC. Designed to prevent wiring damage caused by short circuits and over-current loads, this circuit breaker ensures safe operation in demanding environments. Its compact, sealed design makes it ideal for installations where dust and moisture resistance are critical, providing long-term durability and dependable performance. The breaker’s high current interrupt capacity safely manages large battery banks, making it suitable for automotive, RV, marine, and off-grid power systems. With a 4-year warranty, Egis guarantees the quality and longevity of this essential component.
Features:
- Sealed against dust and water intrusion (IP67 rating) for reliable operation in harsh environments
- High Voltage (48 Vdc) Rating supports 12V, 24V, 36V, and 48V systems while providing advanced protection
- High Electrical and Manual Switching Endurance: 6,000 cycles at full current for long-term durability
- High Interrupt Current: safely protects large battery banks with significant available power
- ON/OFF high visibility controls for easy operation and circuit management
- Integrated terminal insulators prevent accidental shorts between positive terminals and grounded surfaces
- Stainless steel hardware and serrated flange nuts resist corrosion and vibration in tough conditions
- Made in the USA with high-quality components ensuring reliability and safety
