Egis Mobile Electric 30A Panel Mount Mini Circuit Breaker - Waterproof Circuit Protection & Disconnect Switch

30A Panel Mount Mini Circuit Breaker

This 30A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 30
• Max Voltage: 42
• CE Marked: Yes
• Interrupt Current @14 VDC (Amps): 3,000
• Cycle Switching Endurance: 4,000
• Ingress Protection Rating: IP66

Focal Features

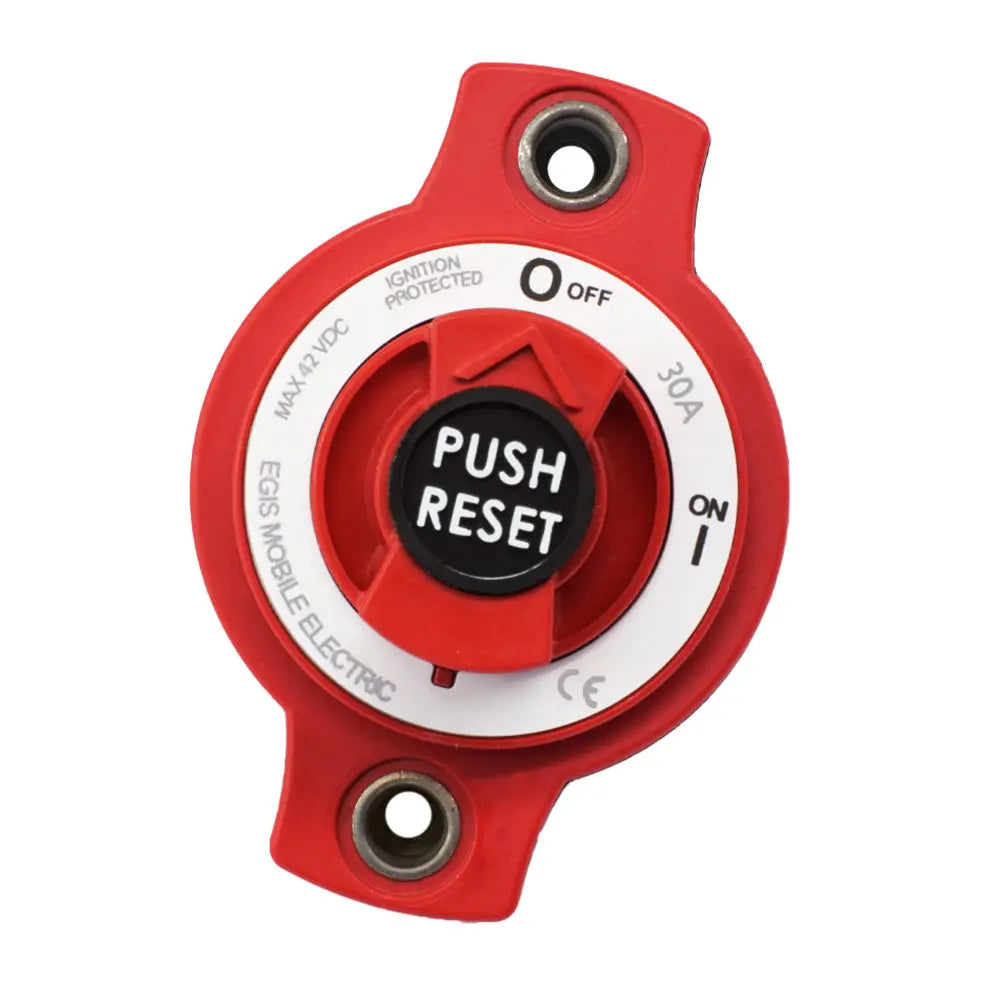

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

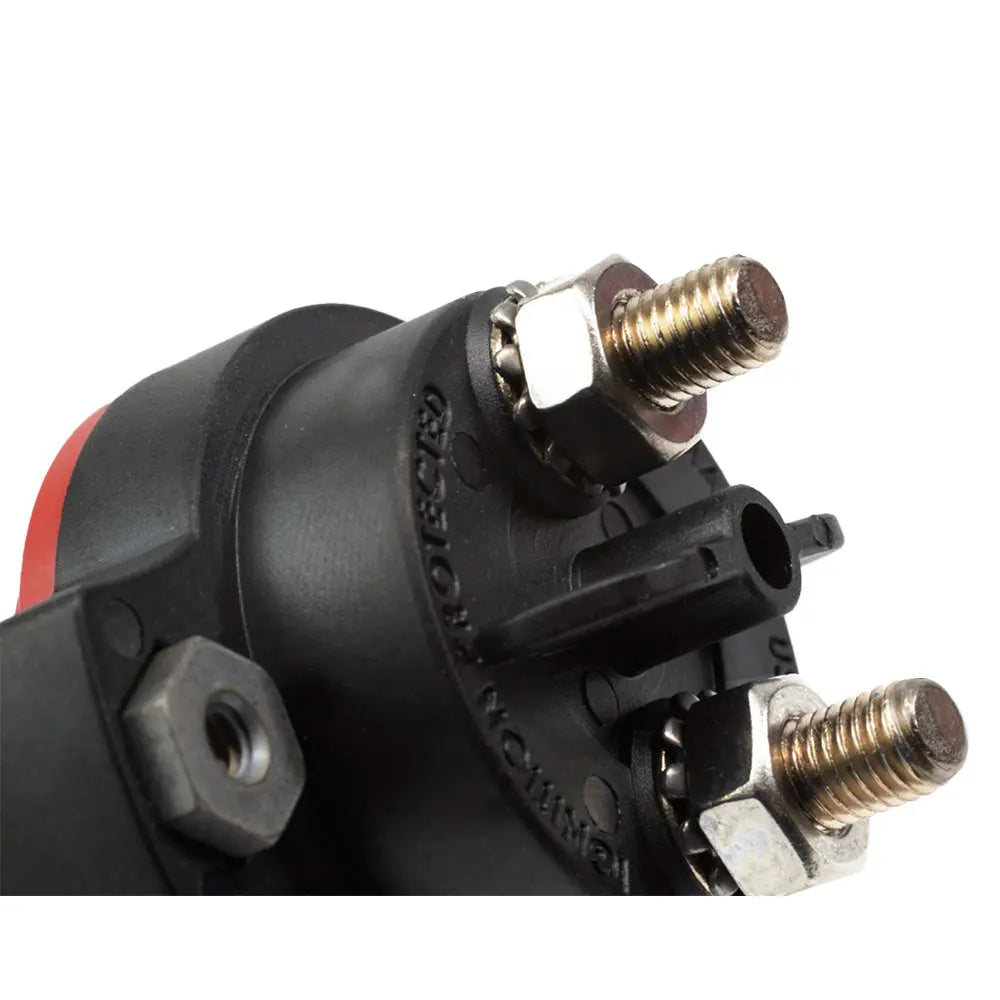

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.

Compact Size

Fit more circuit switching/protection on a smaller panel!

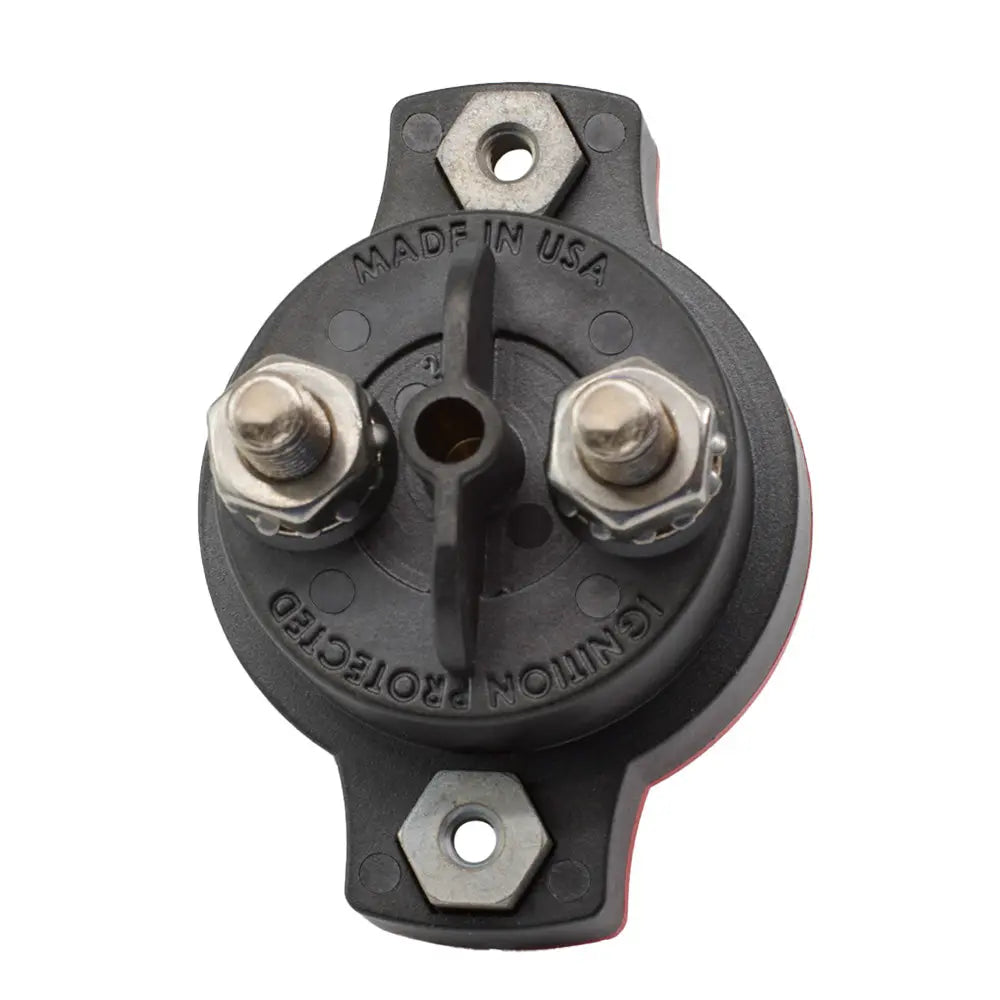

Proudly Made in the USA

Made in the USA of high-quality components.

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 30A Panel Mount Mini Circuit Breaker (Part Number: 4701-30) is a versatile and reliable component designed for electrical circuit protection and switching in demanding environments. This compact device combines a circuit breaker with a disconnect switch, making it ideal for trolling motor applications and other marine or off-road electrical systems. Its dual functionality allows for automatic circuit protection against short circuits and over-current conditions, while also providing manual control to disconnect power for maintenance or safety. The integrated design simplifies wiring and installation, facilitating easy circuit isolation close to the power source, regardless of location. Constructed to withstand harsh conditions, the breaker features an IP66 sealed enclosure that protects against dust and water ingress, ensuring long-term durability and reliable operation. With a 42 VDC rating, it supports 12V, 24V, and 36V systems, making it suitable for a variety of DC applications. The high electrical and manual switching endurance delivers up to 2,000 cycles at full current, providing a durable solution for frequent operation. Additionally, its high interrupt current capability ensures safe disconnection of large battery banks, preventing potential damage during fault conditions. Manufactured in the USA with high-quality components, the breaker boasts corrosion and vibration resistance thanks to stainless steel self-locking hardware, making it suitable for harsh environments. The weatherproof design, rated for high temperatures, ensures consistent performance in outdoor or demanding installation sites. Its compact size allows for more efficient panel layouts, saving space without sacrificing functionality. The Egis 30A Panel Mount Mini Circuit Breaker features an easy-to-operate rotary switch with clear ON/OFF positions, enhancing user convenience. It is also ignition protected, providing additional safety by preventing shorts from positive terminals to grounded surfaces. Backed by a 4-year warranty, this breaker offers peace of mind and reliable performance for demanding electrical systems. Whether used for trolling motors, battery banks, or other DC loads, this breaker provides robust circuit protection, manual control, and environmental resilience to meet the needs of professionals and hobbyists alike.

Features:

• Easy ON/OFF rotary switch for simple operation and visual confirmation

• Stainless steel self-locking hardware for corrosion and vibration resistance

• Weatherproof construction sealed to IP66 standards against dust and water intrusion

• Compact size designed for space-saving installation on panels

• Supports 12V, 24V, and 36V DC applications with a 42 VDC rating

• High electrical and manual switching endurance with 2,000 cycles at full current

• High interrupt current capability to safely disconnect large battery banks

• Ignition protected design to prevent shorts to grounded surfaces

• Made in the USA with high-quality components

• 4-year warranty ensures long-term reliability and customer support
