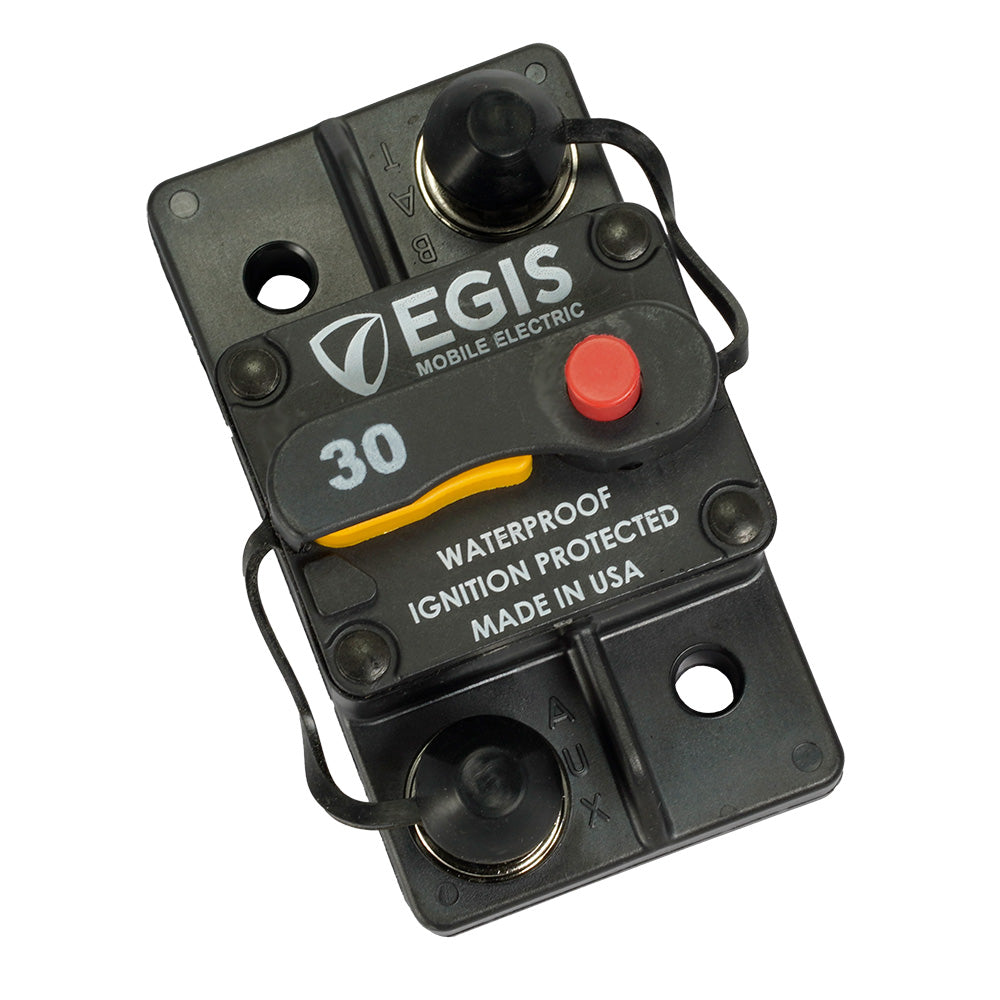

Egis Mobile Electric 30A Surface Mount Circuit Breaker - 285 Series

30A Surface Mount Circuit Breaker - 285 Series

This 30A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems, regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its products ability to meet the users needs

Specifications:

• Continuous Current Amps: 30
• Max Voltage: 48
• Cycling Endurance: 100
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

• ON/OFF High Visibility Controls
• Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
• Integrated Terminal Insulators
• Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
• Stainless Steel Hardware / Serrated Flange Nuts
• Corrosion and vibration resistance for harsh environment applications.
• Proudly Made in the USA
• Made in the USA of high-quality components

The Egis Mobile Electric 30A Surface Mount Circuit Breaker from the 285 Series provides reliable protection for electrical systems operating up to 48 volts DC. Designed for both automatic circuit protection and manual on/off switching, this compact device helps prevent damage caused by short circuits and over-current loads, ensuring the safety and longevity of your electrical wiring. Its sealed enclosure offers protection against dust and water ingress, rated at IP67, making it suitable for demanding environments and outdoor installations. Whether used near battery banks or other power sources, this circuit breaker simplifies circuit isolation and maintenance while delivering dependable performance over time.
Constructed with high-quality materials, the Egis 285 Series breaker features stainless steel hardware and serrated flange nuts, providing excellent corrosion and vibration resistance. The integrated terminal insulators safeguard against accidental shorts between positive terminals and grounded surfaces, enhancing safety during operation. Its high visibility ON/OFF controls facilitate easy status monitoring, ensuring quick and accurate operation in critical situations. With a high electrical/manual switching endurance rated at 6,000 cycles, this breaker is built to withstand frequent toggling without compromising performance. The device’s robust design supports large battery banks, thanks to its high interrupt current ratings at different voltages, offering flexible protection for diverse power systems.
Manufactured in the USA, the Egis 30A Surface Mount Circuit Breaker also includes a 4-year warranty, reflecting Egis Mobile Electric’s confidence in its durability and reliability. Its advanced features make it an ideal choice for marine, RV, automotive, and other off-grid power applications where durability and safety are paramount. The breaker’s compact size and high-quality construction ensure easy integration into existing electrical setups, providing peace of mind through superior circuit protection and manual control capabilities.

Features:

• Sealed against dust and water intrusion with IP67 rating for reliable protection in harsh environments

• Supports up to 48 VDC with high interrupt current ratings for large battery banks

• High electrical and manual switching endurance rated at 6,000 cycles for durability

• Integrated terminal insulators prevent inadvertent shorts between positive terminals and grounded surfaces

• High visibility ON/OFF controls for easy operation and status monitoring

• Corrosion and vibration resistant stainless steel hardware and serrated flange nuts

• Manufactured in the USA with high-quality components and a 4-year warranty
