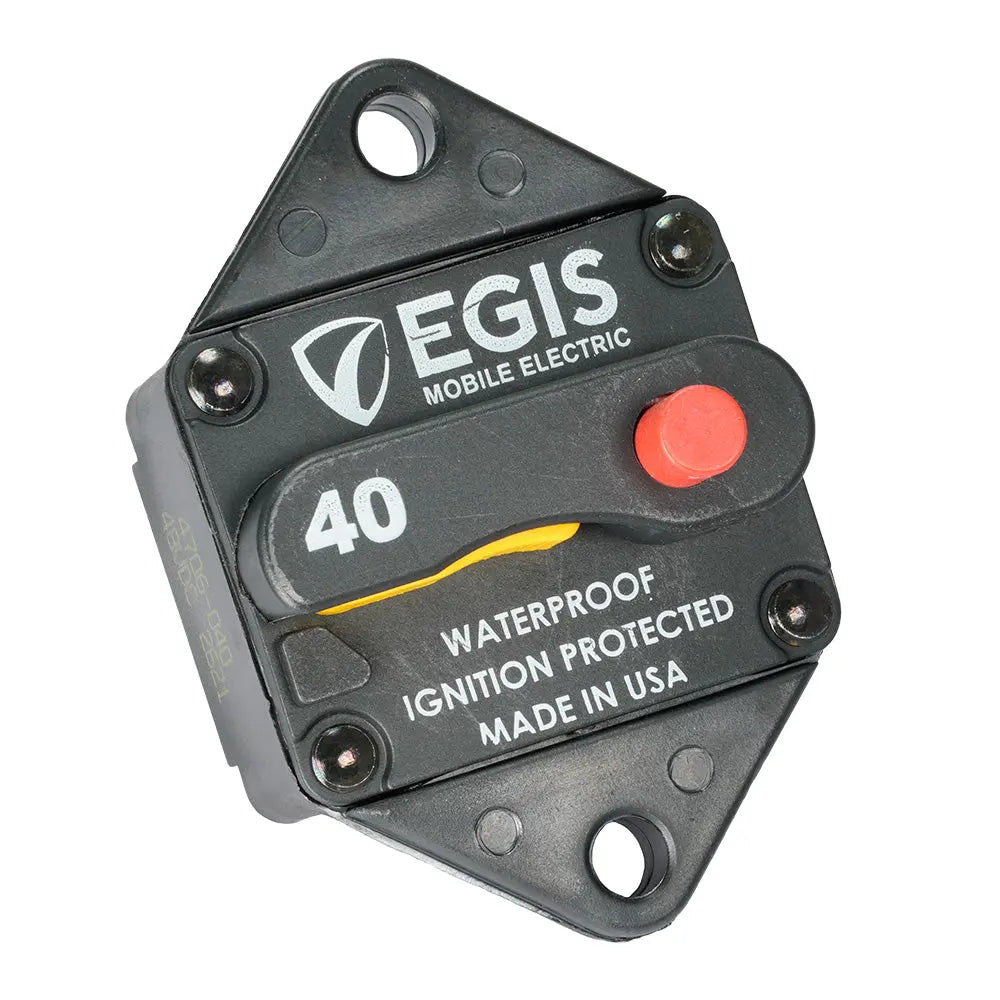

Egis Mobile Electric 40A Panel Mount Circuit Breaker - 285 Series for Reliable Over-Current Protection

40A Panel Mount Circuit Breaker - 285 Series

This 40A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 40
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high temperature rating for all installation locations.

Panel Mount Flange

Provides rear/front panel installation options.

Stainless Steel Hardware / KEPS Locking Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 40A Panel Mount Circuit Breaker from the 285 Series is designed to safeguard electrical systems against short circuits and over-current conditions. Its robust construction ensures dependable circuit protection, preventing damage to wiring and components while providing easy manual control. Suitable for a variety of applications, this circuit breaker combines automatic circuit interruption with manual operation, making it an essential component for both maintenance and operational safety.

Built for versatility, this breaker supports high-voltage DC applications up to 48V, making it ideal for use in automotive, marine, and renewable energy systems. Its sealed design offers IP67-rated protection against dust and water ingress, ensuring reliable performance in harsh environments. The high switching endurance of 6,000 cycles at full current allows for frequent operation without degradation, and the high interrupt current capability safely handles large parallel battery banks. Additionally, its stainless steel hardware and KEPS locking nuts provide corrosion and vibration resistance, suitable for demanding conditions.

This breaker features high-visibility ON/OFF controls for quick status recognition and versatile mounting options with a panel flange for front or rear installation. Its high temperature rating supports installation in diverse environments, from outdoor to industrial settings. Made in the USA with high-quality components, the Egis 40A Circuit Breaker is backed by a 4-year warranty, reflecting its durability and reliability. Whether used in vehicle electrical systems or stationary power setups, this breaker offers a reliable solution to protect your electrical investments efficiently.

Note: This product may contain chemicals known to the State of California to cause cancer or reproductive harm. For detailed information, visit P65Warnings.ca.gov.

Features:

• Sealed against dust and water intrusion for reliable operation in harsh environments

• Supports high-voltage DC applications up to 48V, suitable for 12V, 24V, 36V, and 48V systems

• High electrical and manual switching endurance with 6,000 cycles at full current

• High interrupt current capability for large battery banks, with 5,000A at 16VDC and 3,000A at 28VDC

• Panel mount flange allows for flexible installation options

• Stainless steel hardware and KEPS locking nuts resist corrosion and vibration

• High temperature rated for diverse installation environments

• Made in the USA with high-quality components, backed by a 4-year warranty
