Egis Mobile Electric 40A Panel Mount Mini Circuit Breaker with IP66 Sealed Protection

40A Panel Mount Mini Circuit Breaker

This 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 40
• Max Voltage: 42
• CE Marked: Yes
• Interrupt Current @14 VDC (Amps): 3,000
• Cycle Switching Endurance: 4,000
• Ingress Protection Rating: IP66

Focal Features

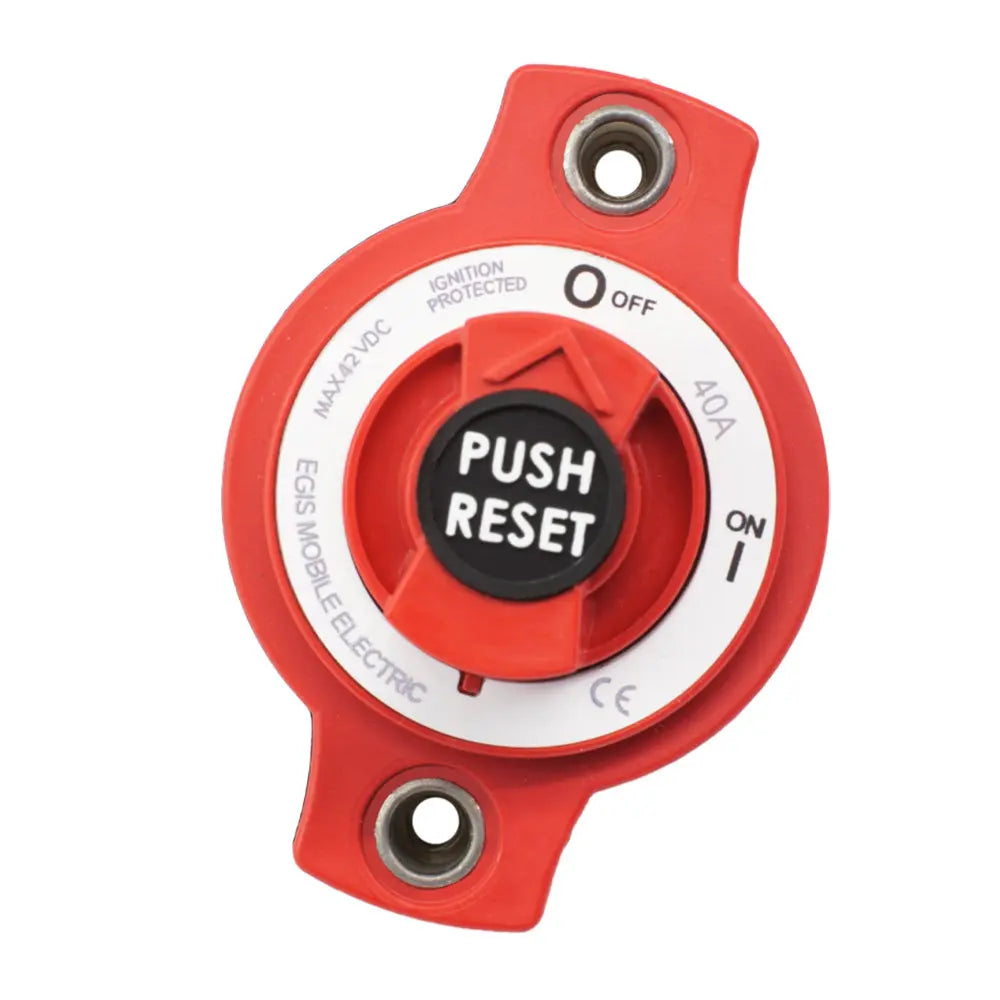

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

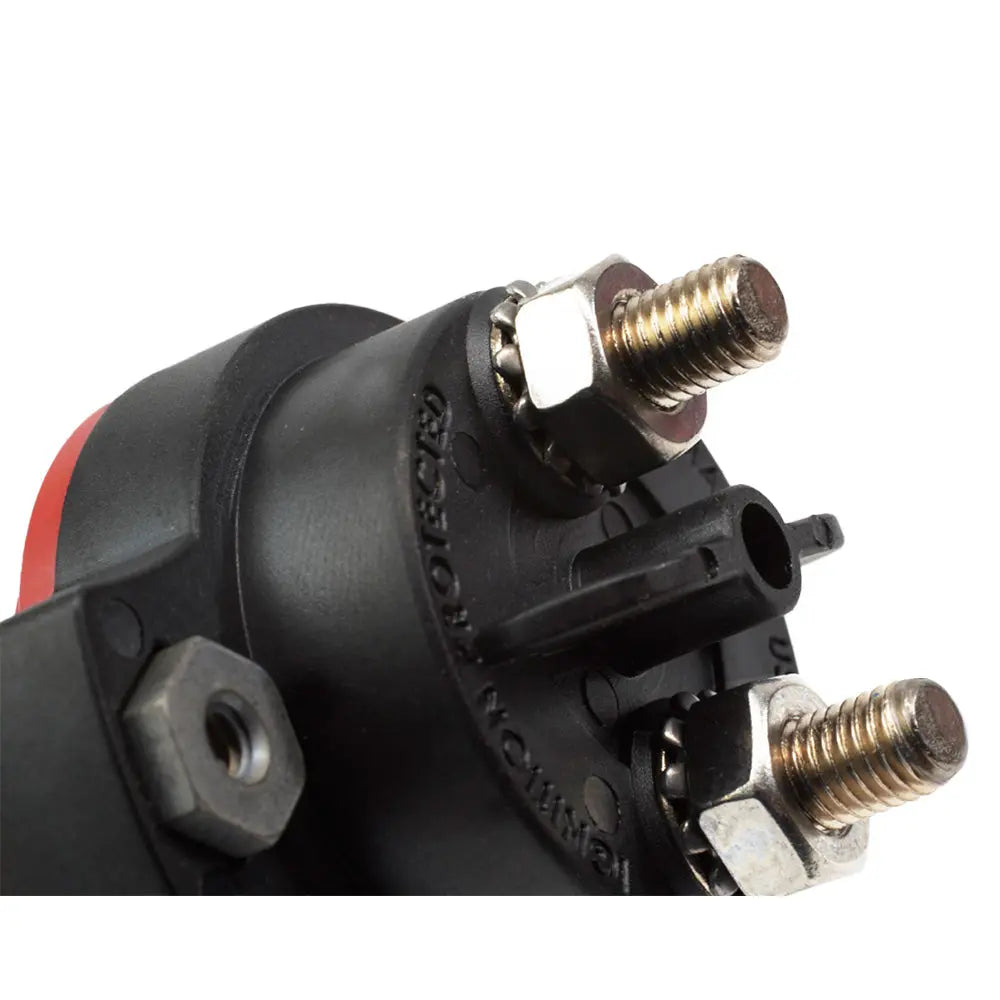

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.

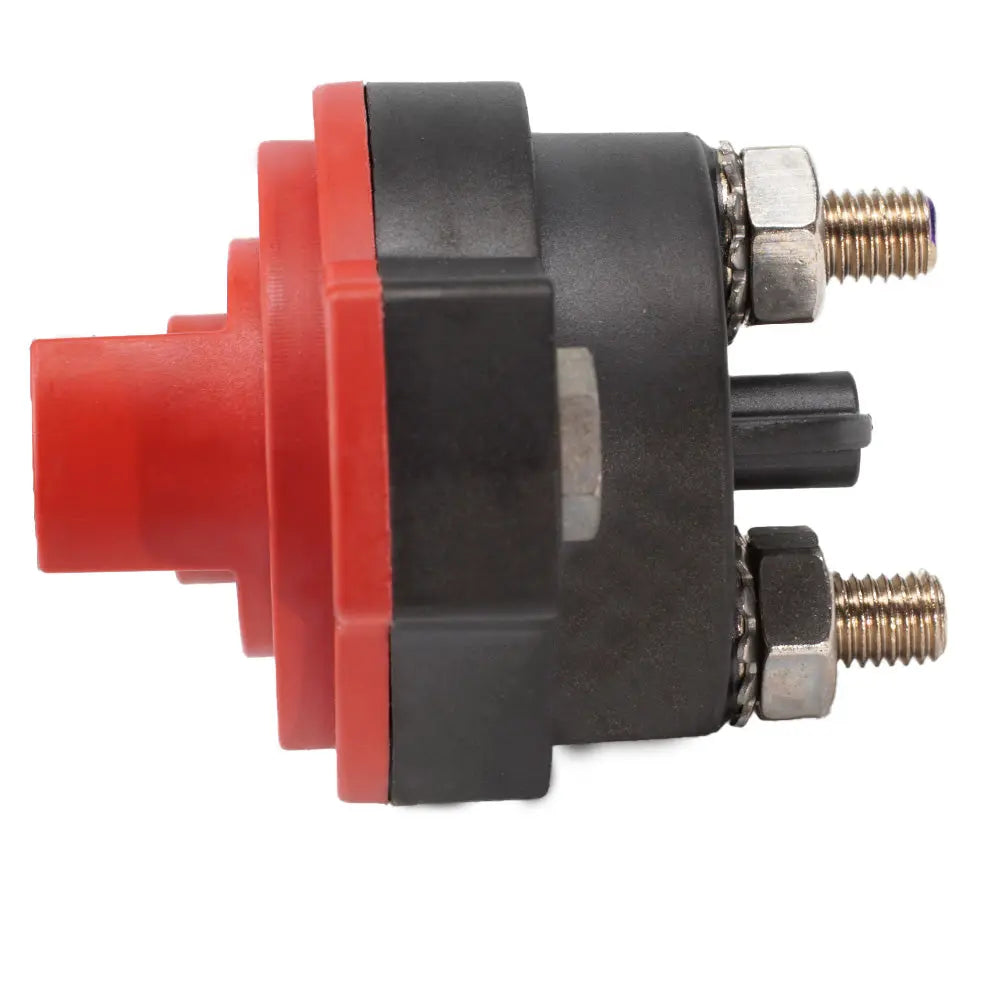

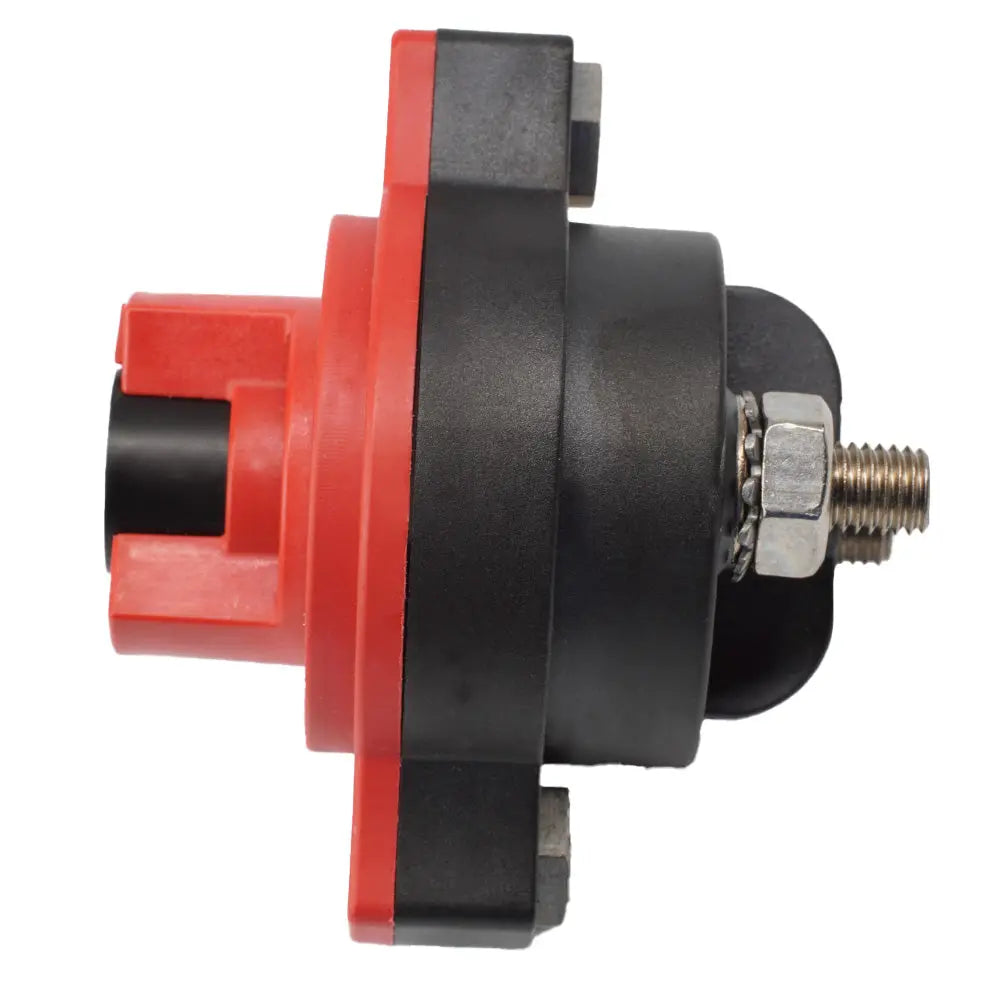

Compact Size

Fit more circuit switching/protection on a smaller panel!

Proudly Made in the USA

Made in the USA of high-quality components.

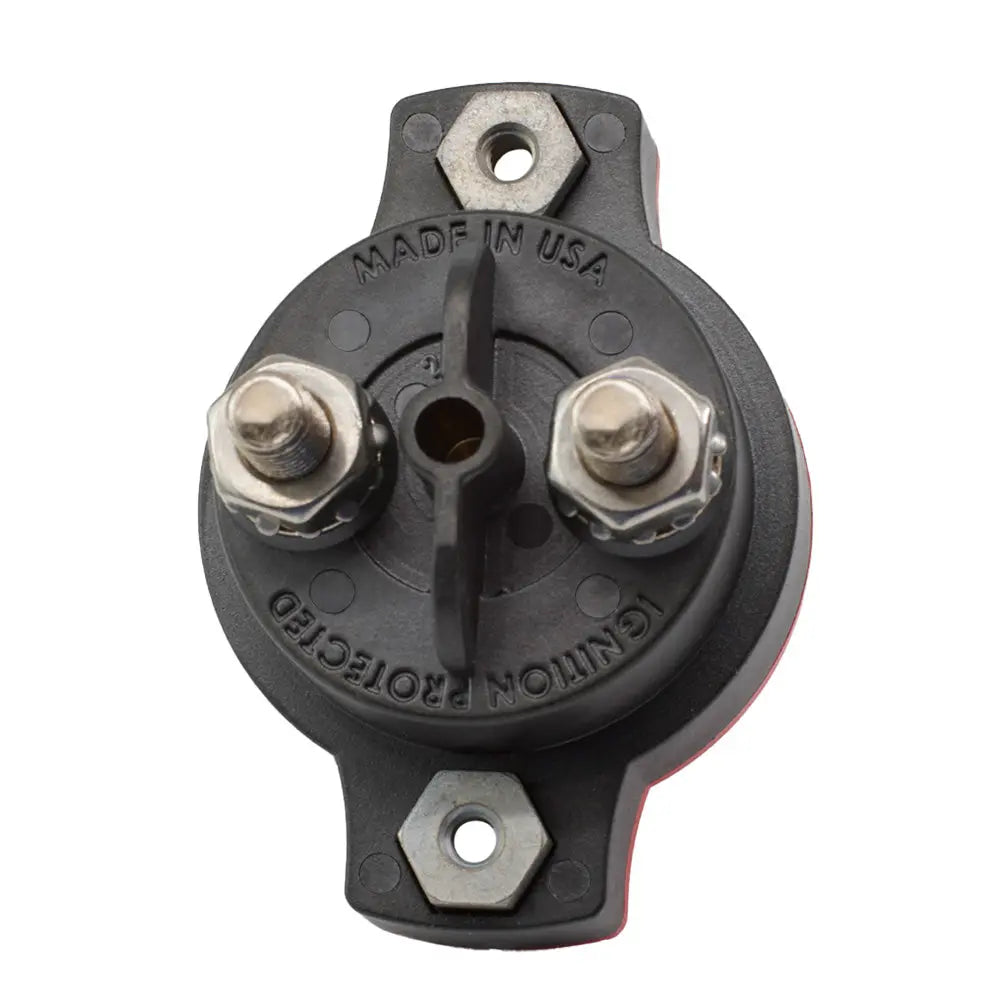

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric Part Number 4701-40 is a versatile 40-amp panel mount mini circuit breaker designed for reliable electrical circuit protection and switching. Featuring a compact design, this device combines an automatic circuit breaker with a manual ON/OFF switch, making it ideal for trolling motor applications and other DC systems requiring quick circuit isolation. Its integrated features help prevent damage caused by short circuits and overcurrent loads, safeguarding wiring and components in marine, RV, and other mobile environments. The breaker’s dual functionality simplifies circuit management by allowing convenient load circuit maintenance without additional disconnects.
Constructed with durability in mind, the Egis 40A circuit breaker is IP66 rated, providing robust protection against dust and water ingress, ensuring long-term performance even in harsh conditions. Its high current interrupt capacity safely handles large paralleled battery banks, supporting applications across 12V, 24V, and 36V DC systems. With a rated voltage of 42V DC, it is suitable for a wide range of marine and off-road electrical setups. The breaker endures up to 2,000 switching cycles at full current, demonstrating excellent durability for repeated use, and it features a high interrupt current of 3,000A at 14VDC for added safety.
Designed for ease of operation, the breaker includes an intuitive rotary switch for simple ON/OFF control, and stainless steel self-locking hardware ensures resistance to corrosion and vibration. Its weatherproof construction makes it suitable for installation in demanding environments, and its compact size allows multiple circuits to be managed within limited panel space. Proudly manufactured in the USA, the Egis circuit breaker is built with high-quality components that meet rigorous standards. Additionally, it is ignition protected, safeguarding against accidental shorts from positive terminals to grounded surfaces. This product comes with a 4-year warranty, reflecting Egis’ confidence in its performance and durability.
Whether used for trolling motors, battery disconnects, or other DC circuit applications, this mini circuit breaker offers a dependable, space-saving solution with advanced protection features. It is an essential component for ensuring electrical safety and system reliability in mobile and marine environments.

Features:

• Easy ON/OFF Rotary Switch: Allows simple and clear circuit control with visual switch position recognition

• Stainless Steel Self-Locking Hardware: Ensures corrosion resistance and durability against vibrations in harsh environments

• Weatherproof Construction: Sealed against dust and moisture with high-temperature ratings for versatile installation locations

• Compact Size: Enables installation of multiple circuits within limited panel space for efficient system design

• Made in the USA: Crafted with high-quality components for reliability and performance

• Ignition Protected: Safeguards against accidental shorts from positive terminals to grounded surfaces

• High Interrupt Current: Capable of safely protecting circuits connected to large battery banks with significant power

• Durable Switching Endurance: Supports up to 2,000 cycles at full current for long-lasting operation
