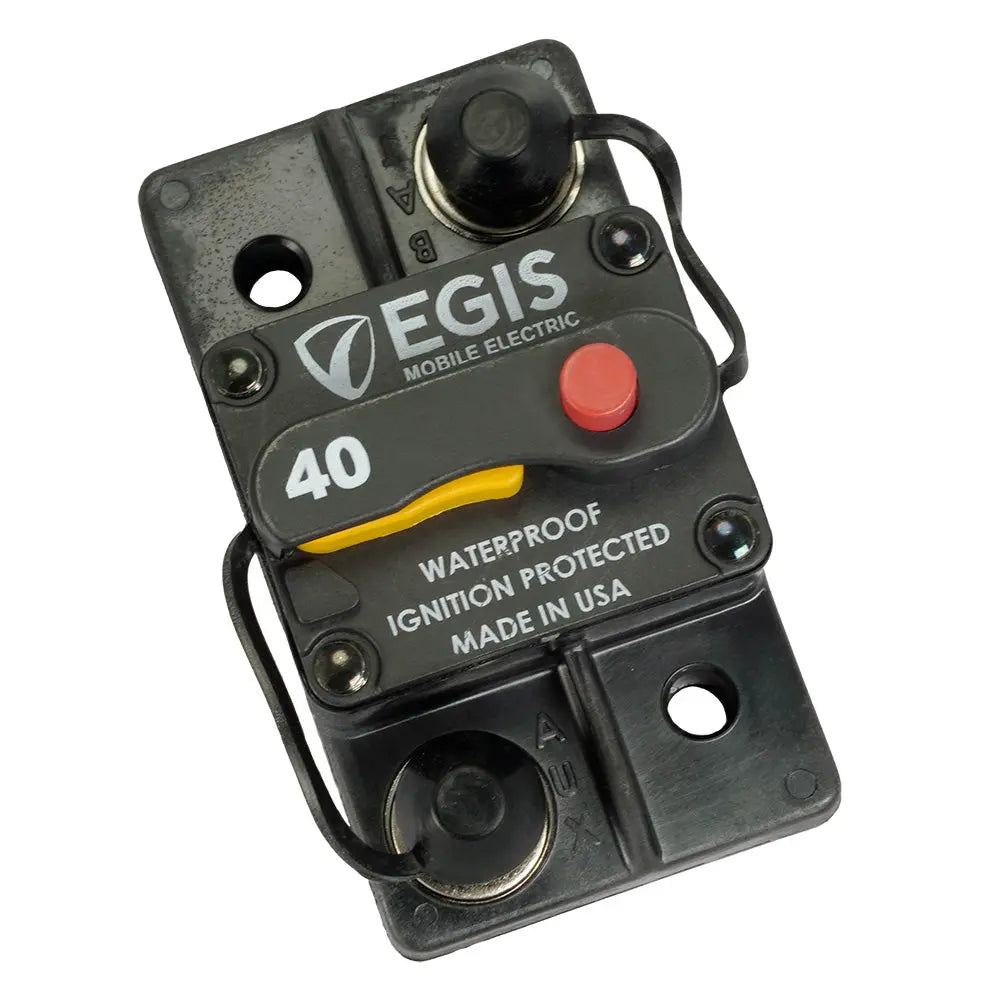

Egis Mobile Electric 40A Surface Mount Circuit Breaker - 285 Series

40A Surface Mount Circuit Breaker - 285 Series

This 40A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its products ability to meet the users needs

Specifications:

• Continuous Current Amps: 40
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high temperature rating for all installation locations.

Integrated Terminal Insulators

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 40A Surface Mount Circuit Breaker from the 285 Series offers reliable protection for electrical circuits in a compact and versatile design. Designed to prevent short circuits and over-current conditions, this circuit breaker safeguards wiring insulation and equipment from damage. Its robust construction and sealing against dust and water intrusion make it suitable for demanding environments, ensuring long-term performance in various applications. With a high voltage rating of up to 48 VDC, it supports 12, 24, 36, and 48 VDC systems, providing flexibility for different power setups. The breaker's high electrical and manual switching endurance allows for up to 6,000 switching cycles at full current, making it ideal for systems requiring frequent load management and maintenance. Its high interrupt current capability ensures safe disconnection of large battery banks or high-power circuits, contributing to overall system safety and reliability. The product features integrated terminal insulators to prevent accidental shorts and stainless steel hardware with serrated flange nuts, offering corrosion and vibration resistance for harsh environments. Made in the USA, the Egis 40A Surface Mount Circuit Breaker combines advanced functionality with durable construction, backed by a 4-year warranty for peace of mind. Its high-visibility ON/OFF controls facilitate easy operation, while its sealed design ensures consistent performance even in dusty or moist conditions. Installation flexibility and robust protection make this circuit breaker an excellent choice for marine, RV, solar, and industrial applications, providing seamless circuit management and safety assurance in a compact form factor.

Features:

• Sealed against dust and water intrusion for reliable long-term protection

• Supports up to 48 VDC, compatible with 12, 24, 36, and 48 V systems

• High switching endurance: 6,000 cycles at full current

• High interrupt current capacity for large battery banks

• Integrated terminal insulators prevent accidental shorts

• Corrosion and vibration resistant stainless steel hardware

• High visibility ON/OFF controls for easy operation

• Made in the USA with high-quality components
