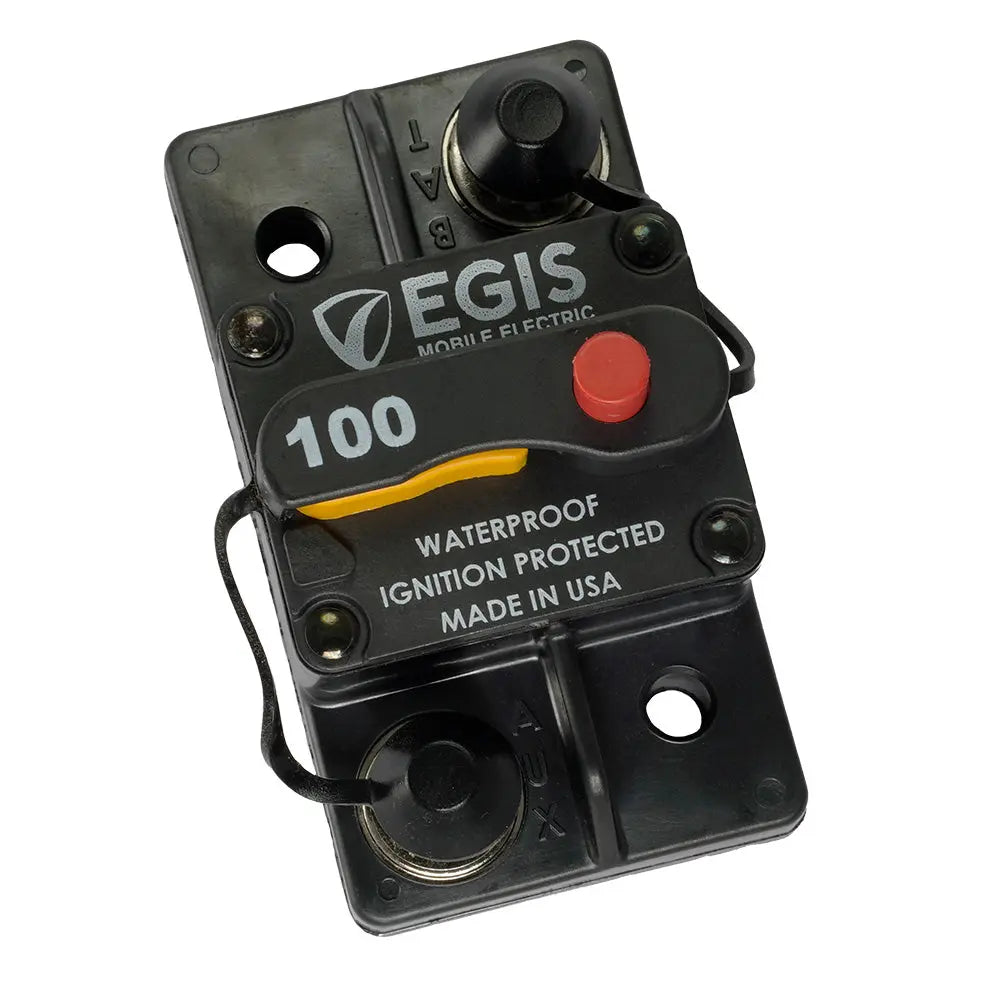

Egis Mobile Electric 4703-100 100A Surface Mount Circuit Breaker – 285 Series for Automotive and Marine Applications

100A Surface Mount Circuit Breaker - 285 Series

This 100A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 100
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high temperature rating for all installation locations.

Integrated Terminal Insulators

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4703-100 is a reliable 100-ampere surface mount circuit breaker designed for protecting electrical systems against short circuits and over-current conditions. Its robust construction ensures protection for wiring and components, preventing insulation damage and potential fire hazards. This compact device combines automatic circuit protection with manual switching, allowing users to easily isolate circuits for maintenance or emergency shutdowns without sacrificing space or convenience.
Built to withstand harsh environments, the Egis 4703-100 features an ingress protection rating of IP67, making it dust-tight and water-resistant. Its sealed design ensures long-lasting performance in demanding conditions, whether installed in automotive, marine, or industrial systems. The high voltage rating of 48 VDC supports 12V and 24V systems while providing enhanced protection for higher voltage applications like 36V and 48VDC setups. The breaker’s high electrical and manual switching endurance of 6,000 cycles guarantees durability over time, reducing the need for frequent replacements.
Designed with safety and ease of use in mind, this circuit breaker includes high-visibility ON/OFF controls for quick identification and operation. Integrated terminal insulators prevent accidental shorts by shielding positive terminals from grounded surfaces. Its corrosion-resistant stainless steel hardware and serrated flange nuts ensure secure mounting and resistance to vibration and corrosion, making it suitable for use in rugged environments. Proudly made in the USA, the Egis 4703-100 is backed by a 4-year warranty, reflecting its quality and reliability. Whether used in battery banks, RVs, boats, or other electrical systems, this circuit breaker provides dependable protection and switching functionality that meets demanding industry standards and safety requirements.
Note: This product may contain chemicals known to the State of California to cause cancer or reproductive harm. For more details, visit P65Warnings.ca.gov.

Features:

• Sealed against dust and water intrusion for reliable long-term operation

• Supports 12V, 24V, 36V, and 48VDC systems with a 48V rating

• High switching endurance of 6,000 cycles at full current

• High interrupt current capacity: 5,000A at 16VDC and 3,000A at 28VDC

• High-visibility ON/OFF controls for easy operation

• Integrated terminal insulators prevent accidental shorts

• Corrosion and vibration resistant stainless steel hardware

• Made in the USA with high-quality components

• IP67 ingress protection ensures dust-tight and water-resistant performance

• Suitable for automotive, marine, and industrial electrical systems
