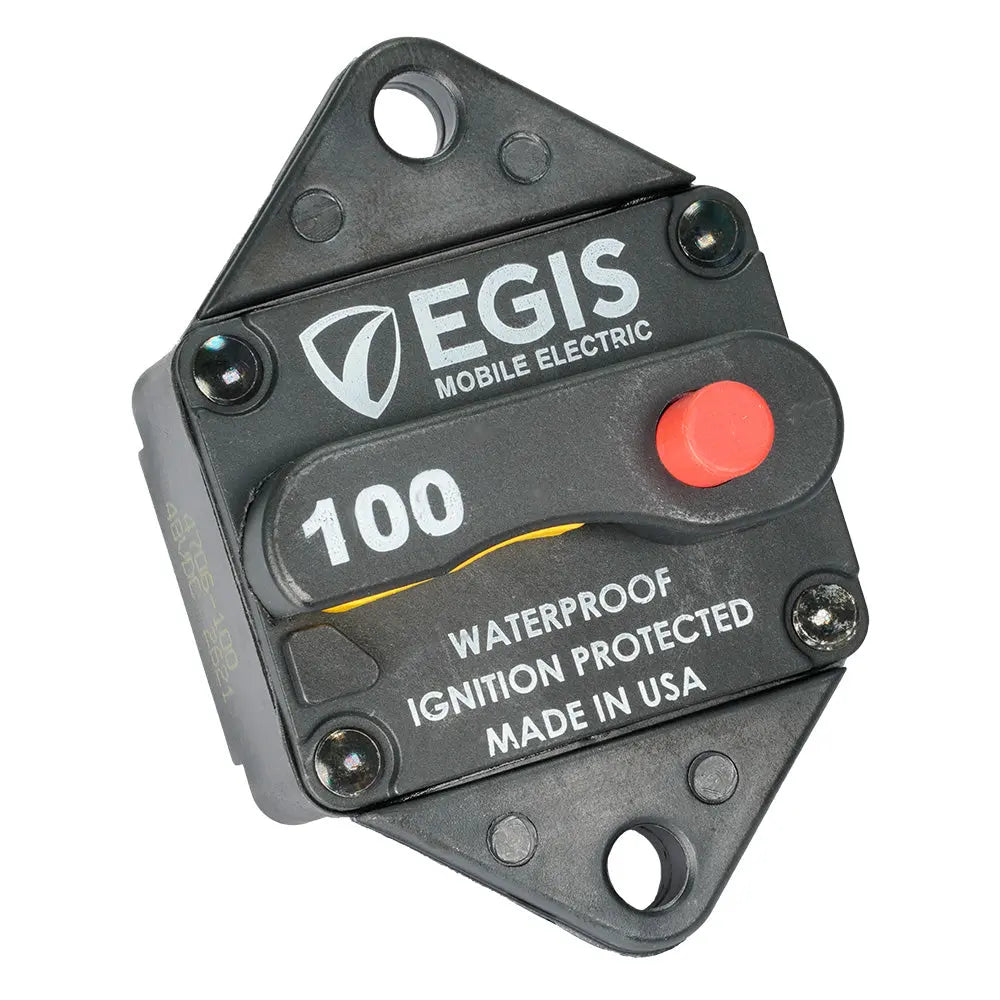

Egis Mobile Electric 4706-100 100A Panel Mount Circuit Breaker - 285 Series

100A Panel Mount Circuit Breaker - 285 Series

This 100A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 100
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Panel Mount Flange

Provides rear/front panel installation options.

Stainless Steel Hardware / KEPS Locking Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4706-100 is a reliable 100-amp panel mount circuit breaker designed for both automatic protection and manual switching. Its robust construction ensures effective circuit protection against short circuits and over-current conditions, safeguarding wiring and preventing insulation damage. Ideal for use in various electrical systems, this breaker provides a compact solution that can be mounted adjacent to battery banks, facilitating easy circuit isolation and maintenance. Its sealed design offers protection against dust and water, ensuring long-term performance even in harsh environments. This feature makes it suitable for applications where durability and dependable operation are critical, such as in RVs, boats, and off-grid power systems. The breaker supports high-voltage DC applications up to 48 volts, making it versatile for 12, 24, 36, and 48 VDC systems, providing an effective alternative to fuses with enhanced protection capabilities. With a high manual switching endurance of 6,000 cycles at full current, it offers long-lasting operational reliability. The high interrupt current ratings enable safe disconnection of large battery banks, preventing damage during fault conditions, and the product comes backed by a 4-year warranty for added confidence. Designed with user-friendly features, the breaker includes high-visibility ON/OFF controls and stainless steel hardware with KEPS locking nuts, ensuring corrosion and vibration resistance for challenging environments. Made in the USA with high-quality components, the Egis 4706-100 is a dependable choice for electrical circuit protection in demanding applications. Its IP67 ingress protection rating guarantees dust-tight and water-resistant operation, making it suitable for outdoor and rugged installations. This circuit breaker combines ease of installation with durable construction, providing a vital safety component for electrical systems that require reliable, high-current circuit protection and manual control in one compact unit.

Features:

• Sealed against dust and water intrusion for reliable operation

• Supports 48 VDC high voltage rating, suitable for 12, 24, 36, and 48 VDC systems

• High electrical and manual switching endurance with 6,000 cycles at full current

• High interrupt current ratings for safe disconnection of large battery banks

• Includes high-visibility ON/OFF controls for easy operation

• Panel mount flange allows flexible installation options

• Constructed with stainless steel hardware and KEPS locking nuts for corrosion and vibration resistance

• Made in the USA with high-quality components

• Ingress Protection Rating: IP67 for dust-tight and water-resistant performance

• Backed by a 4-year warranty for assured durability
