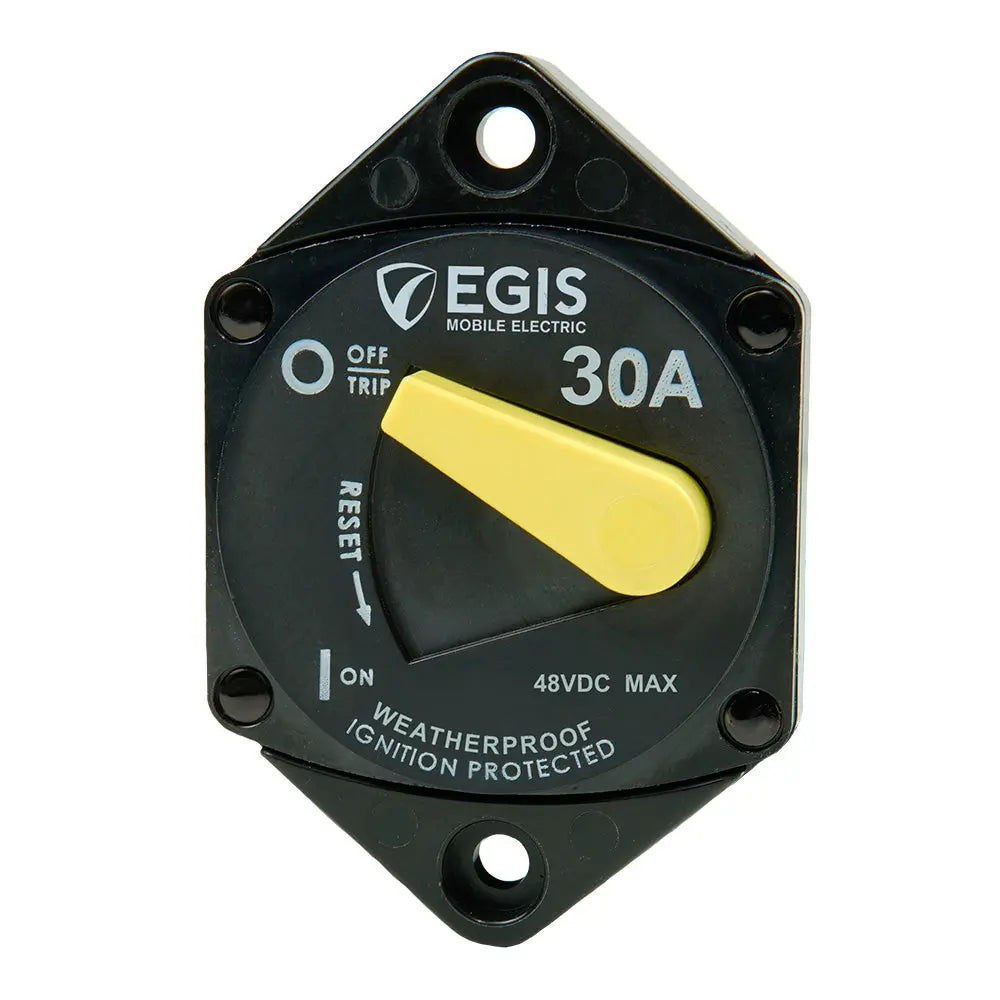

Egis Mobile Electric 4707-030 30A Panel Mount 87 Series Circuit Breaker for Reliable Battery and Circuit Protection

30A Panel Mount 87 Series Circuit Breaker

This 30A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 30
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Circular Design

Compatible with circular cutout enables easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4707-030 30A Panel Mount 87 Series Circuit Breaker offers robust electrical circuit protection tailored for demanding applications. Designed to safeguard against short circuits and thermal overloads, this circuit breaker features a weatherproof IP66 sealed case, ensuring reliable performance even in harsh environments. Its high-voltage circuit interrupt capability makes it suitable for large battery banks connected in series or parallel, providing critical protection for high-power systems. The circular cutout mounting style facilitates quick and secure installation into panels, making it ideal for both mobile and stationary electrical setups.

This circuit breaker combines automatic overload protection with manual switching, allowing users to easily isolate circuits for maintenance or emergency shutdowns. Its high endurance rating supports up to 2,000 switching cycles at full current, ensuring longevity in frequent operation scenarios. With a 48 Vdc rating, it effortlessly supports 12, and 24 Vdc applications, while offering advanced protection for 36 and 48 Vdc systems. Built with corrosion-resistant stainless steel hardware and serrated flange nuts, it withstands vibration and harsh environmental conditions, making it suitable for outdoor use.

The Egis 87 Series Circuit Breaker is engineered for high reliability, featuring an interrupt current capacity of up to 5,000 amps at 14 VDC and 3,000 amps at 28 VDC. Its design includes high-visibility ON/OFF controls for quick status recognition, and its compact circular form allows for seamless panel integration. Proudly manufactured in the USA with high-quality components, it comes with a 4-year warranty, underscoring Egis Mobile Electric's commitment to durability and performance. This breaker is an essential component for ensuring the safety and efficiency of electrical systems in various industrial, automotive, and renewable energy applications.

Features:

• IP66 sealed enclosure ensures dust and water resistance for reliable long-term operation

• Supports 48 Vdc high-voltage applications, suitable for 12, 24, 36, and 48 Vdc systems

• High electrical and manual switching endurance with 2,000 cycles at full current

• High interrupt current capacity: safely protects large battery banks and power systems

• Easy panel installation with circular cutout design for quick mounting

• High-visibility ON/OFF controls for simple operation and status monitoring

• Corrosion and vibration-resistant stainless steel hardware and serrated flange nuts

• Proudly made in the USA, built with high-quality components

• Includes a 4-year warranty for added peace of mind
