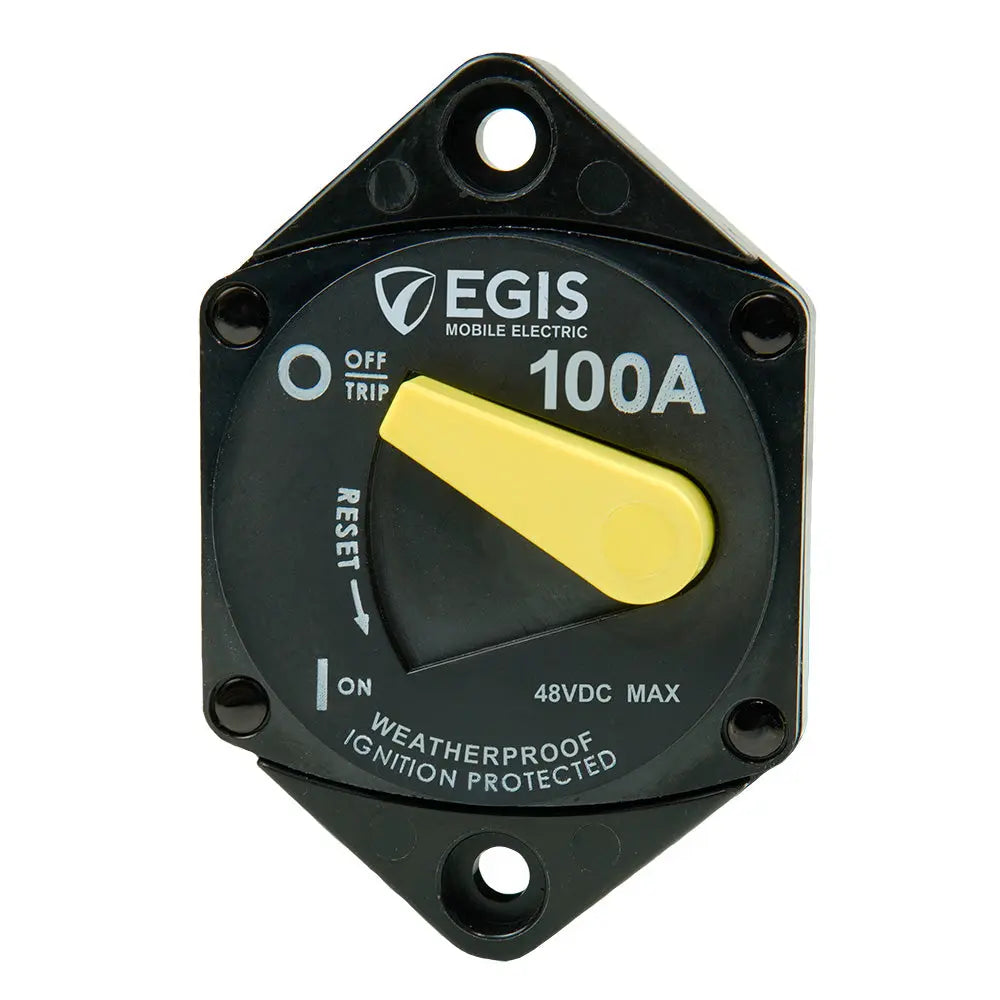

Egis Mobile Electric 4707-100 100A Panel Mount Circuit Breaker with IP66 Sealing and High-Current Protection

100A Panel Mount 87 Series Circuit Breaker

This 100A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 100
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Circular Design

Compatible with circular cutout enables easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4707-100 100A Panel Mount Circuit Breaker offers reliable electrical circuit protection suitable for both industrial and mobile applications. Designed with a weatherproof IP66 sealed case, this circuit breaker ensures dependable operation in harsh environments, resisting dust and water intrusion to safeguard your electrical systems over time. Its robust construction supports high-voltage (48 Vdc) operation, making it ideal for 12, 24, 36, and 48 Vdc systems, including large battery banks where high interrupt current is essential for safety and system integrity. The breaker combines automatic circuit protection with manual switch capabilities, allowing for easy load circuit isolation and maintenance, all within a compact, circular design that facilitates straightforward panel installation.

Built for durability, this breaker endures up to 2,000 switching cycles at full load, providing long-term service life for critical applications. Its high interrupt current capacity (5,000 amps at 14 VDC and 3,000 amps at 28 VDC) offers enhanced safety when managing large power sources, preventing circuit damage during faults. The inclusion of stainless steel hardware and serrated flange nuts ensures resistance to corrosion and vibration, making it suitable for rugged environments. The high-temperature rated components enable installation in diverse locations, from mobile setups to stationary systems, without concern for overheating or environmental damage. Additionally, the high-visibility ON/OFF controls improve operational safety, allowing quick and clear circuit status recognition.

Manufactured in the USA with high-quality materials, the Egis 4707-100 circuit breaker is backed by a 4-year warranty, reflecting confidence in its durability and performance. Whether used for protecting electrical circuits from overloads or providing manual switching in battery systems, this circuit breaker offers a comprehensive solution that combines safety, reliability, and ease of installation in a compact, corrosion-resistant package.

Features:

• IP66 sealed case provides dust and water resistance for reliable long-term operation

• Supports high-voltage (48 Vdc) applications, suitable for 12, 24, 36, and 48 Vdc systems

• High electrical and manual switching endurance with 2,000 cycles at full current

• High interrupt current capacity (5,000 amps at 14 VDC, 3,000 amps at 28 VDC) for large battery banks

• Circular design with compatible round cutout for easy panel installation

• High-visibility ON/OFF controls for operational safety

• Corrosion and vibration resistant stainless steel hardware and serrated flange nuts

• Made in the USA with durable, high-quality components

• Weatherproof case ensures protection against environmental elements
