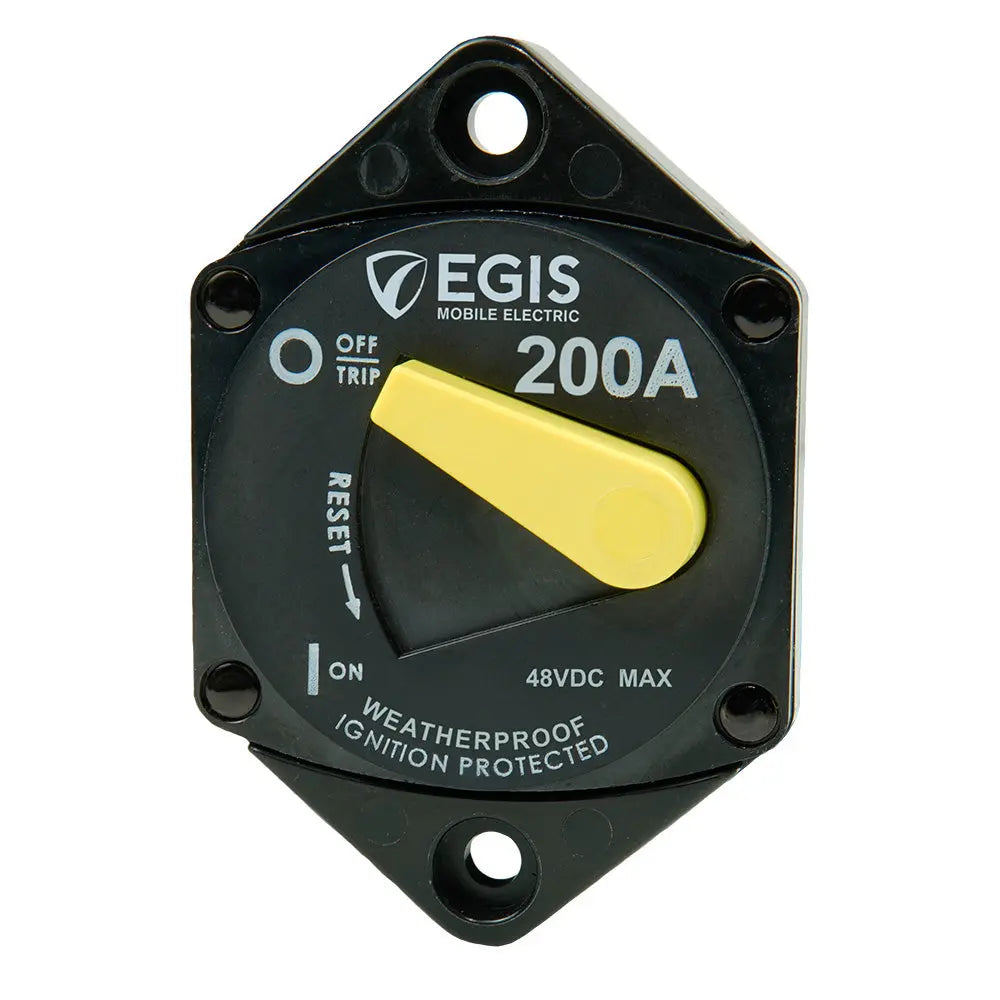

Egis Mobile Electric 4707-200 200A Panel Mount 87 Series Circuit Breaker

200A Panel Mount 87 Series Circuit Breaker

This 200A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 200
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Circular Design

Compatible with circular cutout enables easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 4707-200 200A Panel Mount 87 Series Circuit Breaker offers robust protection for electrical systems in demanding environments. Designed with a weatherproof IP66-rated case, this circuit breaker safeguards against dust and water ingress, ensuring reliable operation across various outdoor and harsh conditions. It provides automatic circuit protection alongside manual switching, allowing for easy load management and circuit isolation during maintenance or emergencies. Its high-voltage capacity supports 48 VDC systems, making it suitable for a wide range of battery bank configurations, including large parallel or series-connected setups. The integrated design enables quick installation into circular cutouts, streamlining panel integration and reducing setup time. This breaker's high cycling endurance of 2,000 cycles at full current ensures long-term durability, while its high interrupt currents (5,000A at 14 VDC and 3,000A at 28 VDC) provide safe disconnection of large power loads. Built with corrosion-resistant stainless steel hardware and serrated flange nuts, the unit is ideal for vibration-prone or corrosive environments, delivering consistent performance over time. The product is backed by a 4-year warranty, reflecting Egis Mobile Electric’s confidence in its durability and quality. Whether used in renewable energy systems, vehicle applications, or large battery banks, this circuit breaker combines safety, reliability, and ease of installation in a compact, circular design. Proudly manufactured in the USA, it meets rigorous standards for outdoor electrical protection and manual load control, making it a dependable choice for professionals requiring high-capacity circuit protection in challenging environments.

Features:

• IP66 sealed against dust and water intrusion ensures reliable circuit protection in harsh environments

• High voltage (48 VDC) rating supports 12, 24, 36, and 48 VDC applications

• High electrical and manual switching endurance delivers 2,000 cycles at full current

• High interrupt current safely protects circuits connected to large battery banks

• Circular design compatible with standard panel cutouts for easy installation

• ON/OFF high visibility controls for convenient operation

• Corrosion and vibration-resistant stainless steel hardware and serrated flange nuts

• Manufactured in the USA with high-quality components

• 4-year warranty underscores product durability and manufacturer confidence
