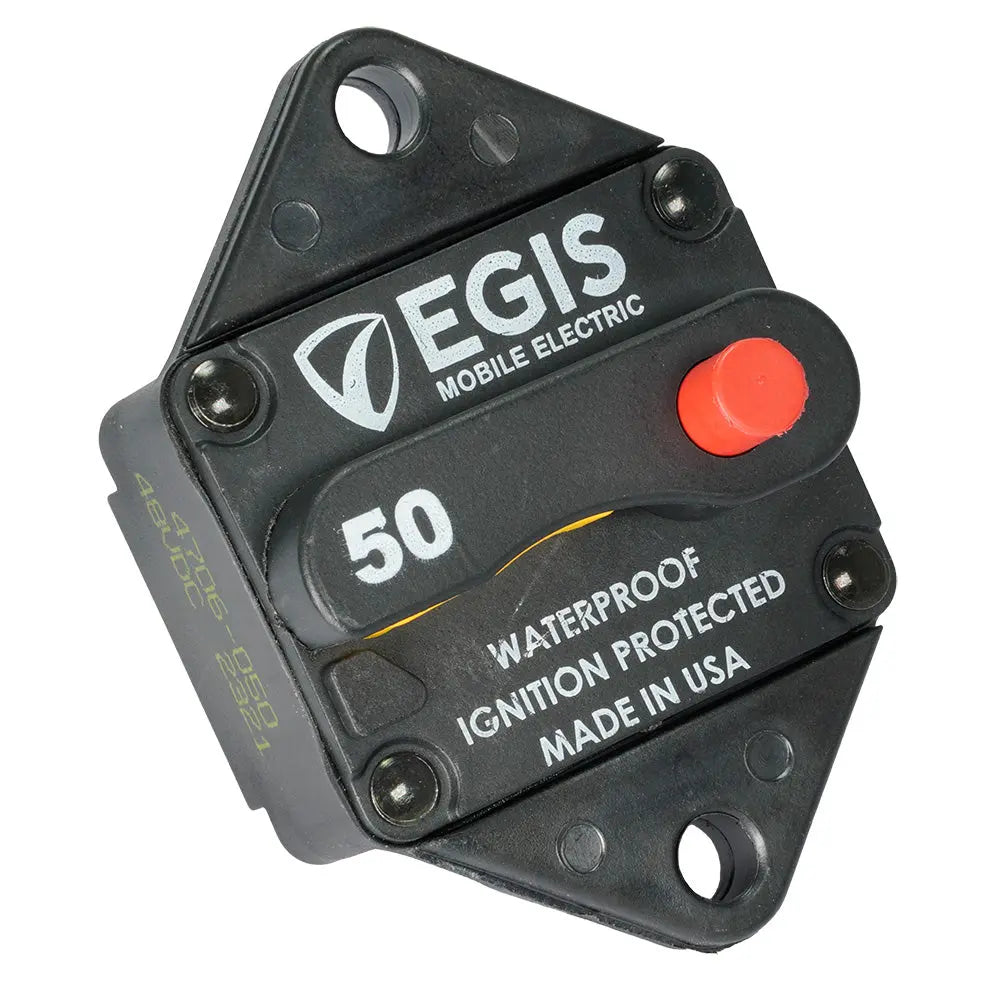

Egis Mobile Electric 50A Panel Mount Circuit Breaker - 285 Series for Automotive and Marine Systems

50A Panel Mount Circuit Breaker - 285 Series

This 50A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4 Year Warranty - Egis stands behind their product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 50
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. High temperature rating for all installation locations.

Panel Mount Flange

Provides rear / front panel installation options.

Stainless Steel Hardware / KEPS Locking Nuts

Corrosion and vibration resistant for harsh environment applications.

Proudly Made in the USA

Made in the USA of high quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 50A Panel Mount Circuit Breaker - 285 Series provides reliable over-current protection for electrical systems in automotive, marine, and off-grid applications. Designed to prevent wire insulation damage caused by short circuits and overloads, this circuit breaker ensures safety and longevity of your electrical setup. Its compact panel mount design allows for flexible installation options, whether on the front or rear of panels, making it ideal for space-constrained environments. The breaker features a sealed design against dust and water ingress, ensuring consistent performance even in harsh conditions. With a high voltage rating of up to 48 Vdc, it supports 12, 24, 36, and 48 Vdc systems, offering a safer alternative to fuses by providing quick manual control and circuit protection in a single unit. The high cycling endurance of 6,000 operations at full current ensures durability over extended use, while the high interrupt current capacity protects large battery banks and heavy loads efficiently. Constructed with stainless steel hardware and KEPS locking nuts, this circuit breaker is resistant to corrosion and vibration, making it suitable for demanding environments. It also features high-visibility ON/OFF controls for ease of operation and monitoring. Manufactured in the USA with high-quality components, the Egis 285 Series circuit breaker is backed by a 4-year warranty, reflecting the manufacturer's confidence in its performance and reliability. Whether used for battery management, load switching, or circuit isolation, this breaker delivers robust protection and convenient manual control, ensuring your electrical systems operate safely and efficiently.

Features:

• Sealed against dust and water ingress to ensure long-term reliability

• Supports 12 and 24 Vdc applications with high protection for 36 and 48 Vdc systems

• High electrical and manual switching endurance with 6,000 cycles at full current

• High interrupt current capacity for large battery banks and heavy loads

• Panel mount flange for flexible installation options

• High visibility ON/OFF controls for easy operation

• Corrosion and vibration resistant stainless steel hardware and KEPS locking nuts

• Made in the USA with high-quality components
