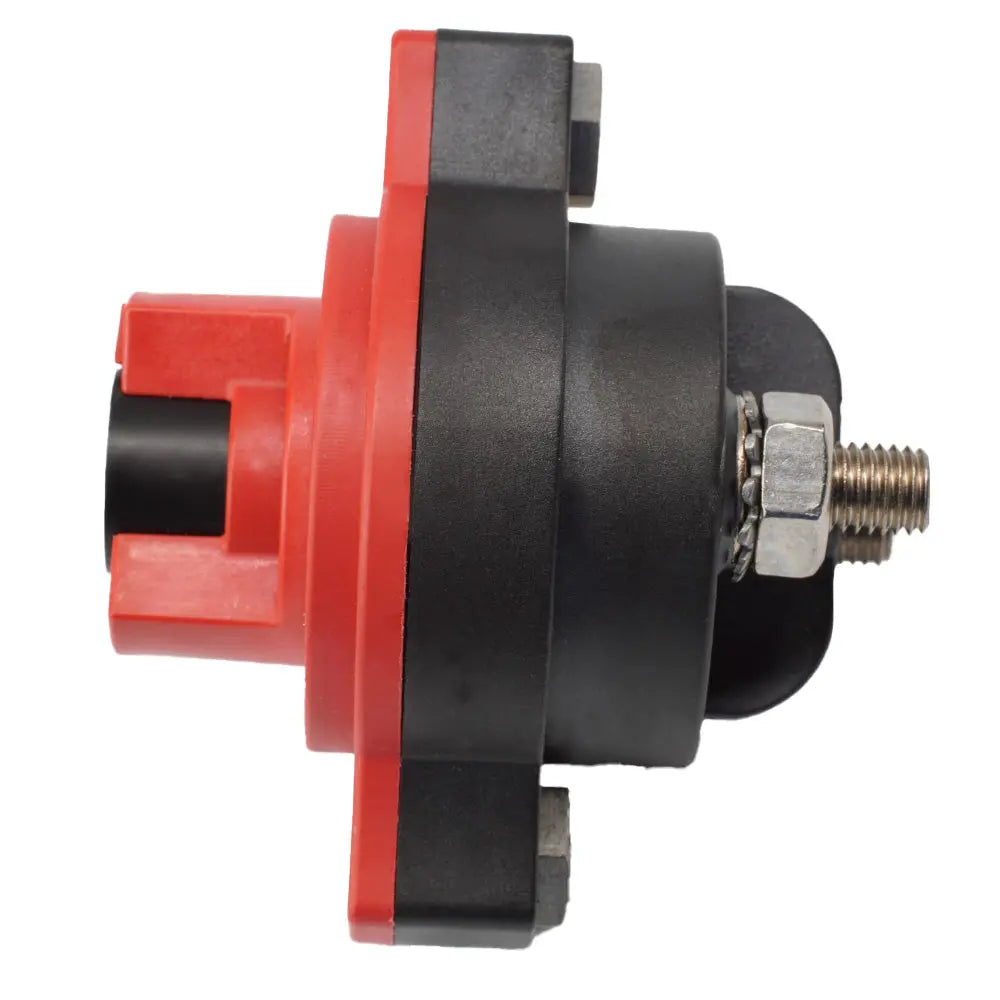

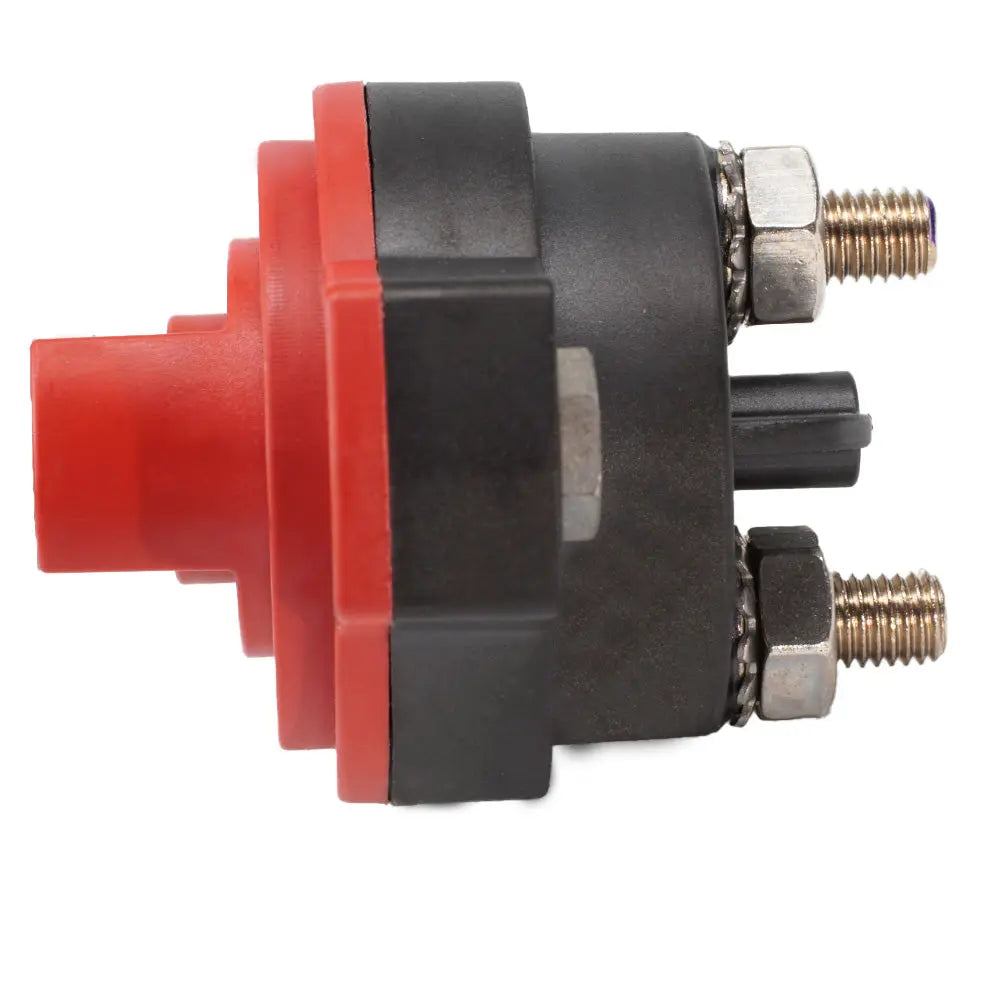

Egis Mobile Electric 50A Panel Mount Mini Circuit Breaker with Integrated Disconnect Switch

50A Panel Mount Mini Circuit Breaker

This 50A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 50
• Max Voltage: 42
• CE Marked: Yes
• Interrupt Current @14 VDC (Amps): 3,000
• Cycle Switching Endurance: 3,000
• Ingress Protection Rating: IP66

Focal Features

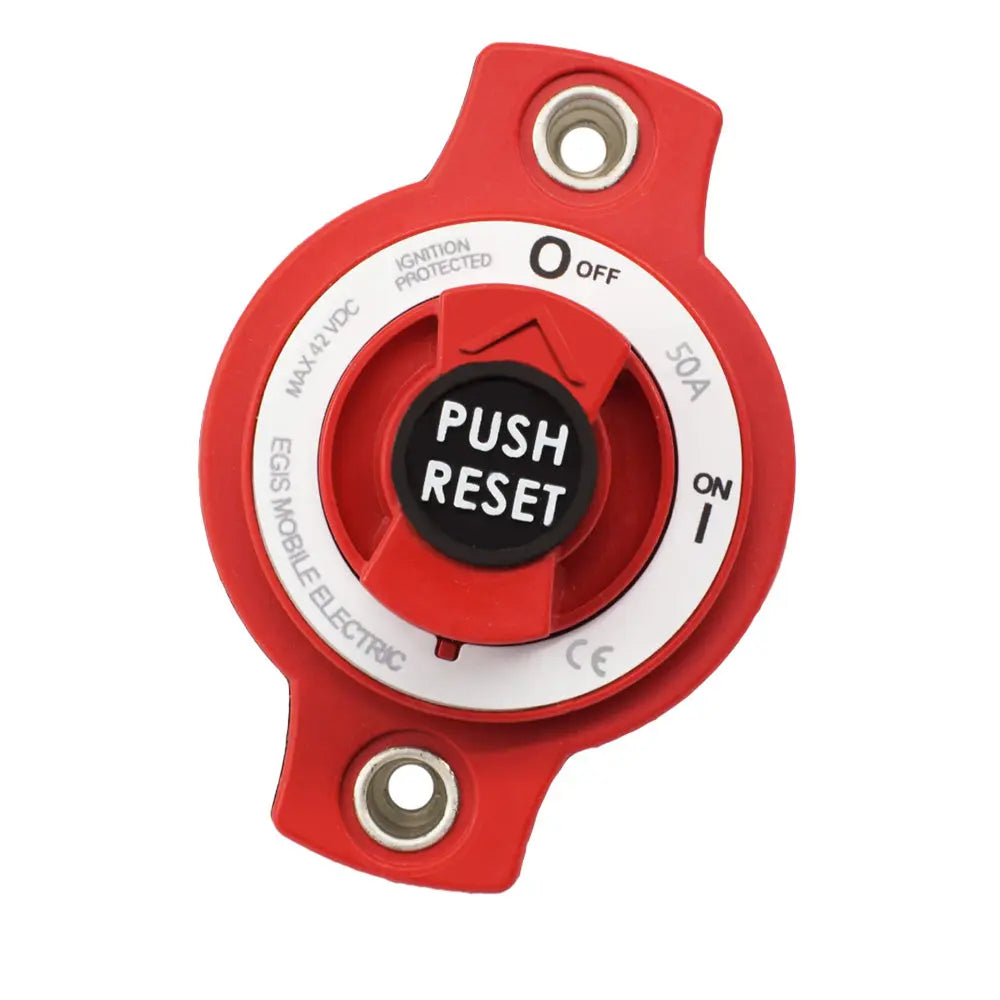

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

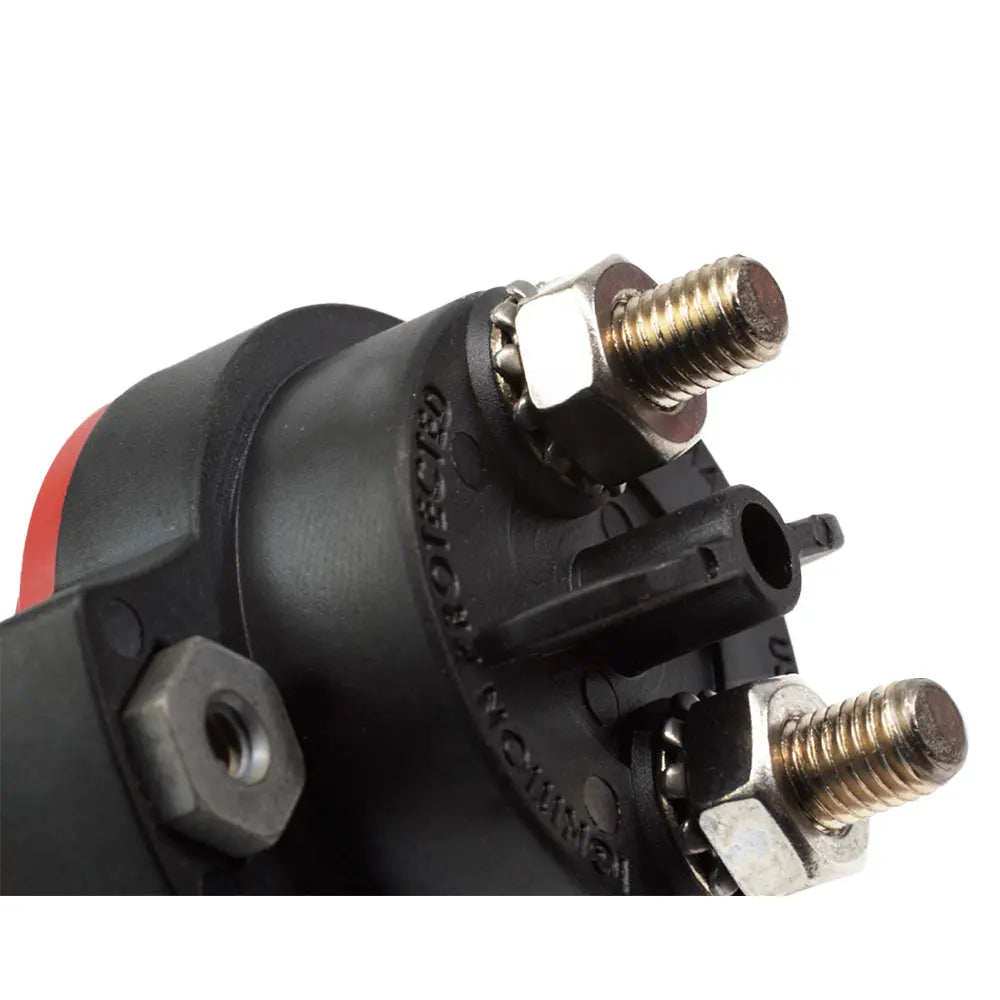

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.

Compact Size

Fit more circuit switching/protection on a smaller panel!

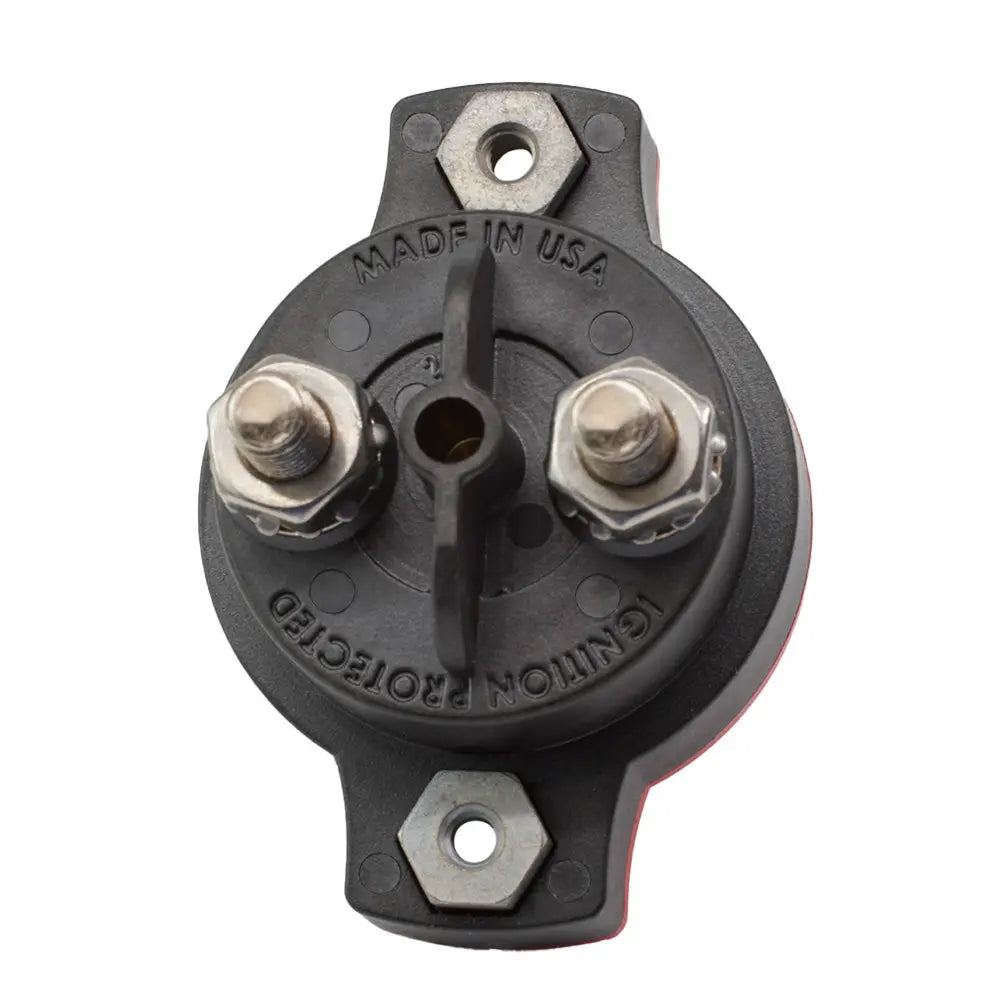

Proudly Made in the USA

Made in the USA of high-quality components.

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 50A Panel Mount Mini Circuit Breaker (Part Number: 4701-50) offers a reliable and compact solution for circuit protection and switching in various electrical systems. Designed specifically for trolling motor applications, this breaker combines automatic circuit protection with manual ON/OFF switching, ensuring both safety and convenience in a single device. Its robust construction and high current capacity make it ideal for protecting electrical circuits from short circuits and over-current loads, preventing wire insulation damage and potential system failures. The integrated disconnect switch allows for easy circuit isolation during maintenance or emergency situations, providing a versatile tool for both installation and operational control.

Constructed with durability in mind, the Egis 50A circuit breaker features an IP66 rated enclosure that protects against dust and water intrusion, ensuring long-term performance even in harsh environments. Its 42 Vdc rating supports a range of voltage applications, including 12, 24, and 36V DC systems, making it suitable for trolling motors, large battery banks, and other high-current DC circuits. The device boasts high electrical and manual switching endurance, capable of withstanding up to 2,000 cycles at full load, and a high interrupt current capacity of 3,000 amps at 14 VDC, providing enhanced safety for large power systems. Designed with stainless steel self-locking hardware, it resists corrosion and vibrations, further extending its service life in demanding conditions.

This mini circuit breaker features an easy-to-operate rotary switch with clear ON/OFF recognition, a compact size that allows for more circuit protection on smaller panels, and weatherproof construction suitable for diverse installation locations. Made in the USA from high-quality components, the Egis 50A circuit breaker is both reliable and dependable. Its ignition protection safeguards against accidental shorts from positive terminals to grounded surfaces, adding an extra layer of safety. Backed by a 4-year warranty, this breaker delivers peace of mind for marine, automotive, and industrial applications, ensuring durable and effective circuit management in challenging environments.

Features:

• IP66 sealed enclosure resistant to dust and water intrusion

• Supports 12, 24, and 36V DC applications with a 42 Vdc rating

• High electrical and manual switching endurance: 2,000 cycles at full current

• High interrupt current capacity of 3,000 amps at 14 VDC

• Easy-to-operate rotary ON/OFF switch for quick circuit control

• Stainless steel self-locking hardware for corrosion and vibration resistance

• Weatherproof construction suitable for harsh environments

• Compact size allowing more circuit protection in limited space

• Made in the USA with high-quality components

• Ignition protected to prevent accidental shorts
