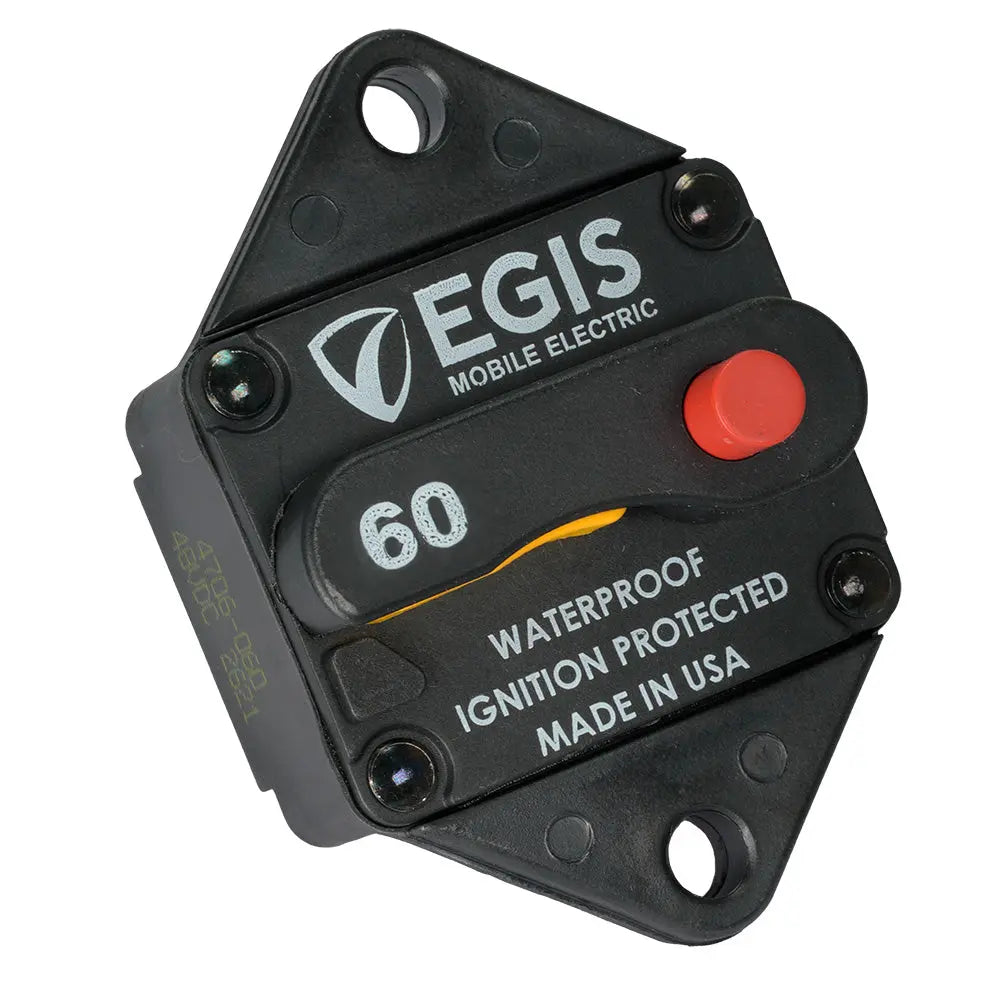

Egis Mobile Electric 60A Panel Mount Circuit Breaker - 285 Series for Reliable Over-Current Protection

60A Panel Mount Circuit Breaker - 285 Series

This 60A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
• High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its products ability to meet the users needs

Specifications:

• Continuous Current Amps: 60
• Max Voltage: 48
• Cycling Endurance: 6,000
• Interrupt Current @16 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Panel Mount Flange

Provides rear/front panel installation options.

Stainless Steel Hardware / KEPS Locking Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 60A Panel Mount Circuit Breaker from the 285 Series is a durable and versatile device designed to safeguard electrical systems in various applications. This circuit breaker is engineered to prevent damage caused by short circuits and over-current loads, protecting wiring insulation and ensuring system longevity. Its robust construction and sealed design make it suitable for demanding environments where dust, water, and moisture ingress are concerns, providing reliable operation over the lifetime of your installation.
Designed for ease of use, this breaker features high visibility ON/OFF controls that facilitate quick switching and status recognition. The panel mount flange allows flexible installation options, whether on the front or rear of panels, making it ideal for tight or complex setups. Crafted with stainless steel hardware and KEPS locking nuts, the breaker resists corrosion and vibration, making it suitable for harsh environments and mobile applications. The high-temperature rating ensures reliable performance even in elevated ambient temperatures, while its IP67 ingress protection rating guarantees dust-tight and waterproof operation.
This circuit breaker supports 12 and 24 VDC systems with ease and offers enhanced protection for 36 and 48 VDC systems, surpassing traditional fuse-based solutions. It features a high electrical and manual switching endurance of 6,000 cycles at full current, providing long-term operational reliability. With an interrupt current capacity of up to 5,000 amps at 16 VDC and 3,000 amps at 28 VDC, it can safely disconnect large battery banks and power loads, ensuring safety and system integrity.
Manufactured in the USA with high-quality components, the Egis 60A Panel Mount Circuit Breaker comes with a 4-year warranty, reflecting the manufacturer's confidence in its durability and performance. Whether used in automotive, marine, or renewable energy systems, this breaker provides critical circuit protection while supporting maintenance and system management tasks. Its sealed, rugged design and high current ratings make it a dependable choice for ensuring the safety and efficiency of your electrical setup, backed by Egis Mobile Electric's commitment to quality and reliability.

Features:

• Sealed against dust and water intrusion for reliable operation in harsh environments

• Supports 12V and 24V DC applications with improved protection for 36V and 48V systems

• High electrical and manual switching endurance of 6,000 cycles at full current

• High interrupt current capacity up to 5,000 amps at 16 VDC and 3,000 amps at 28 VDC

• Panel mount flange for flexible installation options

• Corrosion and vibration-resistant stainless steel hardware and KEPS locking nuts

• High-temperature rated for demanding installation locations

• IP67 ingress protection rating for dust-tight and waterproof operation

• Made in the USA with premium components and a 4-year warranty
