Egis Mobile Electric 60A Panel Mount Mini Circuit Breaker - Waterproof Circuit Protection and Switch

60A Panel Mount Mini Circuit Breaker

This 60A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.

Applications:

• Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
• Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
• High electrical and manual switching endurance delivers 2,000 cycles at full current
• High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 60
• Max Voltage: 42
• CE Marked: Yes
• Interrupt Current @14 VDC (Amps): 3,000
• Cycle Switching Endurance: 3,000
• Ingress Protection Rating: IP66

Focal Features

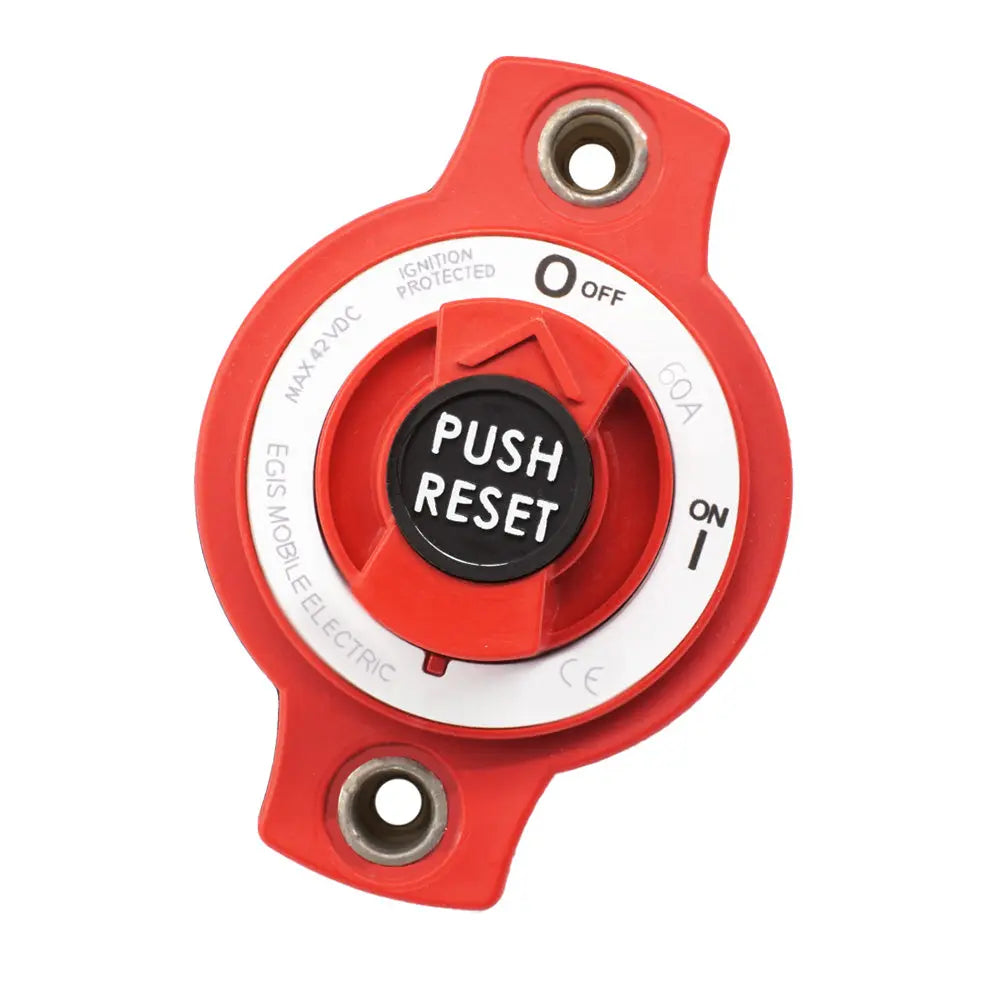

Easy ON/OFF Rotary Switch

Easy to operate and visually recognize switch position.

Stainless Steel Self- Locking Hardware

Corrosion and vibration resistance for harsh environment applications.

Weatherproof Construction

Sealed against dust and moisture penetration. High temp rated for all installation locations.

Compact Size

Fit more circuit switching/protection on a smaller panel!

Proudly Made in the USA

Made in the USA of high-quality components.

Ignition Protected

Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 60A Panel Mount Mini Circuit Breaker is a versatile component designed for reliable circuit protection and switching in demanding environments. This compact device combines a circuit breaker and disconnect switch in one unit, making it ideal for trolling motor applications and other DC systems. Its automatic circuit protection feature safeguards electrical circuits from short circuits and overloads, preventing wire insulation damage and potential system failures. The integrated manual ON/OFF rotary switch allows for easy circuit isolation and maintenance, providing a convenient way to control power without disconnecting batteries or other power sources.
Constructed with durability in mind, the Egis 4701-60 features an IP66 rating, ensuring protection against dust and water intrusion for long-term reliability. Its weatherproof design and stainless steel self-locking hardware make it suitable for harsh environments, resisting corrosion and vibration. The device supports a maximum voltage of 42 VDC and is rated for continuous currents up to 60 amps, with high interrupt capacity to safely handle large battery banks. With a cycle switching endurance of 3,000 cycles and a manual switching endurance of 2,000 cycles, it provides long-lasting performance for demanding applications.
The compact size of this circuit breaker allows for more efficient use of panel space, and its high-temperature rating ensures it can operate effectively in various installation locations. Proudly manufactured in the USA, the Egis 4701-60 is built with high-quality components to meet industry standards. It is also ignition protected, reducing the risk of accidental shorts near positive terminals. The device's design emphasizes safety, durability, and ease of use, making it a reliable choice for marine, RV, and other vehicle electrical systems.

Features:

• Easy ON/OFF rotary switch for simple operation and clear position recognition

• Stainless steel self-locking hardware for corrosion and vibration resistance

• Weatherproof construction sealed against dust and moisture for reliable long-term performance

• Compact size allows installation in limited space environments

• Made in the USA with high-quality components ensuring durability and reliability

• Ignition protected design prevents accidental shorts near positive terminals

• Supports 12, 24, and 36V DC applications, ideal for trolling motor switching

• High interrupt current capacity safely handles large battery banks

• Enhanced manual and electrical switching endurance for extended use
