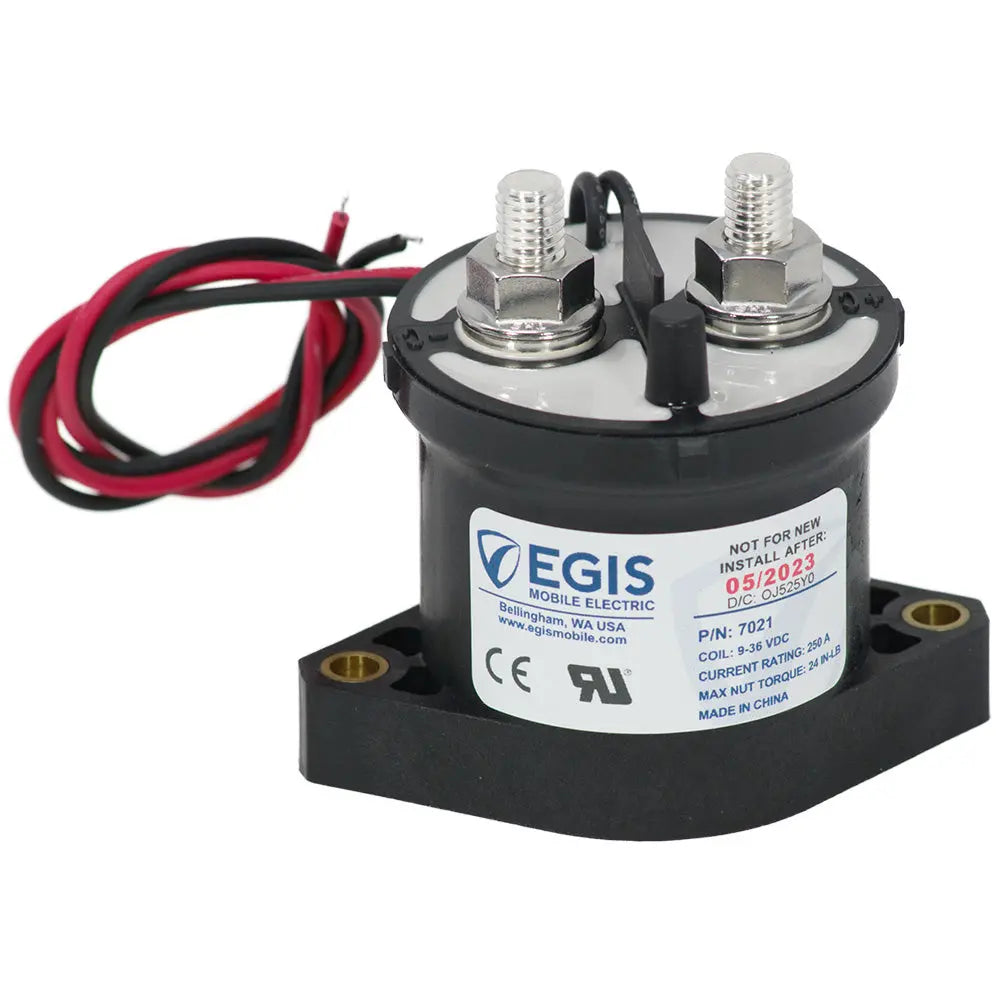

Egis Mobile Electric 7021 250A 12/24V Contactor for High-Current Remote Switching

Contactor 250A, 12/24V

This 250A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads.

Applications:

• Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust moisture Intrusion.
• High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.

Features:

• Ignition is protected and safe for installation in closed compartments with potential explosive gases
• High Electrical Switching Endurance delivers 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V
• High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc)
• Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware.
• 4 Year Industry Leading Warranty

Specifications:

• Continuous Current (Amps): 250/500
• Operation Control Voltage: 9-36 VDC
• Ingress Protection: IP67/IP69K
• Ignition Protection: ISO-8846 / UL 1500
• Electrical Endurance Rating (Cycles): 1,000,000
• Minimum Operate Temp. (Deg C): -40 C
• Max Operate Temp. (Deg C): 85

Focal Features:

Sealed Enclosure

Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.

18-8 Stainless Steel Self-Locking Hardware

Resists corrosion and ensures long-term connection reliability with premium hardware.

High Interrupt Capability

Safely able to open in a locked starter situation up to 1,500 A @14 Vdc.

Easy Mounting

Reinforced mounting holes provide secure installation and easy attachment for the installer.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 7021 250A contactor is engineered to provide reliable remote switching for high-current applications in automotive, industrial, and marine environments. Designed with a hermetically sealed enclosure, this contactor offers protection against dust, moisture, and harsh conditions, ensuring flawless operation over the lifespan of your installation. Its robust construction and high-temperature rated materials make it suitable for engine compartments and other demanding environments, reducing the need for maintenance and replacement. With a control voltage range of 9-36 VDC, it supports both 12V and 24V systems, while its high contact voltage rating allows for switching voltages up to 48V or higher, making it versatile for various applications.

Features:

• Sealed enclosure: Hermetically sealed against dust and moisture intrusion, suitable for harsh environments

• High electrical endurance: Capable of 6,000 cycles at 250A/450V and 100,000 cycles at 250A/14V for long-lasting performance

• High interrupt current capability: Safely opens in locked starter situations up to 1,500 A at 14 VDC

• Ignition protection: Suitable for installation in compartments with potential explosive gases, compliant with ISO-8846 and UL 1500 standards

• Corrosion-resistant hardware: 18-8 stainless steel self-locking hardware ensures long-term reliability

• Easy mounting: Reinforced mounting holes facilitate secure and straightforward installation

• High-temperature durability: Designed to operate from -40°C to 85°C, suitable for various environmental conditions
