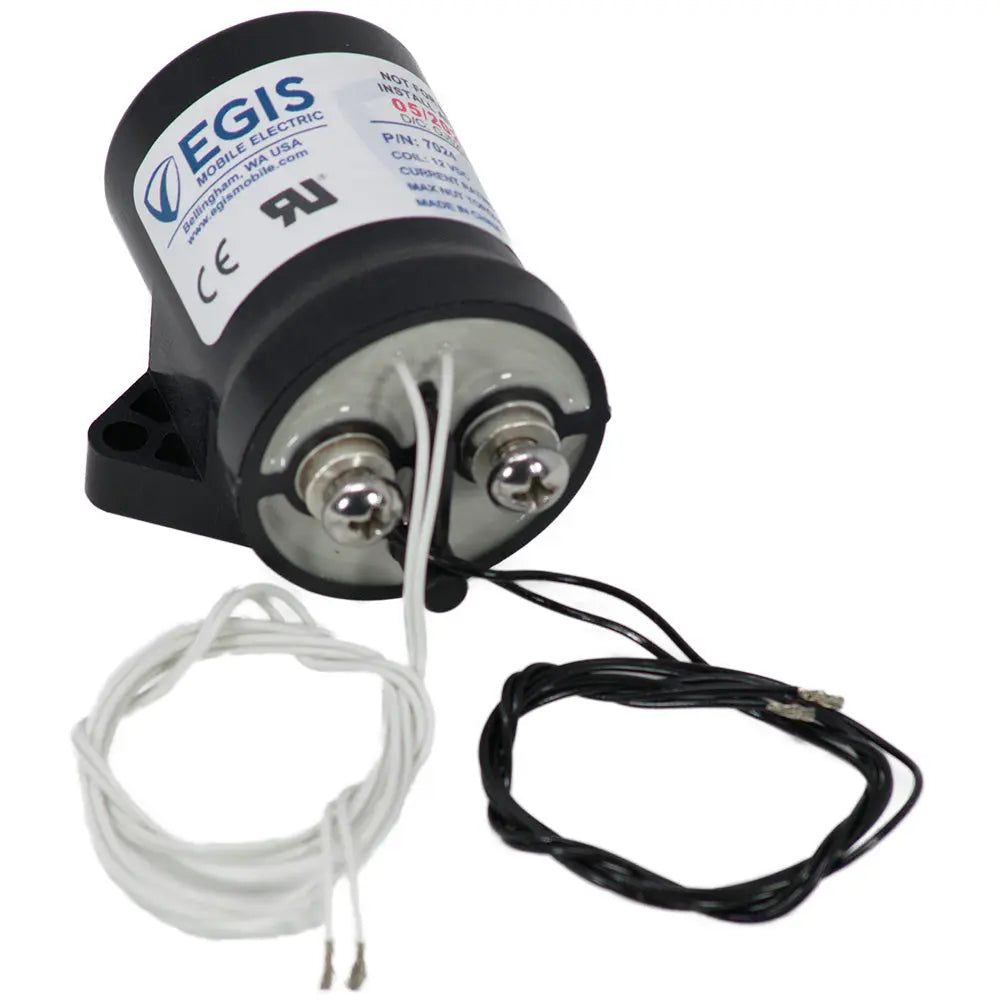

Egis Mobile Electric 7026 100A 24V Contactor with Auxiliary Contacts for Heavy-Duty Remote Switching

Contactor 100A, 24V with Aux Contacts

This 100A Egis contactor is perfect for reducing installation costs and weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engines and auxiliary loads. Also, this contactor has a side mount.

Applications:

• Ensure flawless operation for the life of the installation with a hermetically sealed contactor sealed against dust moisture Intrusion.
• High Contact Voltage Rating easily supports 12 or 24 Vdc control voltage applications while also supporting higher switching voltage applications up to 48 V and well beyond.
• Get positive confirmation of the relay on/off state with optional auxiliary contacts that support remote status indication.

Features:

• Ignition is protected and safe for installation in closed compartments with potential explosive gases
• High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V
• High Interrupt Current Capability - safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)
• Bullet-proof Construction - sealed device, high-temperature materials for engine compartment applications, and stainless self-locking hardware.
• 4 Year Industry Leading Warranty

Specifications:

• Continuous Current (Amps): 100
• Operation Control Voltage: 16-28 VDC
• Ingress Protection: IP67/IP69K
• Ignition Protection: ISO-8846 / UL 1500
• Minimum Operate Temp. (Deg C): -40 C
• Max Operate Temp. (Deg C): 85

Focal Features:

Sealed Enclosure

Hermetically sealed against dust and moisture penetration. The high temperature rating for all installation locations.

18-8 Stainless Steel Self-Locking Hardware

It resists corrosion and ensures long-term connection reliability with premium hardware.

Easy Mounting

Reinforced mounting holes provide secure installation and easy attachment for the installer.

Remote Status Support

Optional auxiliary contacts that support remote status indication.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 7026 contactor is a robust 100A switch designed for high-current applications in demanding environments. Its hermetically sealed enclosure provides protection against dust and moisture, making it ideal for engine compartments and industrial settings where reliability is critical. The contactor's high-temperature rated materials ensure safe operation even in extreme conditions, with an ingress protection rating of IP67/IP69K for maximum durability.

Designed for remote control applications, this contactor supports control voltages from 16 to 28 VDC and can handle switching voltages up to 48 V, making it suitable for a wide range of electrical systems. Its high electrical switching endurance ensures long-term operation, with capabilities of 6,000 cycles at 100A / 350V and up to 100,000 cycles at 14V / 100A. The device features high interrupt current capacity, safely opening in situations where high inrush currents are present, such as locked starter scenarios with currents up to 1,250 A.

Constructed with corrosion-resistant 18-8 stainless steel hardware and reinforced mounting points, the Egis 7026 contactor offers easy installation and long-term reliability. It includes optional auxiliary contacts to support remote status indication, enhancing system monitoring and control. The sealed design, combined with high-temperature materials and stainless hardware, ensures reliable operation over years of service. A four-year industry-leading warranty adds further assurance of product durability and performance.

This contactor complies with ignition protection standards ISO-8846 and UL 1500, making it safe for use in environments with potential explosive gases. Its wide operating temperature range from -40°C to 85°C allows versatile installation in various climates. Whether for automotive, industrial, or marine applications, the Egis 7026 offers a dependable solution for remote high-current switching needs.

Features:

• Hermetically sealed enclosure protects against dust and moisture intrusion

• High-temperature rated materials ensure safe operation in extreme conditions

• Supports control voltages from 16 to 28 VDC and switching voltages up to 48 V

• High electrical switching endurance: 6,000 cycles at 100A / 350V and 100,000 cycles at 14V / 100A

• Handles high interrupt currents up to 1,250 A at 14 VDC for safe disconnection in locked starter scenarios

• Corrosion-resistant 18-8 stainless steel hardware for long-term reliability

• Reinforced mounting holes facilitate secure installation

• Optional auxiliary contacts for remote status indication

• Compliance with ISO-8846 and UL 1500 ignition protection standards

• Wide operating temperature range from -40°C to 85°C for versatile applications
