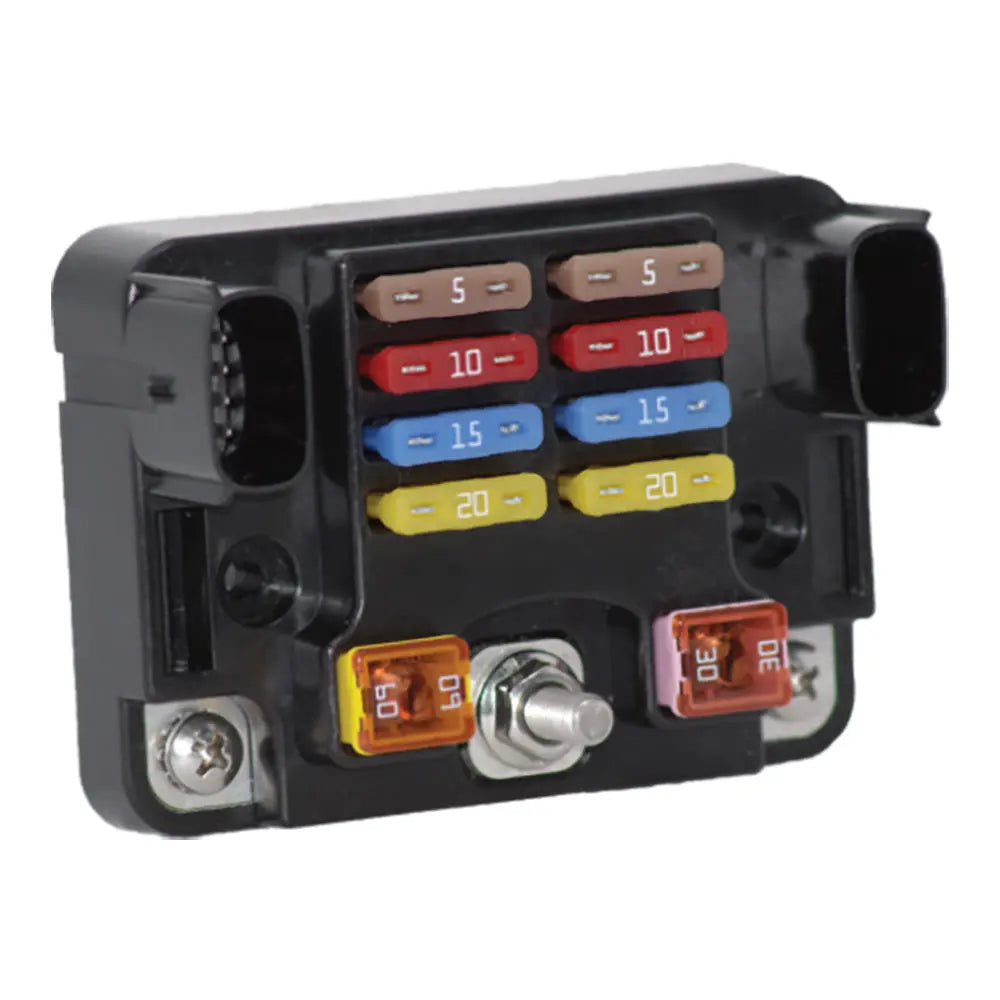

Egis Mobile Electric 8 + 2 Fuse Block with High-Amp and Low-Amp Circuit Protection

8 + 2 Fuse Block

Applications:

• Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
• Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
• Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product

Features:

• Two (2) High-Amp (20-50A) Outputs Support All Necessary Circuit Protection Needs in One Product
• Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
• 4 Year Industry Leading Warranty

Specifications:

• Total Continuous Current (AMPS): 200 AMPS
• Max Current Per ATO Fuse (AMPS): 22 AMPS
• Voltage Range (V DC): 8-36V DC
• Max Current Per LP J Case Fuse (AMPS): 50 AMPS
• Max Current Per 4 Pos MX-150 (AMPS): 50 AMPS
• Max Wire Gauge, MX-150 Connector: 14 AWG

The Egis Mobile Electric 8 + 2 Fuse Block offers a compact and efficient solution for circuit protection in automotive and industrial applications. Designed to combine low amp and high amp fuse protection in a single unit, this fuse block streamlines wiring and reduces installation time and space requirements. Its dual MX-150 connectors support both low-amp outputs and high-amp outputs ranging from 20 to 50 amps, meeting diverse circuit protection needs with ease. This versatile fuse block is suitable for protecting add-on circuits from accidental shorts to frame ground or battery negative, as well as overload events, helping to safeguard your electrical system effectively. Built with durability in mind, it features a 4-year industry-leading warranty, ensuring long-lasting performance in demanding environments. The fuse block supports a total continuous current of up to 200 amps, with maximum current ratings of 22 amps for ATO fuses and 50 amps for LP J case and MX-150 connectors, accommodating a wide range of circuit loads. It is compatible with DC voltage ranges from 8 to 36 volts and supports wiring gauges up to 14 AWG for reliable connections. Whether used in automotive, marine, or industrial applications, the Egis 8 + 2 Fuse Block provides a robust, space-saving, and cost-effective solution for comprehensive circuit protection needs.

Features:

• Dual high-amp (20-50A) outputs support all necessary circuit protection needs in one product

• Protects circuits from accidental short circuits to frame ground or battery negative, and overload events

• Includes a 4-year industry-leading warranty
